10-Port, Panel Sector Antenna ( 690 - 2690 MHz )

₹0.00

10-Port Panel Sector Antenna (690–2690 MHz)

Overview:

This 10-port panel sector antenna delivers broad multi-band coverage across 690–2690 MHz with uniform radiation patterns and low inter-port coupling. Engineered for macro cell and small cell deployments, the antenna supports dense multi-operator installations, MIMO, and future-ready capacity upgrades while maintaining compact form factor and rugged environmental protection.

Key Features :

  • Frequency range: 690–2690 MHz (covers LTE bands and key sub-1 GHz and mid-band allocations)

  • 10 independent ports: configurable for multiple carriers, operators, and MIMO layers

  • Sector beamwidth: optimized 65° horizontal sector pattern (typical) for tight sectorization and spectral reuse

  • Dual-polarized elements across ports to support cross-polar MIMO and improved multipath resilience

  • Low port-to-port isolation loss: maintains MIMO performance and reduces interference between carriers

  • Gain: optimized across bands to balance coverage and capacity (typical gain varies by sub-band)

  • Lightweight, low-profile radome for simplified rooftop or tower mounting

  • IP65/IP66-rated enclosure for outdoor environments; UV-stable materials for long-term exposure

  • Wide operating temperature range for reliable performance in harsh climates

  • Integrated mounting brackets and adjustable tilt for precise alignment

  • Easy field commissioning: color-coded ports and clear labeling for fast cable management

10-Port Panel Sector Antenna (690–2690 MHz)

Overview:

This 10-port panel sector antenna delivers broad multi-band coverage across 690–2690 MHz with uniform radiation patterns and low inter-port coupling. Engineered for macro cell and small cell deployments, the antenna supports dense multi-operator installations, MIMO, and future-ready capacity upgrades while maintaining compact form factor and rugged environmental protection.

Key Features :

  • Frequency range: 690–2690 MHz (covers LTE bands and key sub-1 GHz and mid-band allocations)

  • 10 independent ports: configurable for multiple carriers, operators, and MIMO layers

  • Sector beamwidth: optimized 65° horizontal sector pattern (typical) for tight sectorization and spectral reuse

  • Dual-polarized elements across ports to support cross-polar MIMO and improved multipath resilience

  • Low port-to-port isolation loss: maintains MIMO performance and reduces interference between carriers

  • Gain: optimized across bands to balance coverage and capacity (typical gain varies by sub-band)

  • Lightweight, low-profile radome for simplified rooftop or tower mounting

  • IP65/IP66-rated enclosure for outdoor environments; UV-stable materials for long-term exposure

  • Wide operating temperature range for reliable performance in harsh climates

  • Integrated mounting brackets and adjustable tilt for precise alignment

  • Easy field commissioning: color-coded ports and clear labeling for fast cable management

Electrical Specifications Table
Electrical Specifications

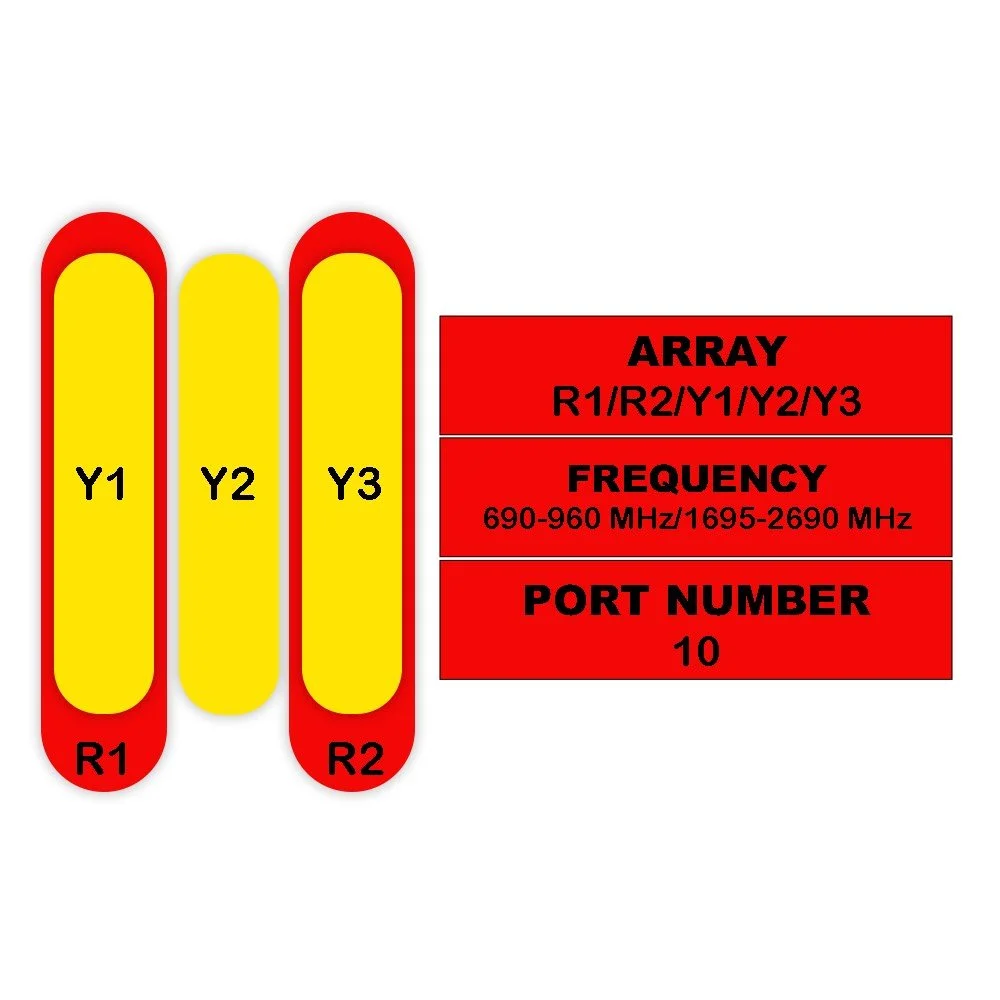

Parameter Unit R1 / R2 (690–960 MHz) Y1 / Y2 / Y3 (1695–2690 MHz)
690-806790-894880-960 1695-18801850-19901920-21702300-24002490-2690
Polarization — ±45°
Gain (Mid Tilt) dBi 16.216.516.8 16.616.917.217.417.4
Gain (All Tilts) dBi 16.0 ±0.516.3 ±0.516.6 ±0.4 16.4 ±0.616.7 ±0.517.0 ±0.517.2 ±0.517.2 ±0.5
Horizontal Beamwidth deg 65 ±4.462 ±3.659 ±4.6 67 ±6.564 ±6.563 ±6.558 ±5.560 ±6.0
Vertical Beamwidth deg 8.8 ±0.57.8 ±0.67.2 ±0.6 6.8 ±0.76.4 ±0.75.9 ±0.75.2 ±0.54.8 ±0.7
Electrical Downtilt deg 2–12
Tilt Accuracy deg <1<1<1 <1<1<1<1<1
Upper Side Lobe (First) dB >16>16>16 >16>16>16>16>16
Upper Side Lobe (Peak to 20°) dB >15>15>15 >15>15>15>15>15
Front-to-Back Ratio ±30° dB >24>25>25 ≥25≥25>25≥26≥26
Cross Polar (Boresight) dB >18>18>18 >16>16>16>17>17
Cross Polar Discrimination dB >8>7.5>6.5 >6>7>7>5>3
Isolation (Cross-Polar) dB >26 >26
Isolation (Port-to-Port) dB >26 (R1/R2), >28 (others) >28
Impedance Ohm 50
VSWR — <1.5
Return Loss dB >14
PIM3 (2×43 dBm) dBc <-153
Lightning Protection — DC Ground
Max Input Power (50°C) W 250 200
Mechanical Specifications Table
Mechanical Specifications
Parameter Sub-Category Unit Value

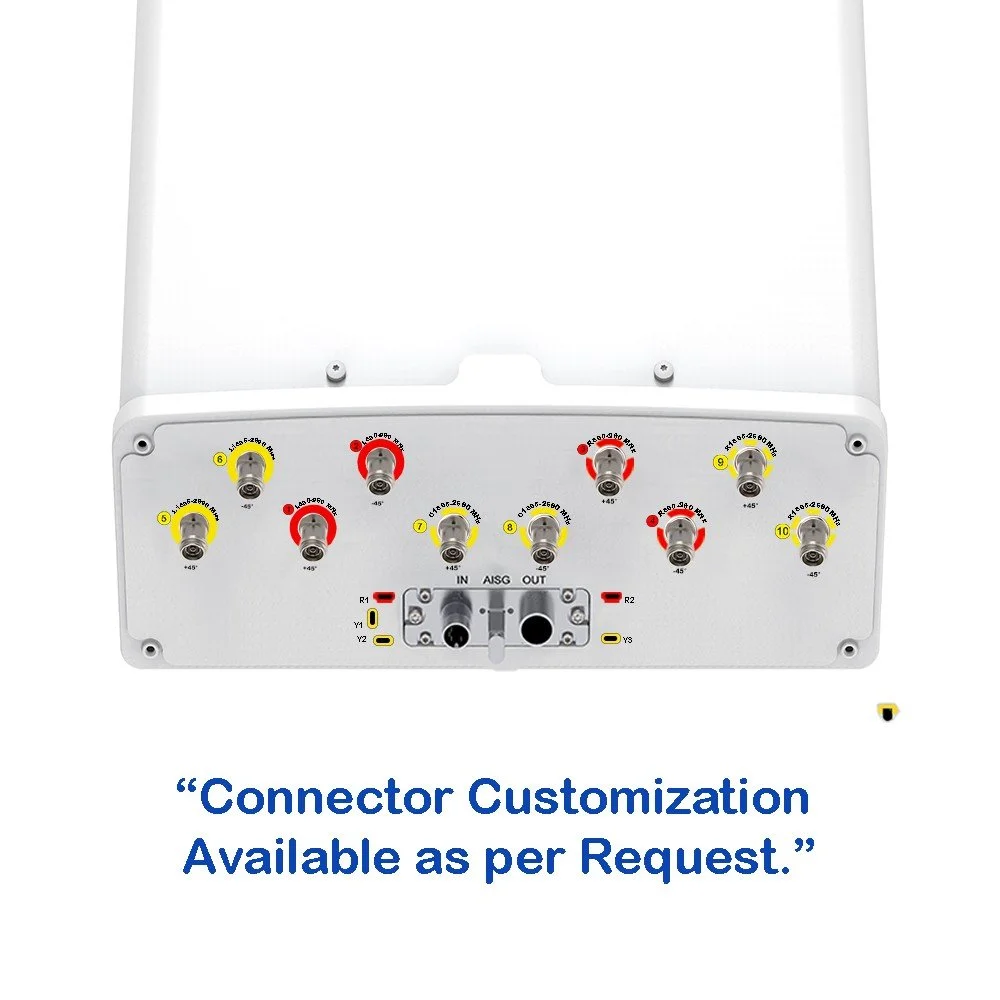

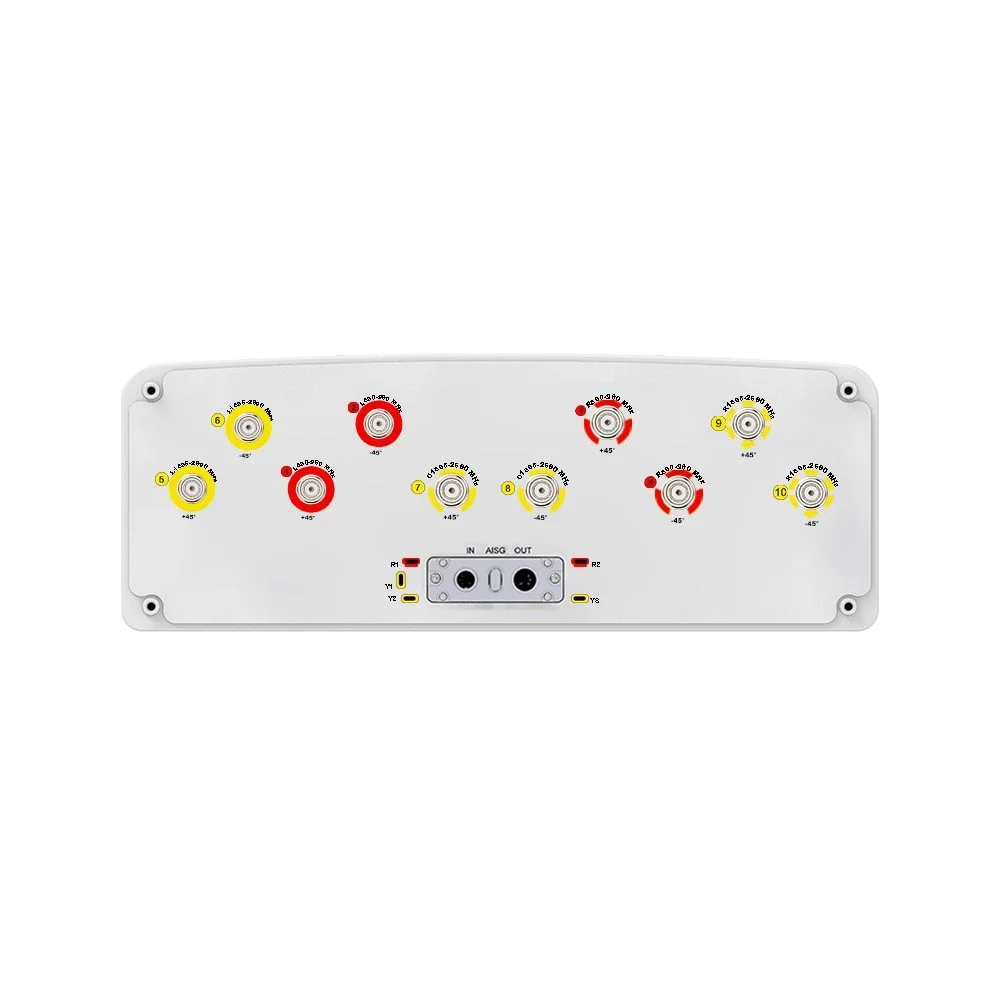

Connector Type — — (10x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

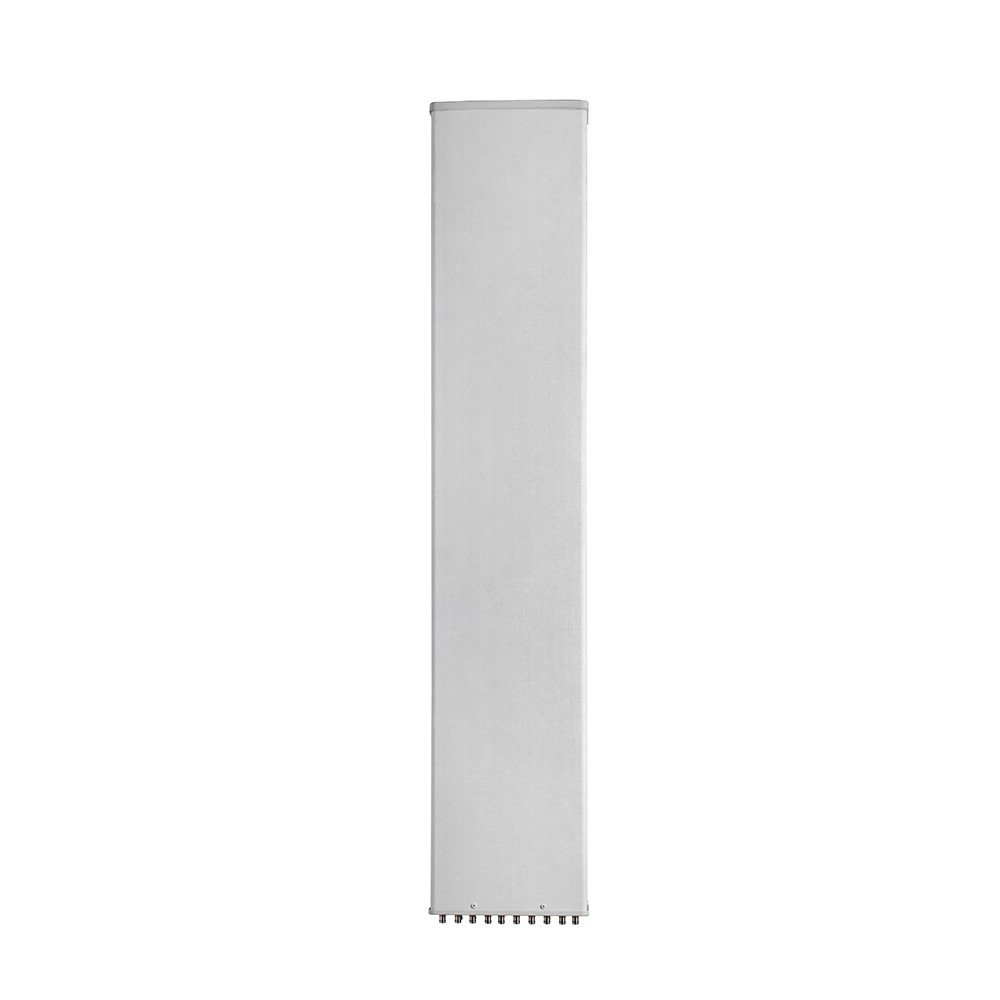

Antenna Dimensions (H × W × D) — mm (in) 2497 × 467 × 167 (98.3 × 18.4 × 6.6)
Antenna Weight Antenna Only kg (lbs) 40 (88.2)
With Clamps kg (lbs) 47.5 (104.7)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load @ 150 km/h Frontal N (lbf) 1080 (242.8)
Rear N (lbf) 1205 (270.9)
Lateral N (lbf) 475 (106.8)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
