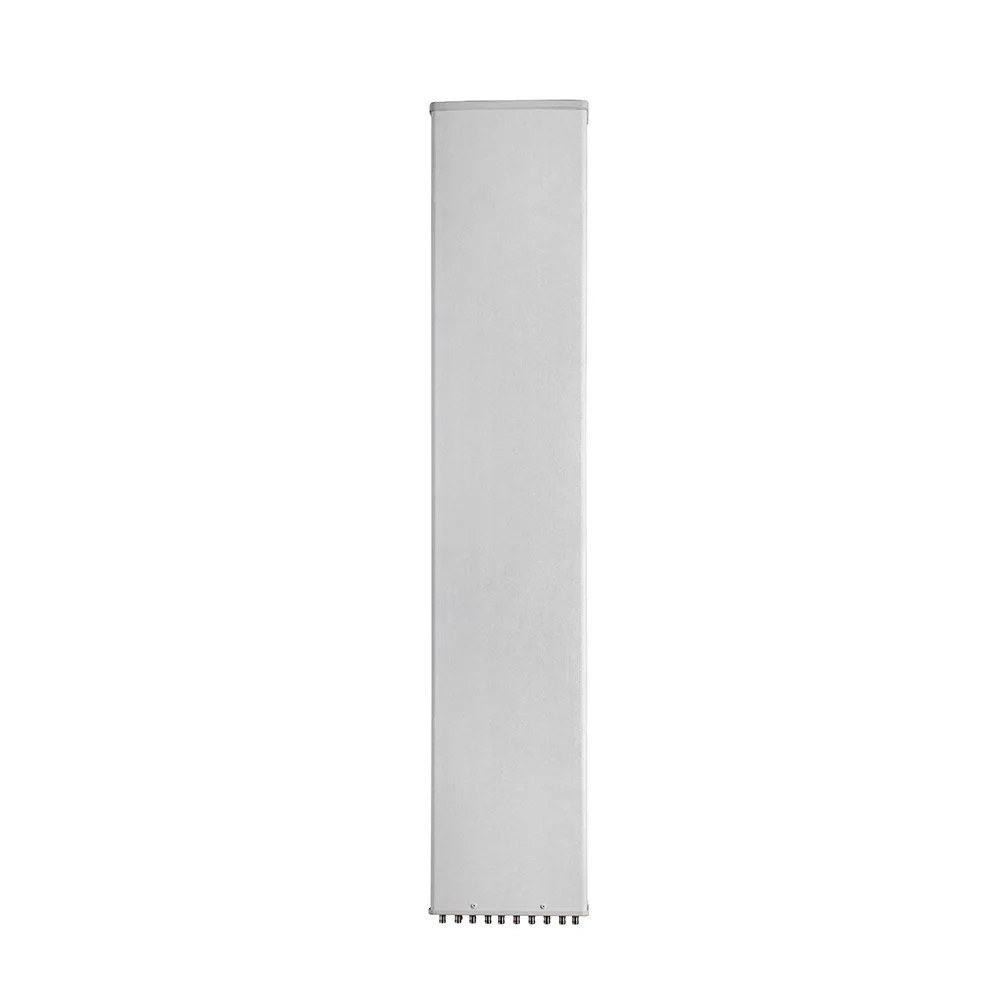

10-Port Panel Sector Antenna (690–2690 MHz)

Overview :

This 10-port panel sector antenna covers the full 690–2690 MHz range, providing high-performance multi-band support for modern cellular deployments. Engineered for dense urban and suburban macro cells, small cell aggregation, and DAS/neutral host environments, the antenna delivers consistent sector coverage, excellent isolation between ports, and reliable performance across low- and mid-band LTE/5G frequencies.

10-Port Panel Sector Antenna (690–2690 MHz)

Overview :

This 10-port panel sector antenna covers the full 690–2690 MHz range, providing high-performance multi-band support for modern cellular deployments. Engineered for dense urban and suburban macro cells, small cell aggregation, and DAS/neutral host environments, the antenna delivers consistent sector coverage, excellent isolation between ports, and reliable performance across low- and mid-band LTE/5G frequencies.

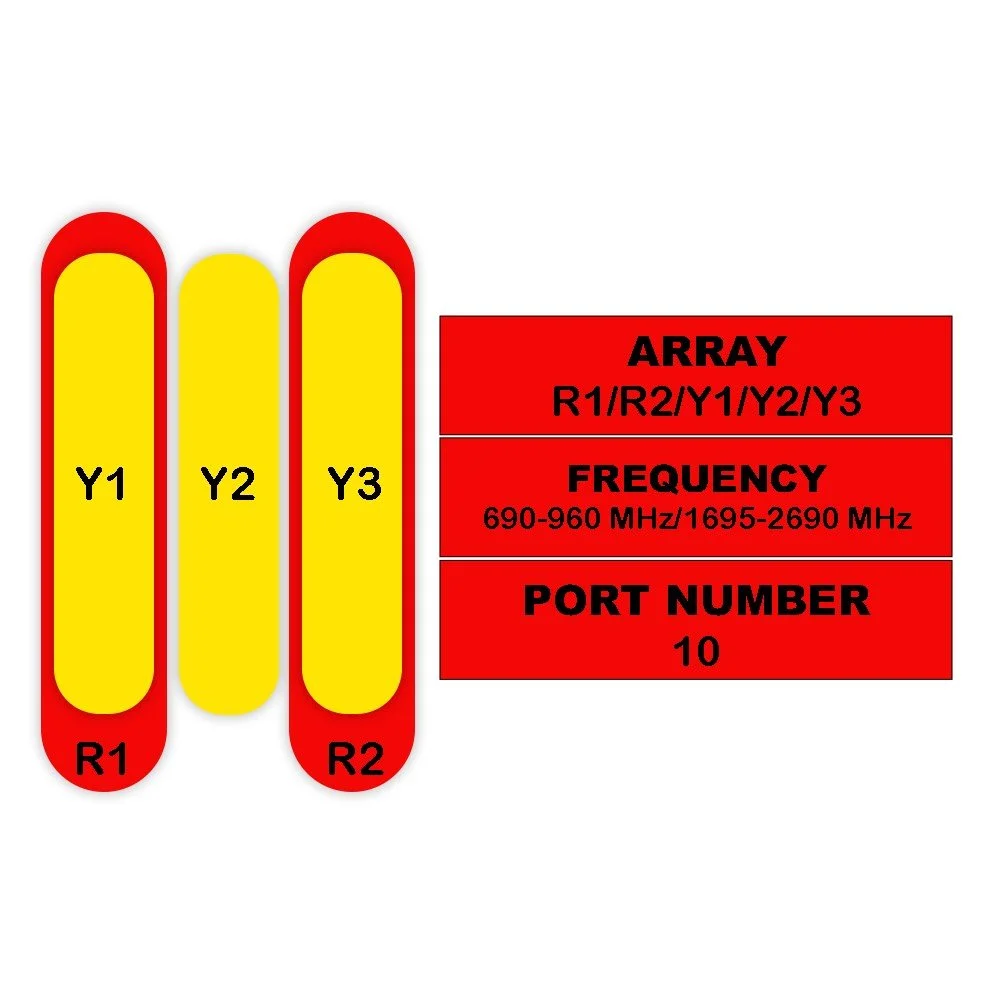

Electrical Specifications Table
Electrical Specifications
Parameter Unit R1 / R2 (690–960 MHz) Y1 / Y2 / Y3 (1695–2690 MHz)
690-806790-894880-960 1695-18801850-19901920-21702300-24002490-2690
Polarization — ±45°
Gain (Mid Tilt) dBi 14.214.414.8 16.616.917.217.417.4
Gain (All Tilts) dBi 14.0 ±0.514.2 ±0.514.6 ±0.4 16.4 ±0.616.7 ±0.517.0 ±0.517.2 ±0.517.2 ±0.5
Horizontal Beamwidth deg 65 ±4.460 ±3.658 ±4.6 67 ±6.564 ±6.563 ±6.558 ±5.560 ±6.0
Vertical Beamwidth deg 14.9 ±0.913.6 ±0.612.4 ±0.6 6.8 ±0.76.4 ±0.75.9 ±0.75.2 ±0.54.8 ±0.7
Electrical Downtilt deg 2–12
Tilt Accuracy deg <1<1<1 <1<1<1<1<1
Upper Side Lobe (First) dB >16>16>16 >16>16>16>16>16
Upper Side Lobe (Peak to 20°) dB >15>15>15 >15>15>15>15>15
Front-to-Back Ratio ±30° dB >23>24>25 ≥25≥25>25≥26≥26
Cross Polar (Boresight) dB >18>18>18 >16>16>16>17>17
Cross Polar Discrimination dB >8>7.5>6.5 >6>7>7>5>3
Isolation (Cross-Polar) dB >26 >26
Isolation (Port-to-Port) dB >26 (R1/R2), >28 (others) >28
Impedance Ohm 50
VSWR — <1.5
Return Loss dB >14
PIM3 (2×43 dBm) dBc <-150
Lightning Protection — DC Ground
Max Input Power (50°C) W 250 200
Mechanical Specifications Table
Mechanical Specifications
Parameter Sub-Category Unit Value

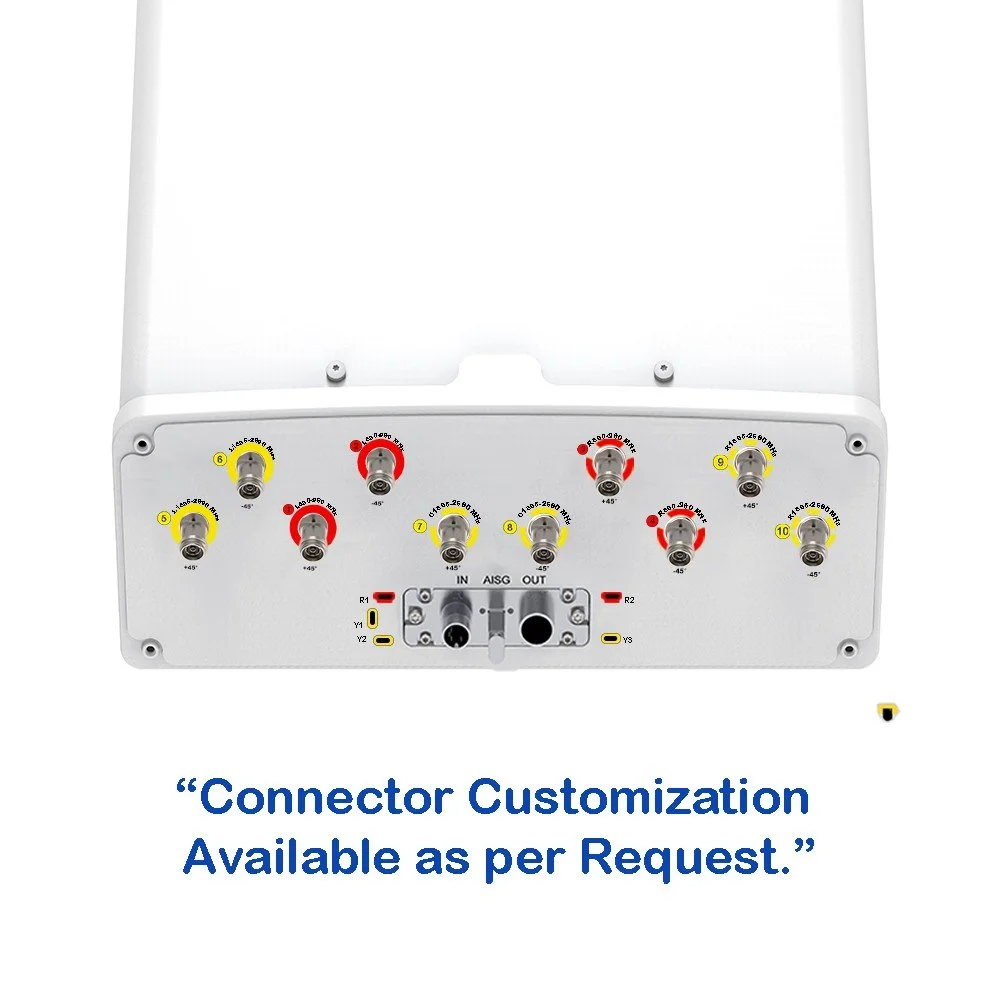

Connector Type — — (10x) 4.3/10 Female

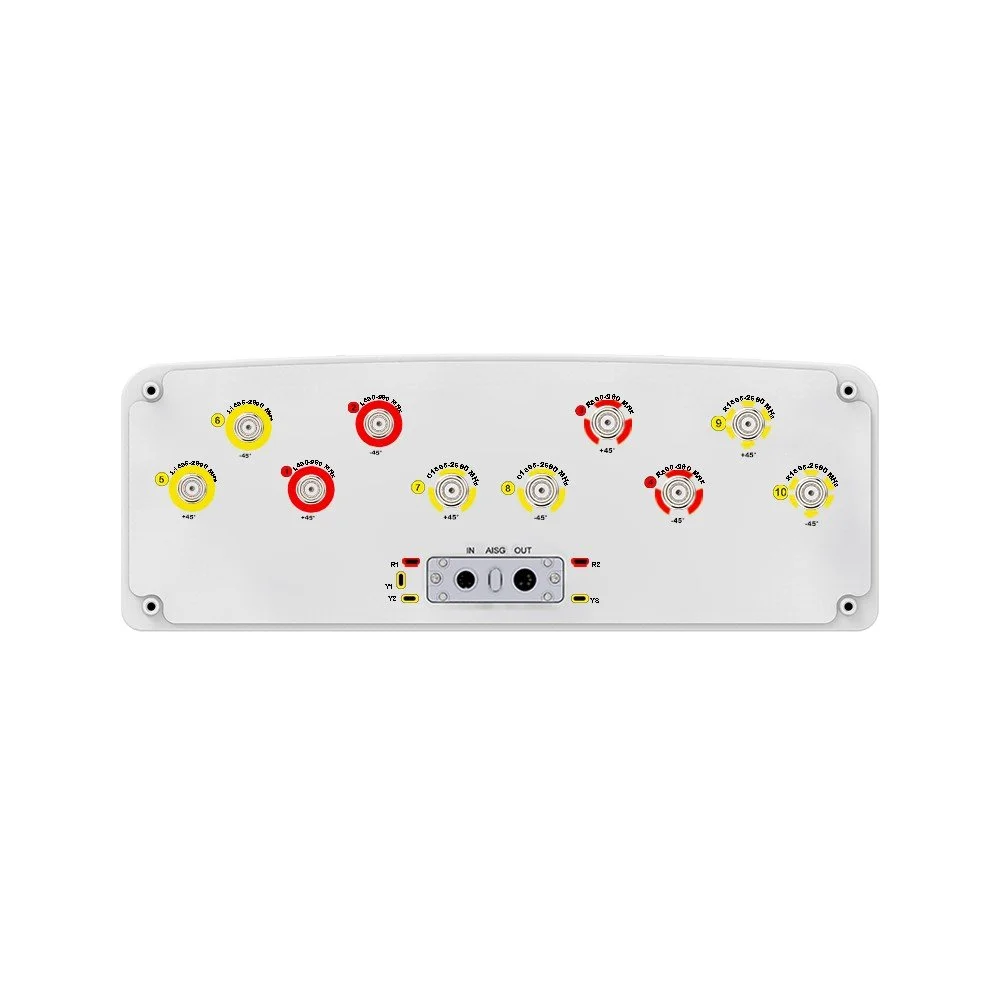

Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

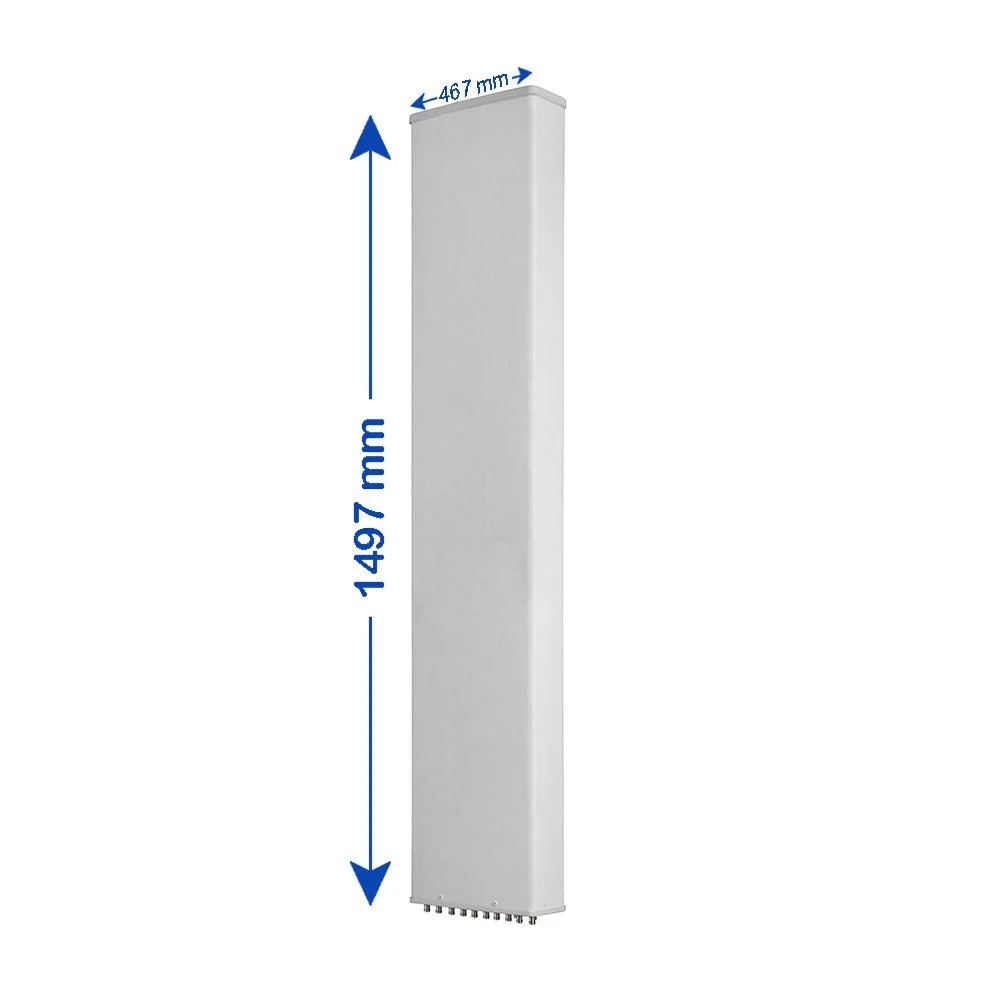

Antenna Dimensions (H × W × D) — mm (in) 1497 × 467 × 167 (58.9 × 18.4 × 6.6)
Antenna Weight Antenna Only kg (lbs) 24.5 (54.0)
With Clamps kg (lbs) 30 (66.1)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load @ 150 km/h Frontal N (lbf) 645 (145.0)
Rear N (lbf) 720 (161.9)
Lateral N (lbf) 285 (64.1)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
