10-Port Panel Sector Antenna (1710–2690 MHz)

Overview:

A high-performance 10-port panel sector antenna designed for multi-carrier, multi-sector deployments across the 1710–2690 MHz band. Engineered for modern mobile networks and dense urban environments, this antenna supports flexible MIMO configurations, enhanced capacity, and superior radiation control for improved coverage and network efficiency.

Key Features :

  • Frequency Range: 1710–2690 MHz (covers key LTE and 4G/4.5G bands)

  • 10 ports supporting combinations of MIMO, carrier aggregation, and cross-polarization

  • Sector Beamwidth: optimized horizontal and vertical patterns for focused coverage and minimal inter-sector interference

  • High gain: delivers strong cell-edge performance and extended reach

  • Low front-to-back ratio: reduces interference to neighboring sectors and cells

  • Compact, lightweight radome: ruggedized for rooftop and tower installations while minimizing wind load

  • Wideband passive design: stable electrical performance across the full band without electronic tuning

  • Inter-port isolation: engineered to preserve MIMO integrity and reduce correlation between ports

  • IP65/67-rated enclosure: weatherproof, UV-resistant for reliable outdoor operation

  • Corrosion-resistant mounting hardware: supports variable tilt and azimuth adjustments

  • Lightning protection provisions and ESD protection on RF interfaces

10-Port Panel Sector Antenna (1710–2690 MHz)

Overview:

A high-performance 10-port panel sector antenna designed for multi-carrier, multi-sector deployments across the 1710–2690 MHz band. Engineered for modern mobile networks and dense urban environments, this antenna supports flexible MIMO configurations, enhanced capacity, and superior radiation control for improved coverage and network efficiency.

Key Features :

  • Frequency Range: 1710–2690 MHz (covers key LTE and 4G/4.5G bands)

  • 10 ports supporting combinations of MIMO, carrier aggregation, and cross-polarization

  • Sector Beamwidth: optimized horizontal and vertical patterns for focused coverage and minimal inter-sector interference

  • High gain: delivers strong cell-edge performance and extended reach

  • Low front-to-back ratio: reduces interference to neighboring sectors and cells

  • Compact, lightweight radome: ruggedized for rooftop and tower installations while minimizing wind load

  • Wideband passive design: stable electrical performance across the full band without electronic tuning

  • Inter-port isolation: engineered to preserve MIMO integrity and reduce correlation between ports

  • IP65/67-rated enclosure: weatherproof, UV-resistant for reliable outdoor operation

  • Corrosion-resistant mounting hardware: supports variable tilt and azimuth adjustments

  • Lightning protection provisions and ESD protection on RF interfaces

Electrical Specifications

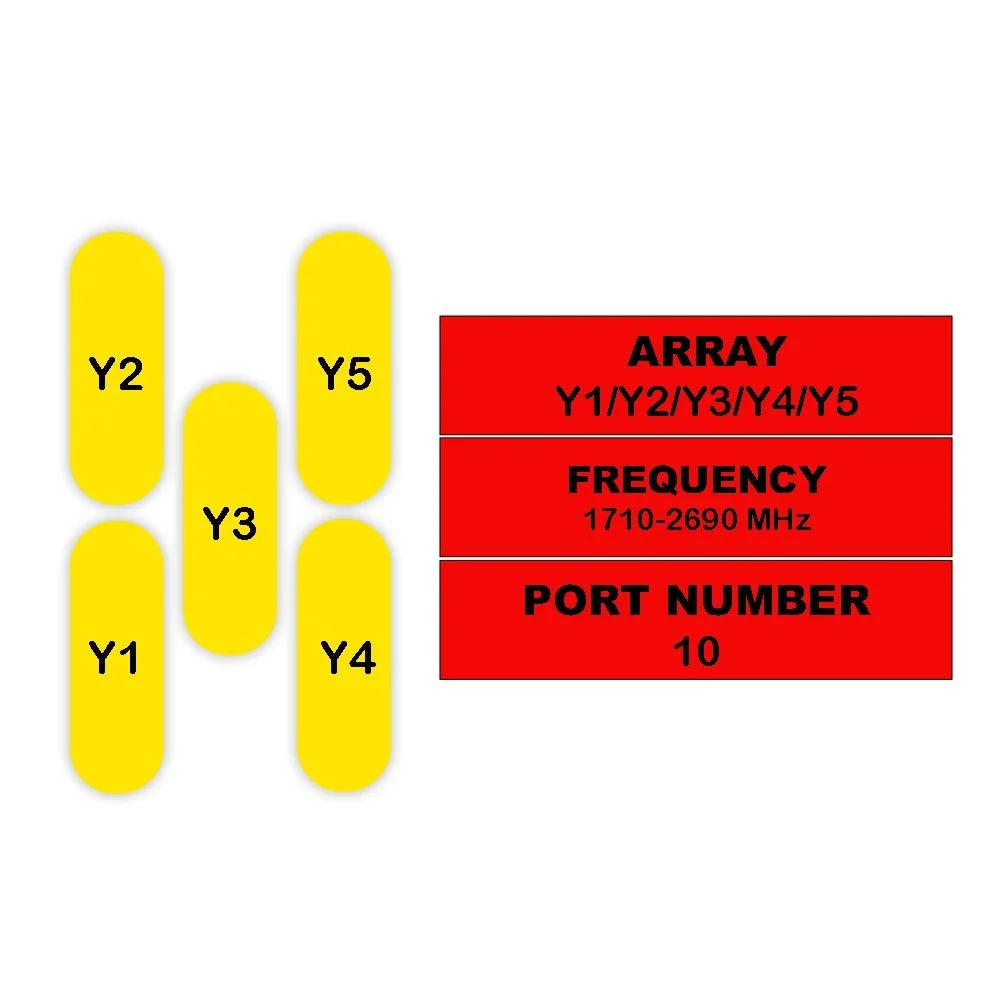

Y1 / Y2 / Y3 / Y4 / Y5
Parameter Unit 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Frequency Range MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization --- ±45°
Gain at Mid Tilt dBi 15.1 15.4 15.7 16.1 16.0
Over All Tilts dBi 15.0 ± 0.6 15.3 ± 0.6 15.6 ± 0.6 16.0 ± 0.6 15.9 ± 0.6
Horizontal Beamwidth degree 67 ± 5 65 ± 5 63 ± 5 61 ± 5 59 ± 5
Vertical Beamwidth degree 9.9 ± 1.0 9.5 ± 1.0 8.8 ± 0.9 7.7 ± 0.8 7.0 ± 0.7
Electrical Downtilt, Continuously Adjustable degree 2-12
First Upper Side Lobe Suppression dB >16 >16 >16 >16 >16
Front-To-Back Ratio CO-Pol, ±30° dB >25 >25 >25 >25 >25
Cross Polar Discrimination at Boresight dB >20 >20 >20 >20 >20
Over Sector dB >8 >8 >8 >6 >5
Isolation – Cross-Polar dB >25
Isolation – Port-To-Port dB >25
Impedance Ohm 50
VSWR --- <1.5
Return Loss dB >14
PIM3 (2×43 dBm Carrier) dBc <-150
Lightning Protection --- DC Ground
Maximum Average Input Power per Port, at 50°C Ambient Temperature Watts 200
Mechanical Specifications
Parameter Unit Value

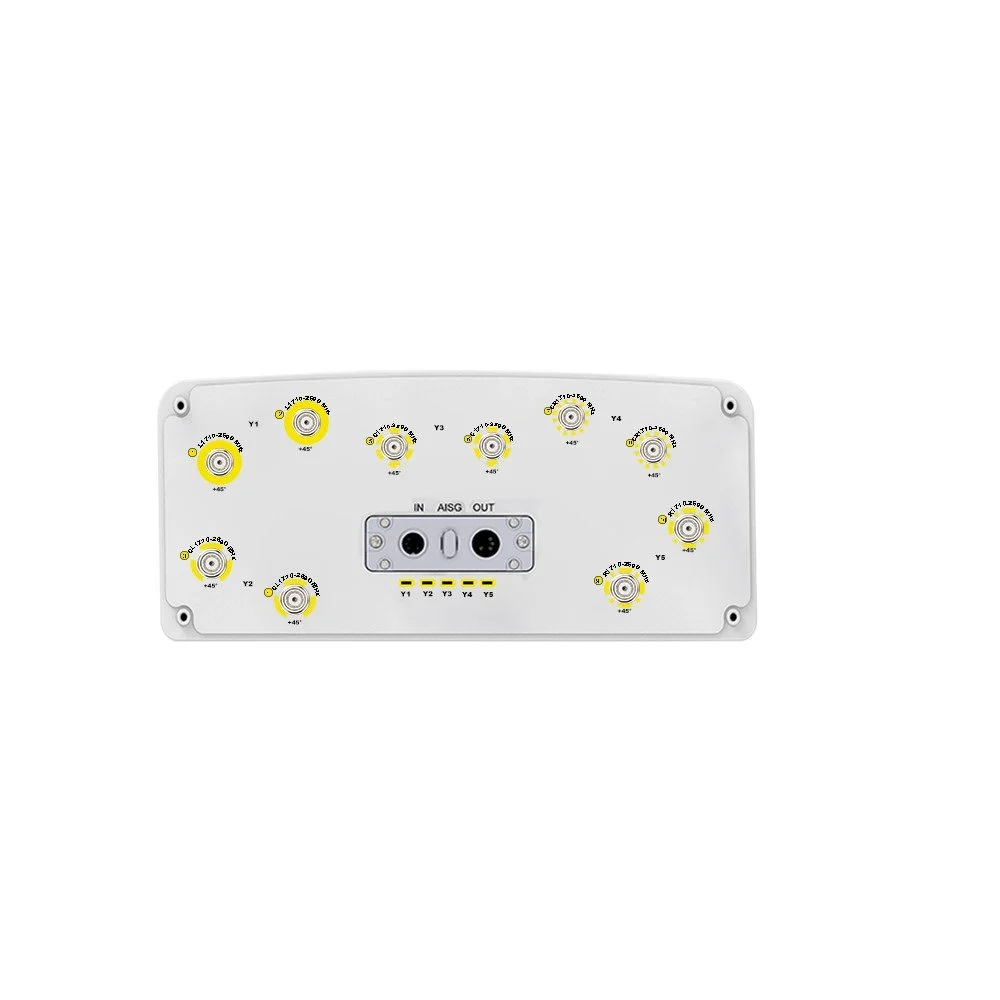

Connector Type --- (10x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- Fiberglass

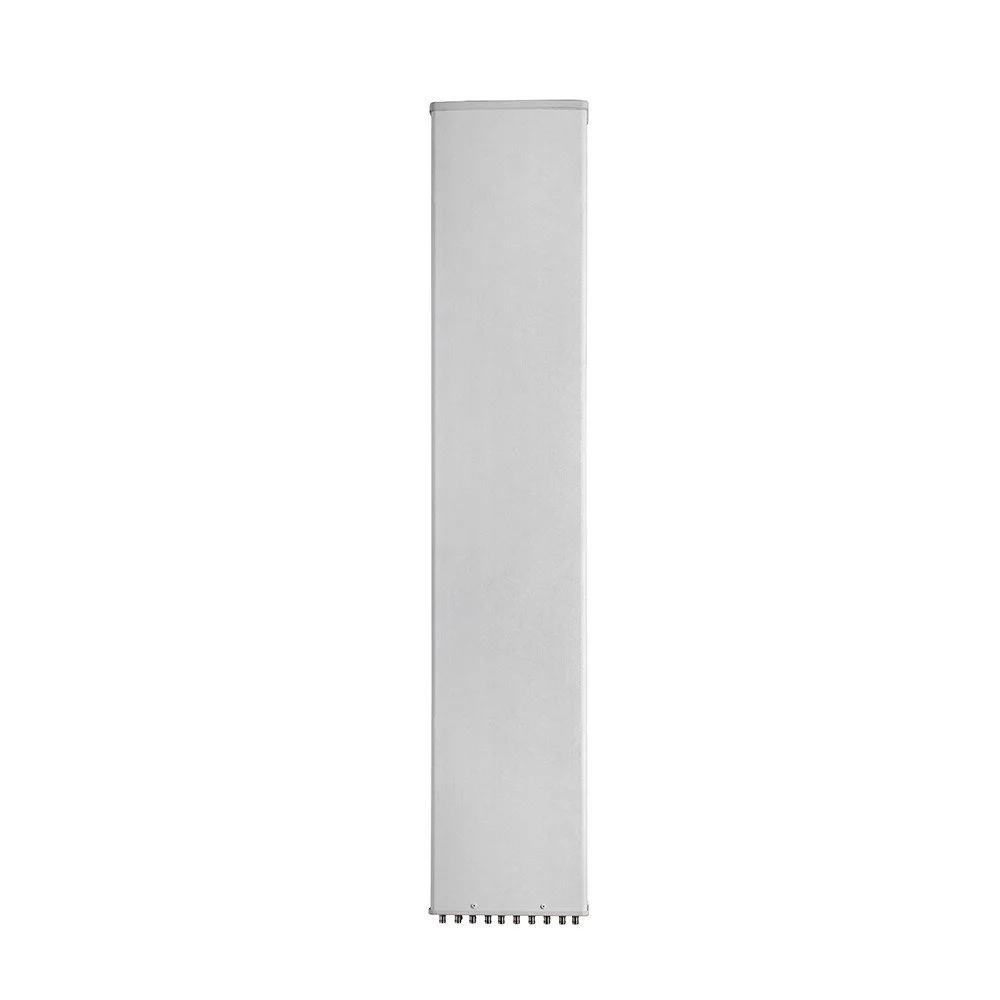

Antenna Dimensions (H × W × D) mm (in) 1997 × 377 × 157 (78.6 × 14.8 × 6.2)
Antenna Weight – Antenna Only kg (lbs) 25 (55.1)
Antenna Weight – With Clamps kg (lbs) 29 (63.9)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h – Frontal N (lbf) 695 (156.2)
Wind Load at 150 km/h – Rear N (lbf) 780 (175.4)
Wind Load at 150 km/h – Lateral N (lbf) 360 (80.9)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
