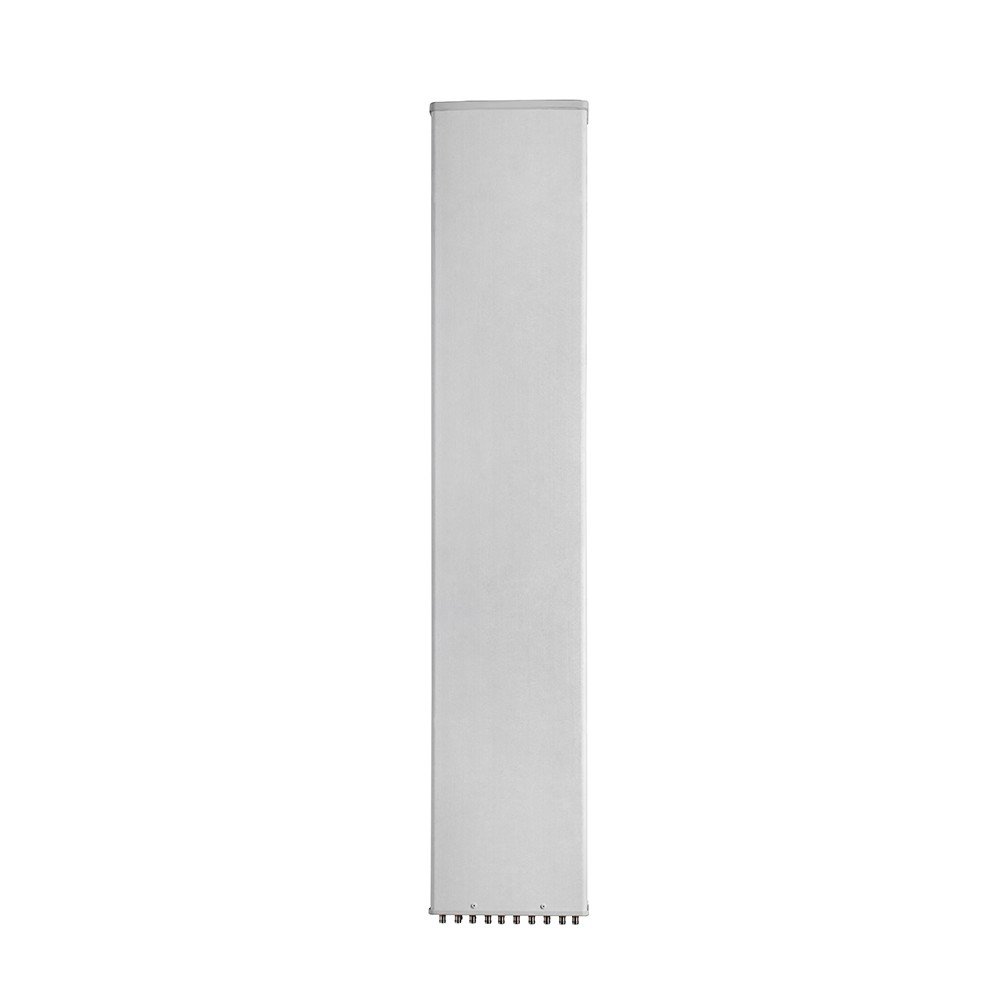

10-Port, Panel Sector Antenna ( 1710 - 2690 MHz )

₹0.00

10‑Port Panel Sector Antenna Frequency Range: 1710 – 2690 MHz

Overview :

Compact, high-performance 10-port panel sector antenna optimized for 2G/3G/4G/LTE and mid-band 5G deployments across 1710–2690 MHz. Designed for macro and small-cell sites requiring high capacity, MIMO configurations, and advanced sectorization. Ruggedized for outdoor installation with low visual profile and simplified cabling.

Key Features :

  • Frequency: 1710–2690 MHz (covers major cellular midbands and GSM/UMTS/LTE bands)

  • Ports: 10 ports supporting multi‑rank MIMO and sector splitting

  • Polarization: Dual linear polarization (±45° slant) with selective port polarization assignments

  • Gain: Typical gain range 8–14 dBi (band dependent, optimized across band)

  • Beamwidth: Horizontal (azimuth) ~65°–90° (model/tilt dependent), Vertical (elevation) ~6°–12°

  • Isolation: High inter‑port isolation >25 dB typical to minimize mutual coupling

  • Return Loss: ≤ -10 dB across full band (VSWR ≤ 2.0:1)

  • Front-to‑Back Ratio: ≥ 20 dB typical

  • Cross‑polar Discrimination (XPD): ≥ 20 dB typical

  • Tilt Options: Adjustable mechanical down‑tilt and optional remote electrical tilt compatibility

  • Mounting: Universal pole/bracket kit for towers, rooftops, and masts; compact form factor for low visual impact

  • Connectors: Robust N‑type (female) or SMA options; weatherproofing with high-quality gaskets and boot seals

  • Power Handling: Passive antenna (no DC power); nominal passive intermodulation (PIM) ≤ -153 dBc (2×20W test)

  • Environmental: IP67-rated radome; operating temperature -40°C to +65°C; UV-stable materials; salt-fog and corrosion resistant

  • Lightning Protection: Integrated DC grounding point and external lightning arrestor recommended

  • Certifications: CE, RoHS, and carrier pre-qualification options available

10‑Port Panel Sector Antenna Frequency Range: 1710 – 2690 MHz

Overview :

Compact, high-performance 10-port panel sector antenna optimized for 2G/3G/4G/LTE and mid-band 5G deployments across 1710–2690 MHz. Designed for macro and small-cell sites requiring high capacity, MIMO configurations, and advanced sectorization. Ruggedized for outdoor installation with low visual profile and simplified cabling.

Key Features :

  • Frequency: 1710–2690 MHz (covers major cellular midbands and GSM/UMTS/LTE bands)

  • Ports: 10 ports supporting multi‑rank MIMO and sector splitting

  • Polarization: Dual linear polarization (±45° slant) with selective port polarization assignments

  • Gain: Typical gain range 8–14 dBi (band dependent, optimized across band)

  • Beamwidth: Horizontal (azimuth) ~65°–90° (model/tilt dependent), Vertical (elevation) ~6°–12°

  • Isolation: High inter‑port isolation >25 dB typical to minimize mutual coupling

  • Return Loss: ≤ -10 dB across full band (VSWR ≤ 2.0:1)

  • Front-to‑Back Ratio: ≥ 20 dB typical

  • Cross‑polar Discrimination (XPD): ≥ 20 dB typical

  • Tilt Options: Adjustable mechanical down‑tilt and optional remote electrical tilt compatibility

  • Mounting: Universal pole/bracket kit for towers, rooftops, and masts; compact form factor for low visual impact

  • Connectors: Robust N‑type (female) or SMA options; weatherproofing with high-quality gaskets and boot seals

  • Power Handling: Passive antenna (no DC power); nominal passive intermodulation (PIM) ≤ -153 dBc (2×20W test)

  • Environmental: IP67-rated radome; operating temperature -40°C to +65°C; UV-stable materials; salt-fog and corrosion resistant

  • Lightning Protection: Integrated DC grounding point and external lightning arrestor recommended

  • Certifications: CE, RoHS, and carrier pre-qualification options available

Parameter Unit 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Frequency Range MHz 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization --- ±45° ±45° ±45° ±45° ±45°
Gain at Mid Tilt dBi 17.0 17.3 17.6 17.9 18.0
Gain Over All Tilts dBi 17.0 ± 0.6 17.3 ± 0.5 17.6 ± 0.5 17.8 ± 0.5 17.9 ± 0.5
Horizontal Beamwidth degree 68 ± 4.8 65 ± 4.1 63 ± 3.9 60 ± 4.5 58 ± 4.9
Vertical Beamwidth degree 6.8 ± 0.5 6.3 ± 0.5 5.9 ± 0.5 5.4 ± 0.3 4.8 ± 0.3
Electrical Downtilt (Continuously Adjustable) degree 0-10 0-10 0-10 0-10 0-10
Tilt Accuracy degree < 0.7 < 0.6 < 0.6 < 0.6 < 0.6
Side Lobe Suppression (First Upper Lobe) dB > 16 > 16 > 16 > 16 > 16
Side Lobe Suppression (20° Sector Above Main Beam) dB > 15 > 15 > 15 > 15 > 15
Front-to-Back Ratio (±30°) dB > 25 > 26 > 26 ≥ 26 ≥ 26
Cross Polar Discrimination (Boresight) dB > 22 > 21 > 19 > 19 > 19
Cross Polar Discrimination (Over Sector) dB > 9 > 9 > 10 > 9 > 8
Azimuth Beam Port-to-Port Tracking dB < 2.0 < 2.0 < 2.5 < 2.2 < 2.3
Isolation (Cross-Polar) dB > 28
Isolation (Port-to-Port) dB > 28
Isolation (Interband) dB > 28
Impedance Ohm 50
VSWR --- < 1.5
Return Loss dB > 14
PIM3 (2×43 dBm Carrier) dBc < -153
Lightning Protection --- DC Ground
Maximum Average Input Power per Port (50°C) Watts 200
Mechanical Specifications Unit Value

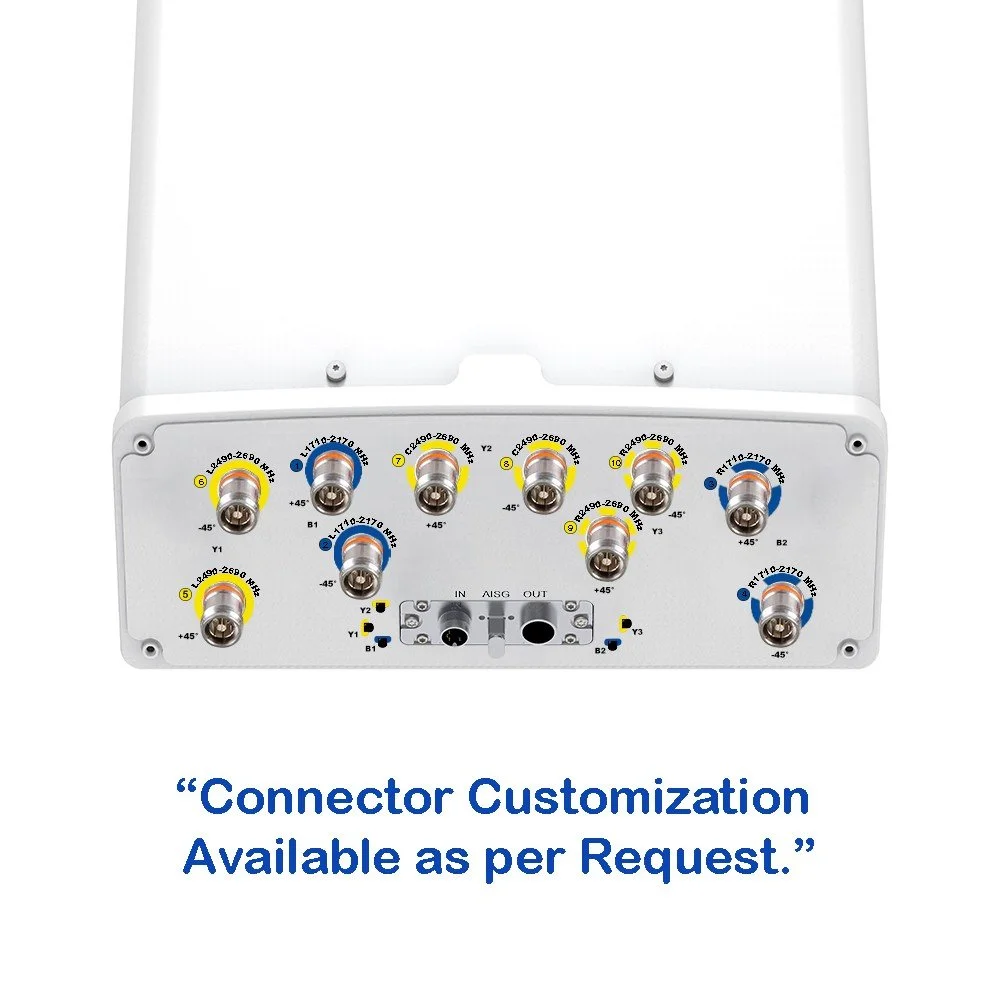

Connector Type --- (10x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- Fiberglass

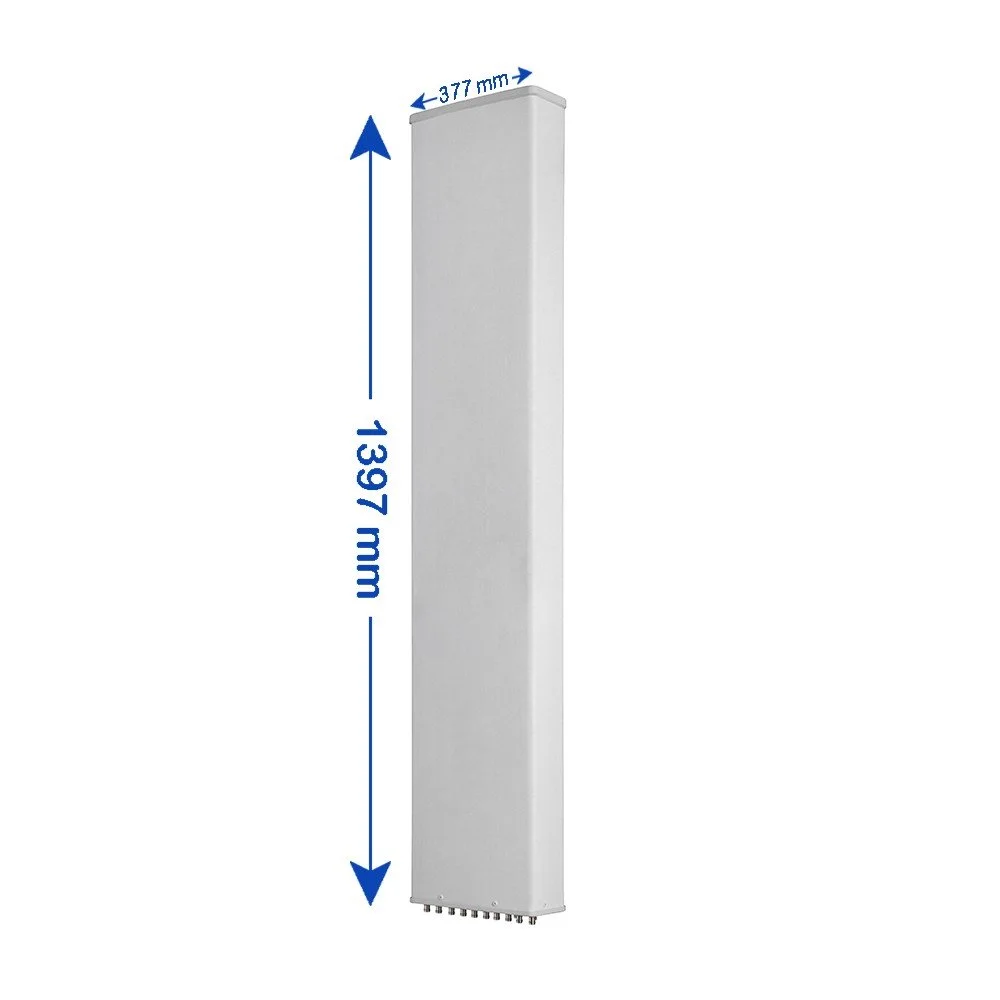

Antenna Dimensions (H × W × D) mm (in) 1397 × 377 × 157 (55.0 × 14.8 × 6.2)
Antenna Weight (Antenna Only) kg (lbs) 23 (50.7)
Antenna Weight (with Clamps) kg (lbs) 27.5 (60.6)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h (Frontal) N (lbf) 635 (142.8)
Wind Load at 150 km/h (Lateral) N (lbf) 810 (182.1)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
