An advanced, wideband 10-port panel antenna engineered for multi-band MIMO and carrier aggregation across 790–3800 MHz. Designed for cellular base stations, small cells, and neutral host deployments, this compact panel supports concurrent multi-operator connectivity and high-capacity networks while delivering excellent isolation, consistent radiation patterns, and robust environmental protection.

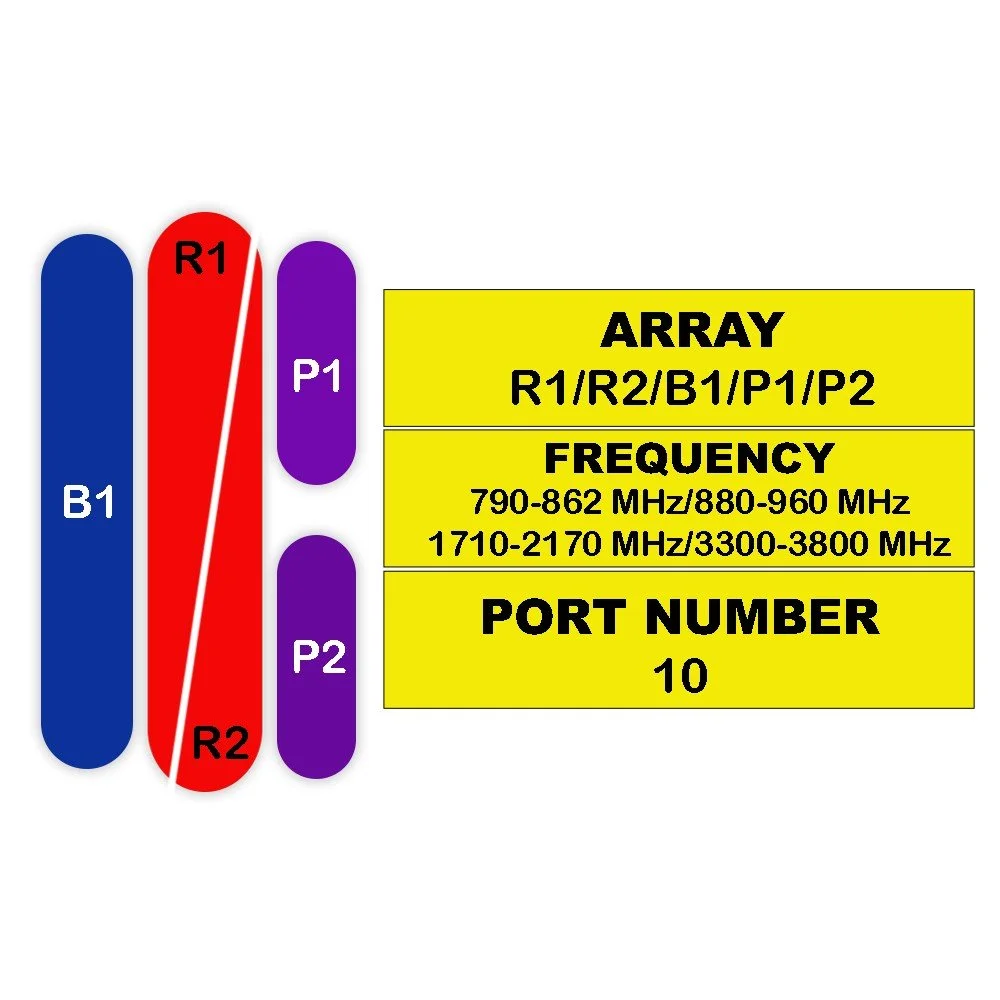

Frequency range: 790–3800 MHz covering low-band, mid-band, and parts of upper midband useful for LTE and 5G NR.
10 independent ports: Enables multi-band MIMO, multi-operator splits, or dedicated ports for diversity and beam management.
Multi-band performance: Optimized internal phasing and element design for stable gain and pattern control across the full band.
High port isolation: Typical isolation ≥ 20 dB between adjacent ports to reduce cross-talk and improve system throughput.
Low envelope correlation coefficient (ECC): Designed ECC < 0.1 for MIMO efficiency.
Gain: Typical peak gain 6–10 dBi depending on operating sub-band (see band-specific charts).
Beamwidth: Designed for sector coverage with nominal horizontal beamwidth approx. 60–90° depending on model and frequency.
VSWR: Typical ≤ 2:1 across the operational bands.
Power handling: Per-port average power handling suitable for active remote units and passive DAS elements (specify per model).

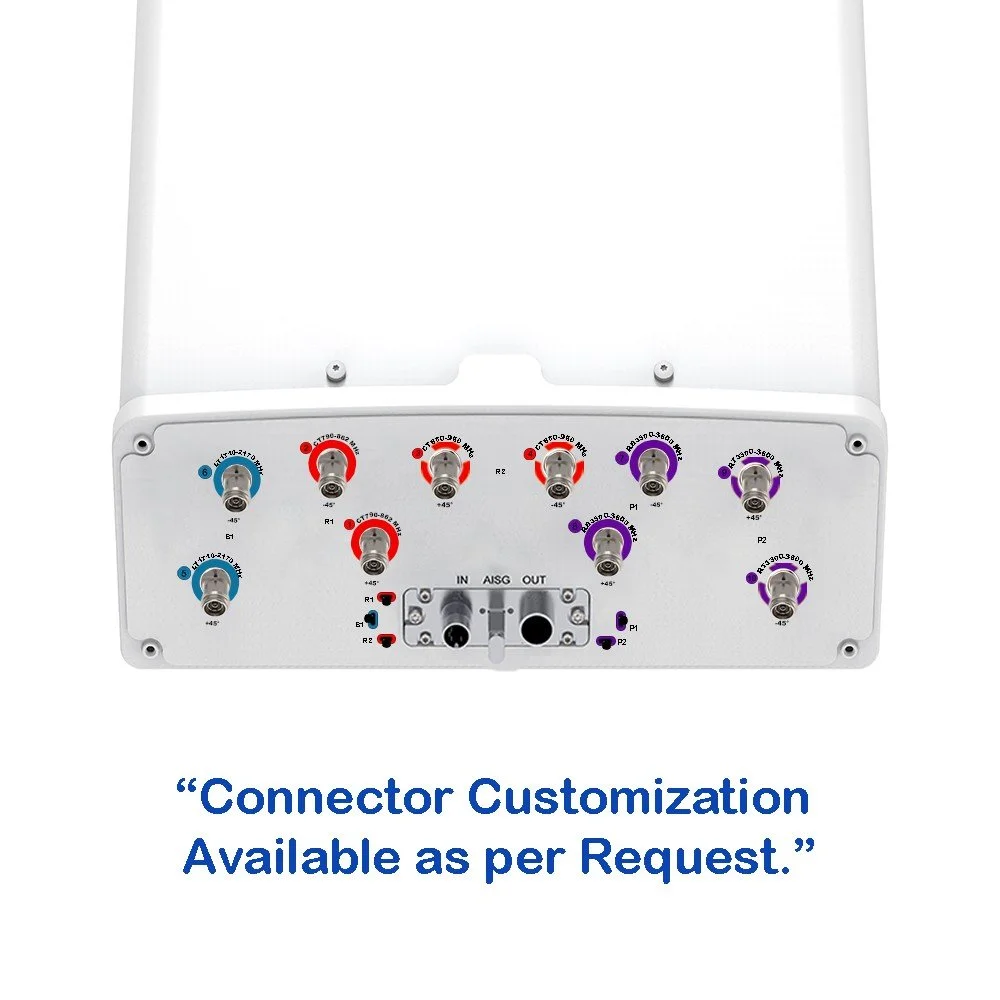

Connector options: N-type female (standard) or customizable SMA/7-16 DIN on request.

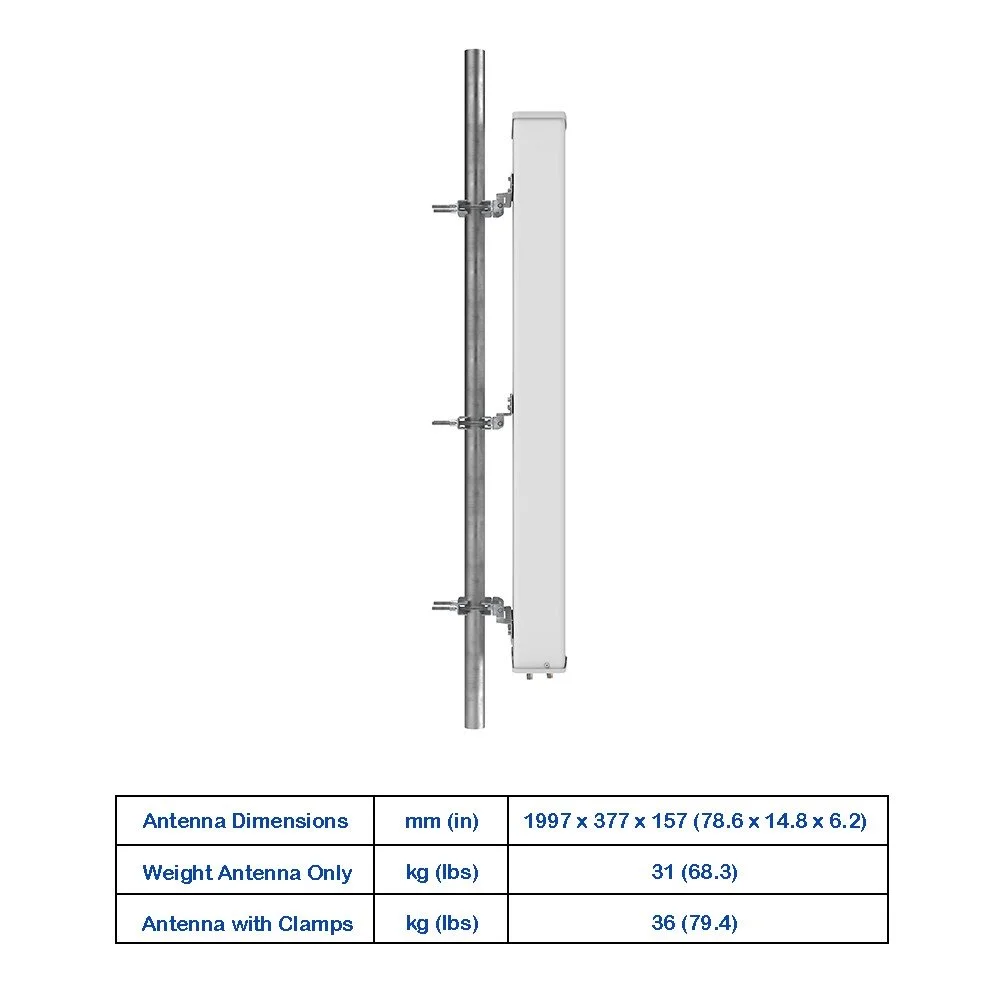

Mounting: Universal pole/bracket mount with adjustable tilt and azimuth for easy alignment.
Environmental rating: IP65/IP66 sealed radome for outdoor installations; ruggedized for salt-fog and UV exposure.
Operating temperature: -40°C to +65°C.
Lightning and surge protection: Optional integrated gas discharge tube (GDT) or grounding provisions; follow local grounding best practices.
