10-Port Panel Antenna (698–2690 MHz)

Overview :

A high-performance multiport panel antenna engineered for wideband coverage across 698–2690 MHz. Designed for dense urban deployments, in-building solutions, and small cell integration, this antenna provides flexible sectorization, MIMO support, and compact form factor for streamlined installation.

Key Features :

  • Frequency range: 698–2690 MHz (covers LTE bands and key sub-3 GHz 5G NSA bands)

  • Ports: 10 independent RF ports for multi-sector/multi-band configurations

  • MIMO support: Multiple ports enable 2x2, 4x4, or hybrid MIMO configurations depending on system design

  • Gain: Optimized gain across the band with consistent pattern stability for reliable coverage

  • Isolation: High inter-port isolation to minimize cross-coupling and improve system throughput

  • Radiation pattern: Directional panel pattern with controlled beamwidth for targeted coverage and reduced interference

  • Polarization: Dual linear polarization options across ports to support diversity and polarization multiplexing

  • Impedance: 50 Ω standard

  • VSWR: Low VSWR across operating band for efficient power transfer

  • Power handling: Rated for typical base station and small cell transmit power levels

  • Durability: Rugged radome and corrosion-resistant mounting hardware for outdoor use

  • Mounting: Versatile pole and wall mount brackets for easy alignment and installation

  • Environmental: IP65 (or higher) weatherproofing; operational temperature range suitable for outdoor telecom environments

  • Lightning protection: Integrated grounding provisions and surge protection recommendations

Applications

10-Port Panel Antenna (698–2690 MHz)

Overview :

A high-performance multiport panel antenna engineered for wideband coverage across 698–2690 MHz. Designed for dense urban deployments, in-building solutions, and small cell integration, this antenna provides flexible sectorization, MIMO support, and compact form factor for streamlined installation.

Key Features :

  • Frequency range: 698–2690 MHz (covers LTE bands and key sub-3 GHz 5G NSA bands)

  • Ports: 10 independent RF ports for multi-sector/multi-band configurations

  • MIMO support: Multiple ports enable 2x2, 4x4, or hybrid MIMO configurations depending on system design

  • Gain: Optimized gain across the band with consistent pattern stability for reliable coverage

  • Isolation: High inter-port isolation to minimize cross-coupling and improve system throughput

  • Radiation pattern: Directional panel pattern with controlled beamwidth for targeted coverage and reduced interference

  • Polarization: Dual linear polarization options across ports to support diversity and polarization multiplexing

  • Impedance: 50 Ω standard

  • VSWR: Low VSWR across operating band for efficient power transfer

  • Power handling: Rated for typical base station and small cell transmit power levels

  • Durability: Rugged radome and corrosion-resistant mounting hardware for outdoor use

  • Mounting: Versatile pole and wall mount brackets for easy alignment and installation

  • Environmental: IP65 (or higher) weatherproofing; operational temperature range suitable for outdoor telecom environments

  • Lightning protection: Integrated grounding provisions and surge protection recommendations

Applications

Electrical Specifications

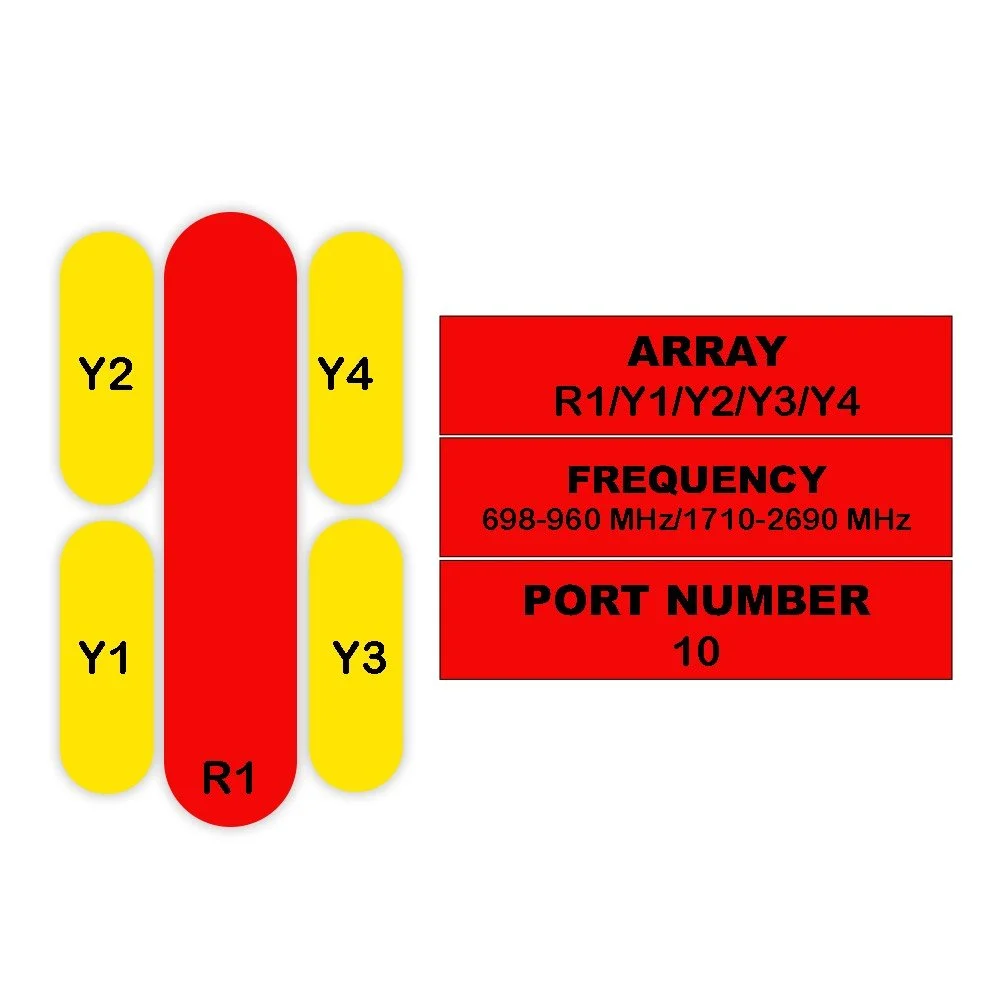

Parameter Unit R1 Y1 / Y3 Y2 / Y4
Frequency Range MHz 698–960 1695–2690 1695–2690
Sub Bands MHz 698–806, 790–894, 880–960 1695–1880, 1850–1990, 1920–2170, 2300–2400, 2490–2690 1695–1880, 1850–1990, 1920–2170, 2300–2400, 2490–2690
Polarization — ±45° ±45° ±45°
Gain (Mid Tilt) dBi 16.1 16.5 – 17.6 16.3 – 17.2
Gain (All Tilts) dBi 15.9 ± 0.6 16.3 – 17.4 16.1 – 17.0
Horizontal Beamwidth degree 64° – 68° 62° – 68° 62° – 68°
Vertical Beamwidth degree 7.2° – 8.8° 4.8° – 6.8° 4.8° – 6.8°
Electrical Downtilt degree 2–12 2–12 2–12
Tilt Accuracy degree < 1 < 1 < 1
Upper Side Lobe Suppression dB > 16 > 16 > 16
Front-To-Back Ratio ±30° dB > 23 > 24 – 26 > 25 – 26
Cross Polar Discrimination (Boresight) dB > 17 > 16 – 18 > 16 – 17
Cross Polar Discrimination (Sector) dB > 7.0 > 4.0 – 8.0 > 4.0 – 7.0
Isolation dB > 28 > 28 > 28
Impedance Ohm 50 50 50
VSWR — < 1.5 < 1.5 < 1.5
Return Loss dB > 14 > 14 > 14
PIM3 (2x43 dBm) dBc < -153 < -153 < -153
Lightning Protection — DC Ground DC Ground DC Ground
Max Input Power (50°C) Watts 250 200 200
Mechanical Specifications
Parameter Sub-Parameter Unit Value

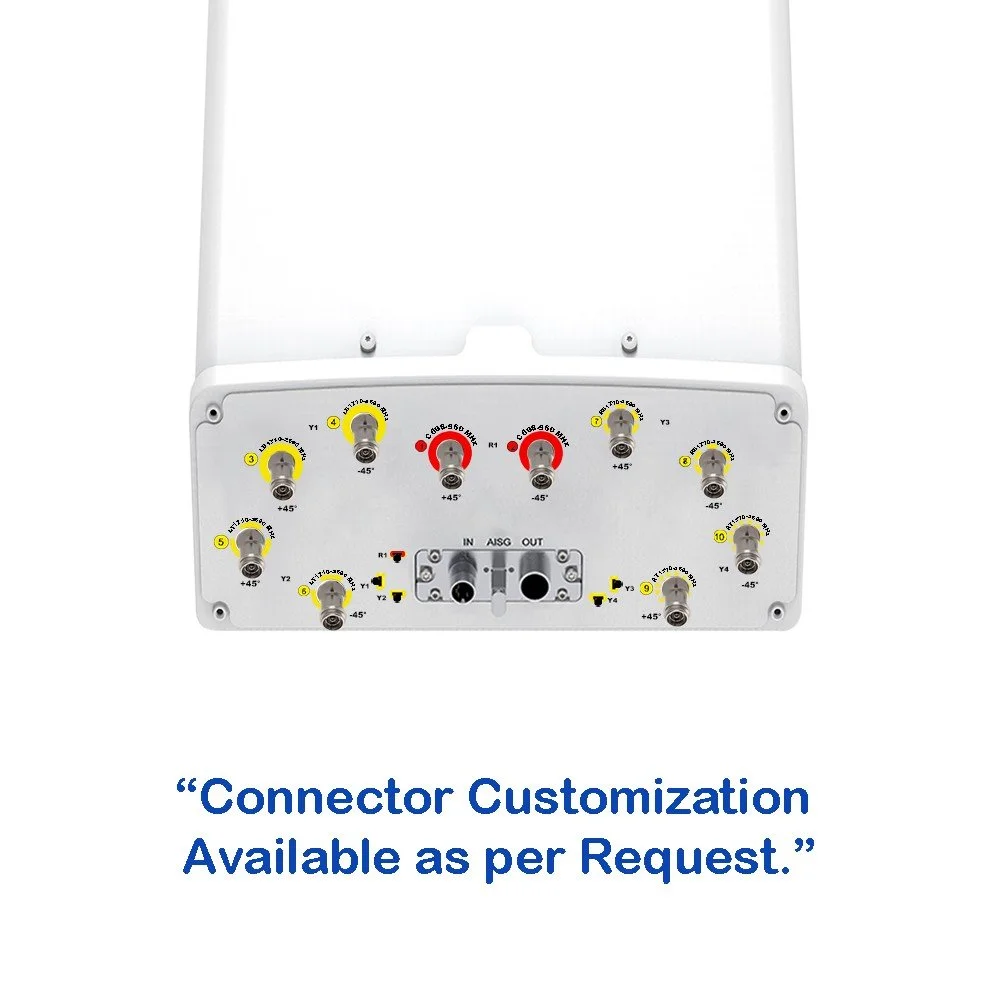

Connector Type — — (10x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — UPVC
Antenna Dimensions (H × W × D) — mm (in) 2750 × 397 × 157 (108.3 × 15.6 × 6.2)
Antenna Weight Antenna Only kg (lbs) 34 (75.0)
Antenna Weight With Clamps kg (lbs) 41.5 (91.5)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 955 (214.7)
Wind Load at 150 km/h Rear N (lbf) 1070 (240.5)
Wind Load at 150 km/h Lateral N (lbf) 495 (111.3)
Operating Temperature — °C (°F) -40 to +60 (-40 to 140)
