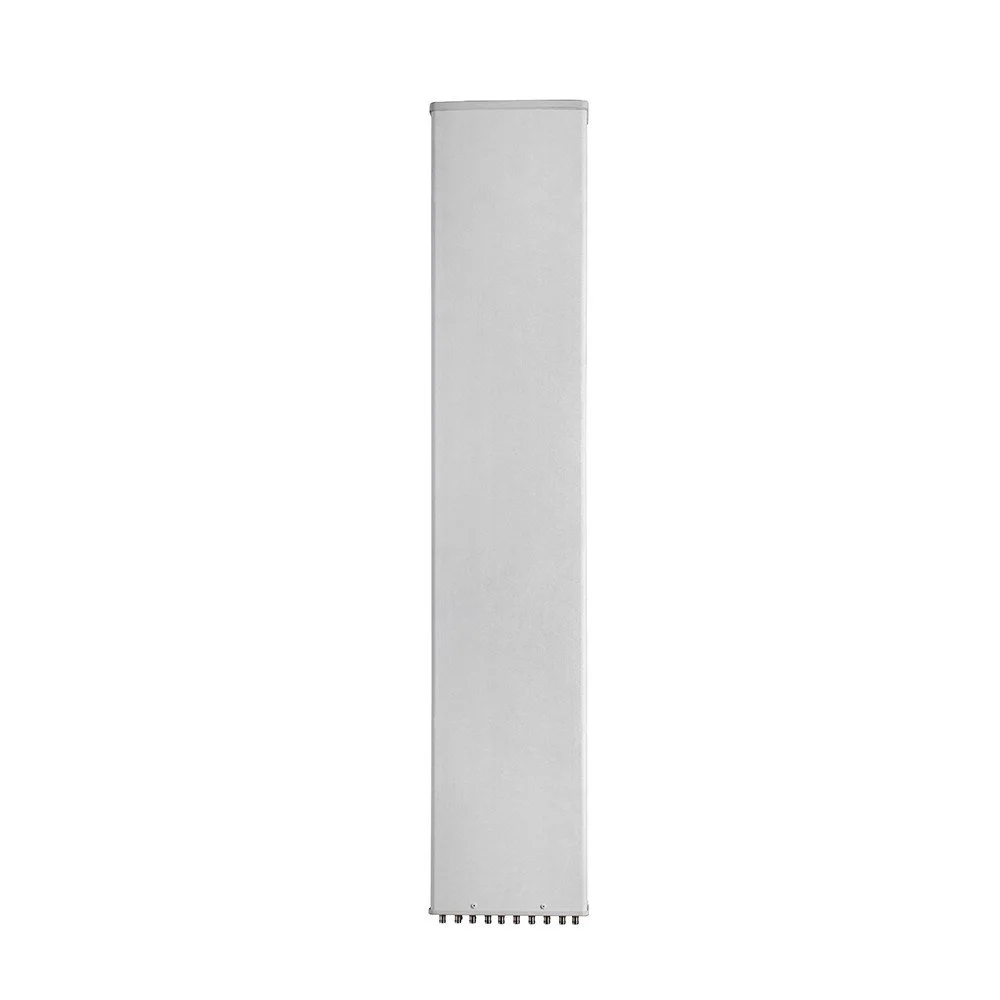

10-Port Panel Antenna (698–2690 MHz)
Overview :
A high-performance 10-port panel antenna engineered for wideband cellular coverage across 698–2690 MHz. Designed for dense urban deployments and challenging RF environments, this antenna supports multiple MIMO configurations and carrier aggregation scenarios to maximize throughput and network capacity.
Key Features :

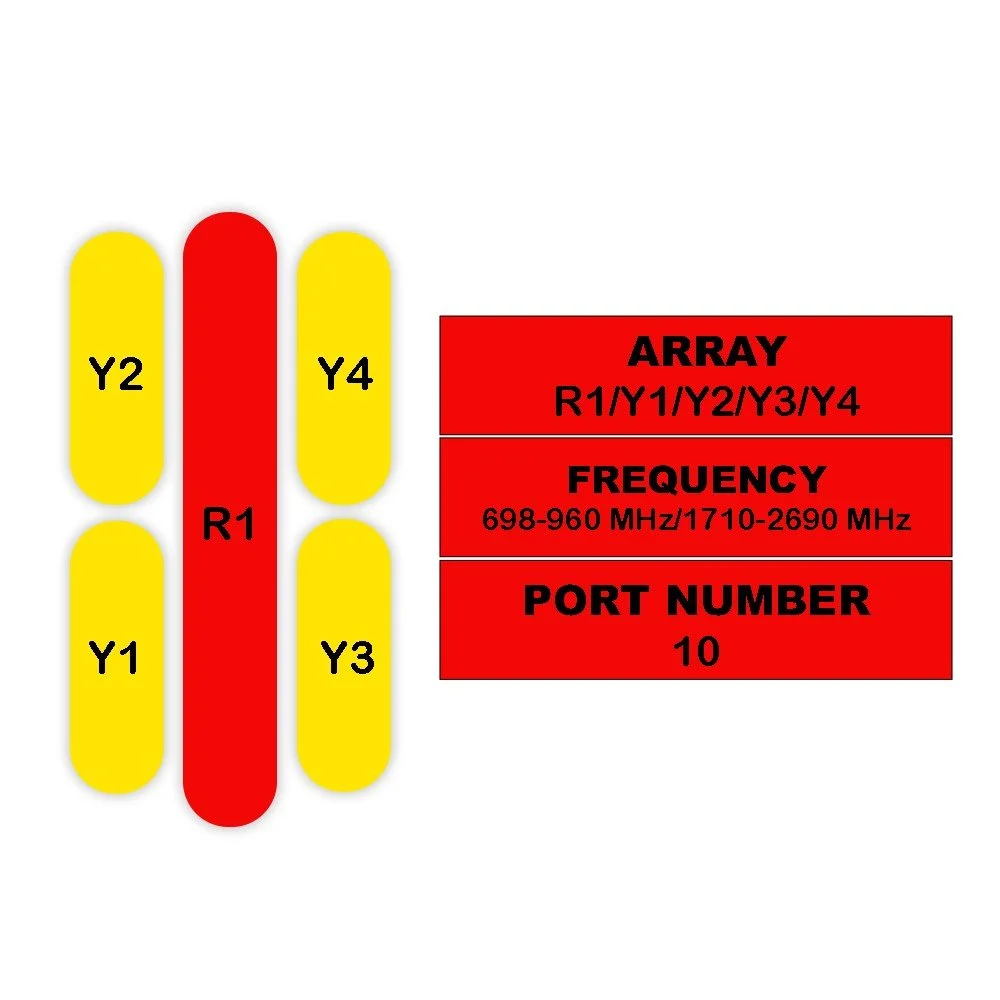

Frequency range: 698–2690 MHz covering LTE bands and many legacy cellular bands.

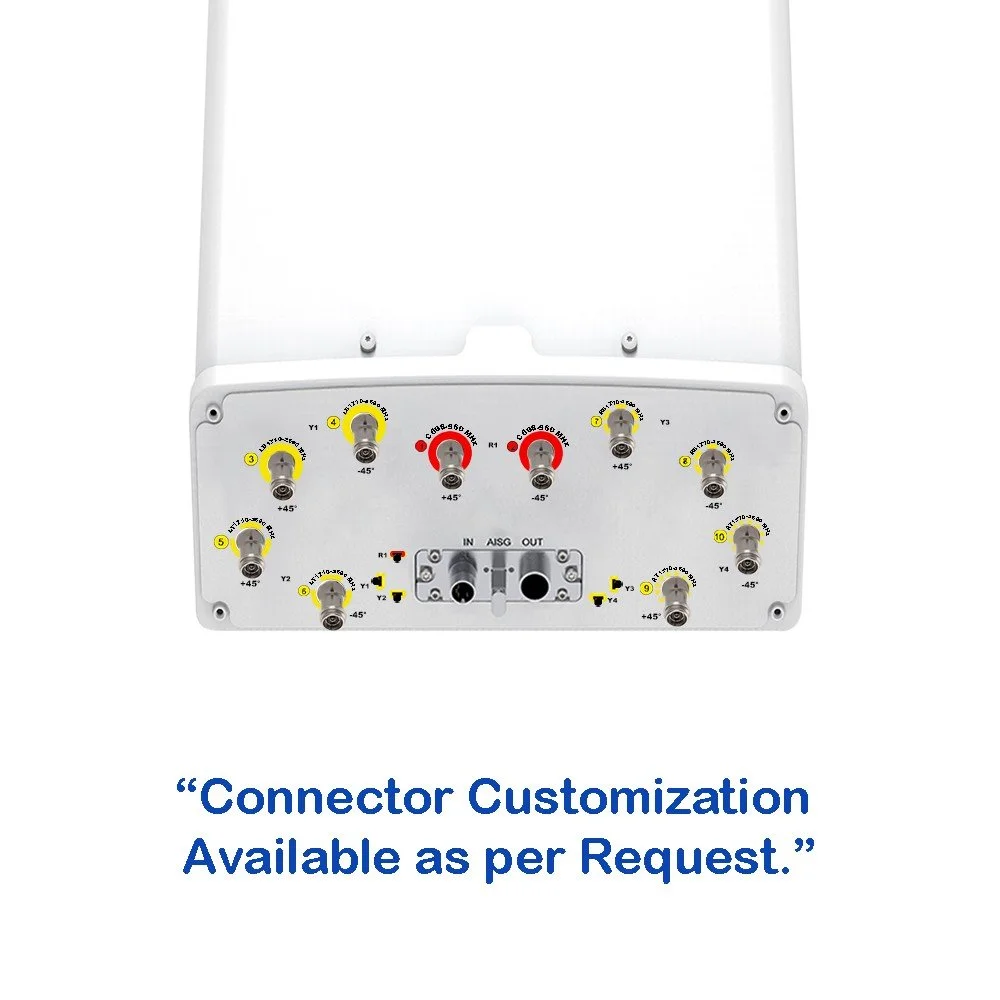

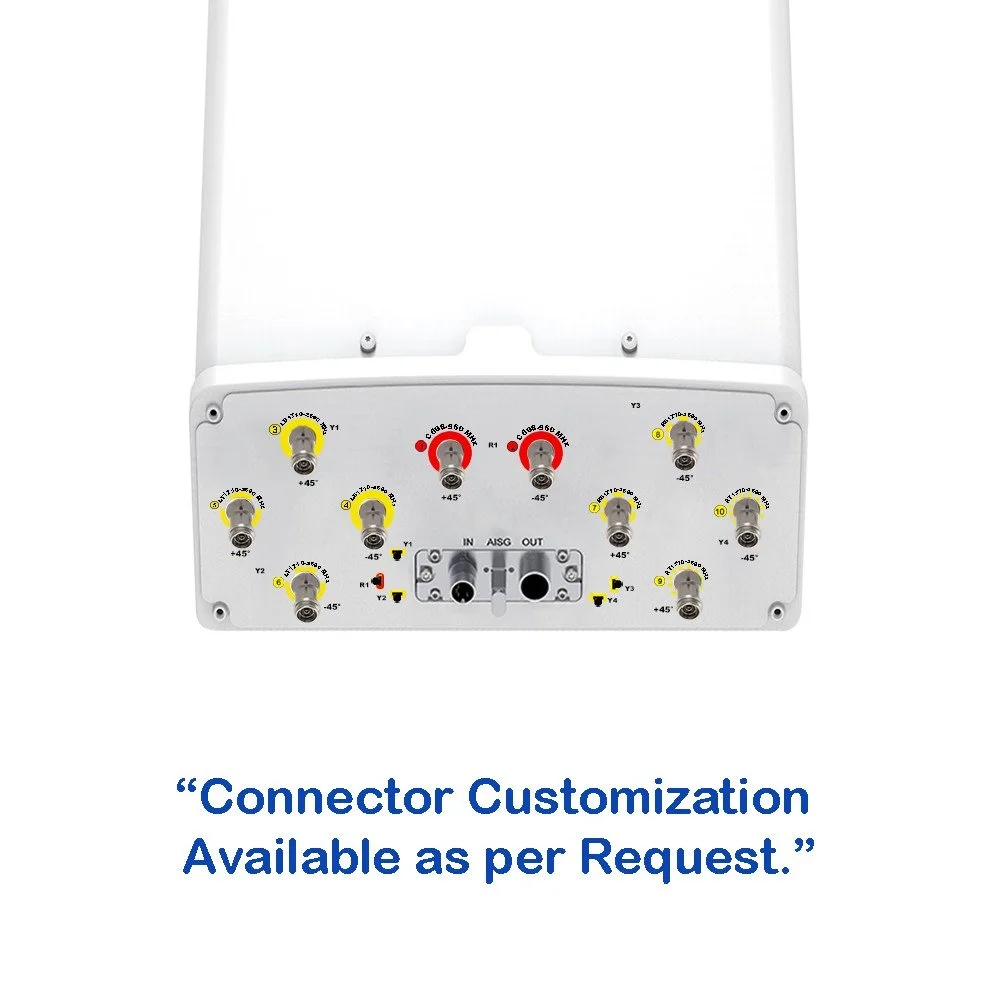

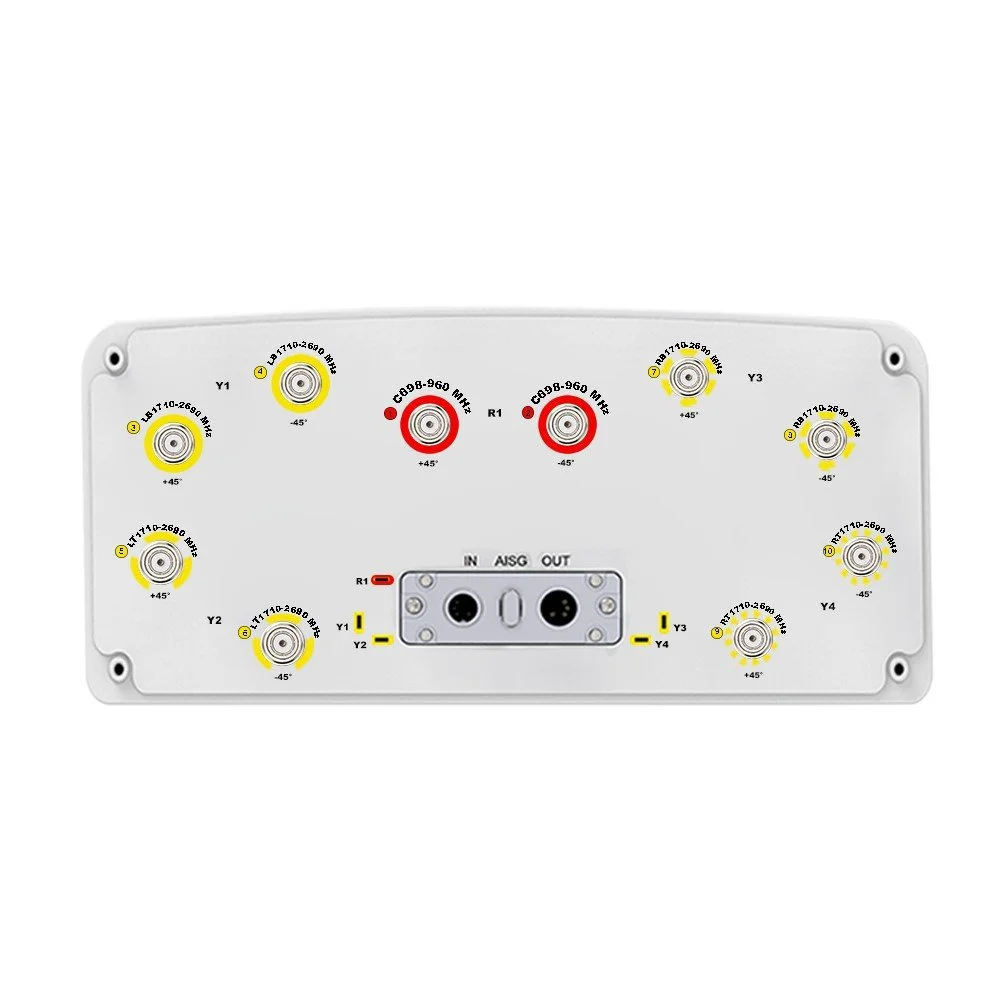

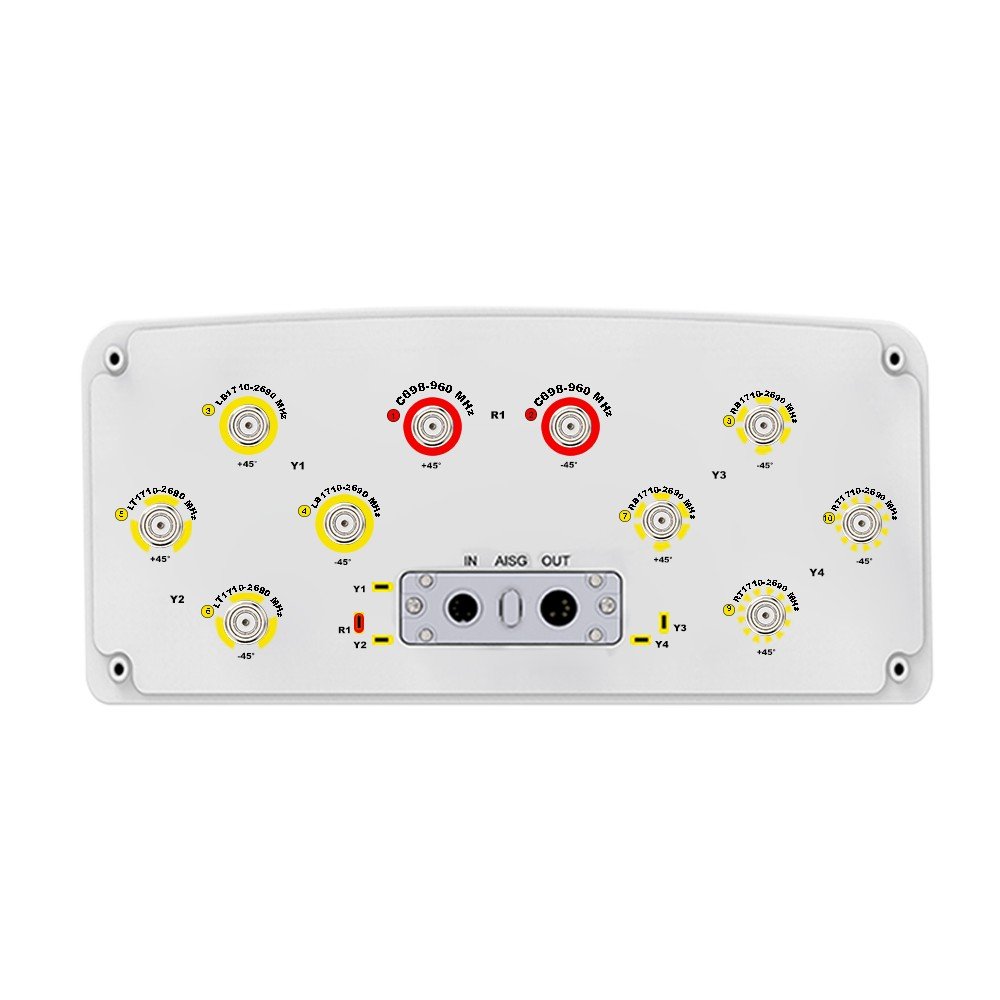

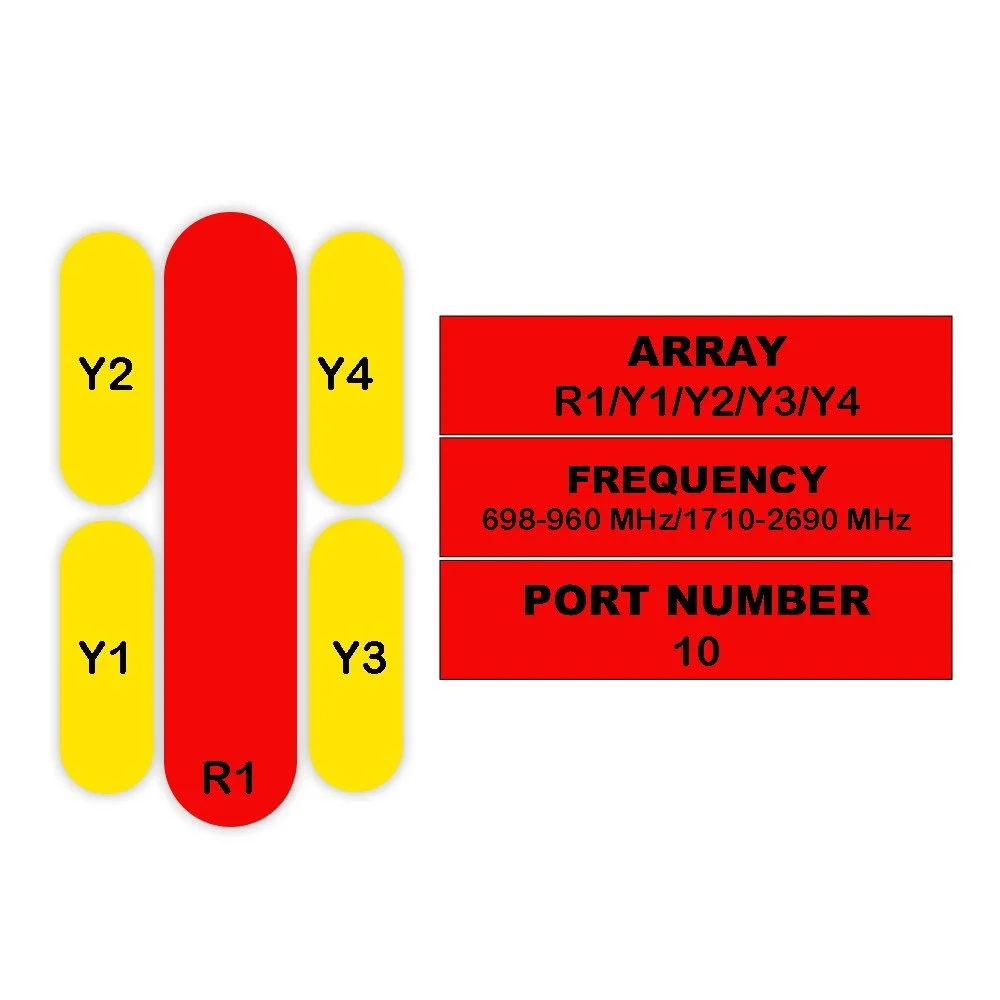

10 independent ports: Supports flexible MIMO and sectorization strategies (e.g., 4x4 MIMO with additional diversity/backup ports).
Wideband design: Single-aperture solution reduces tower clutter and simplifies inventory.
High gain: Optimized element pattern for consistent sector coverage and improved link budget.
Low inter-port coupling: Minimizes MIMO correlation and preserves throughput performance.
Dual-polarized elements: Cross-polarization design for enhanced diversity and polarization discrimination.

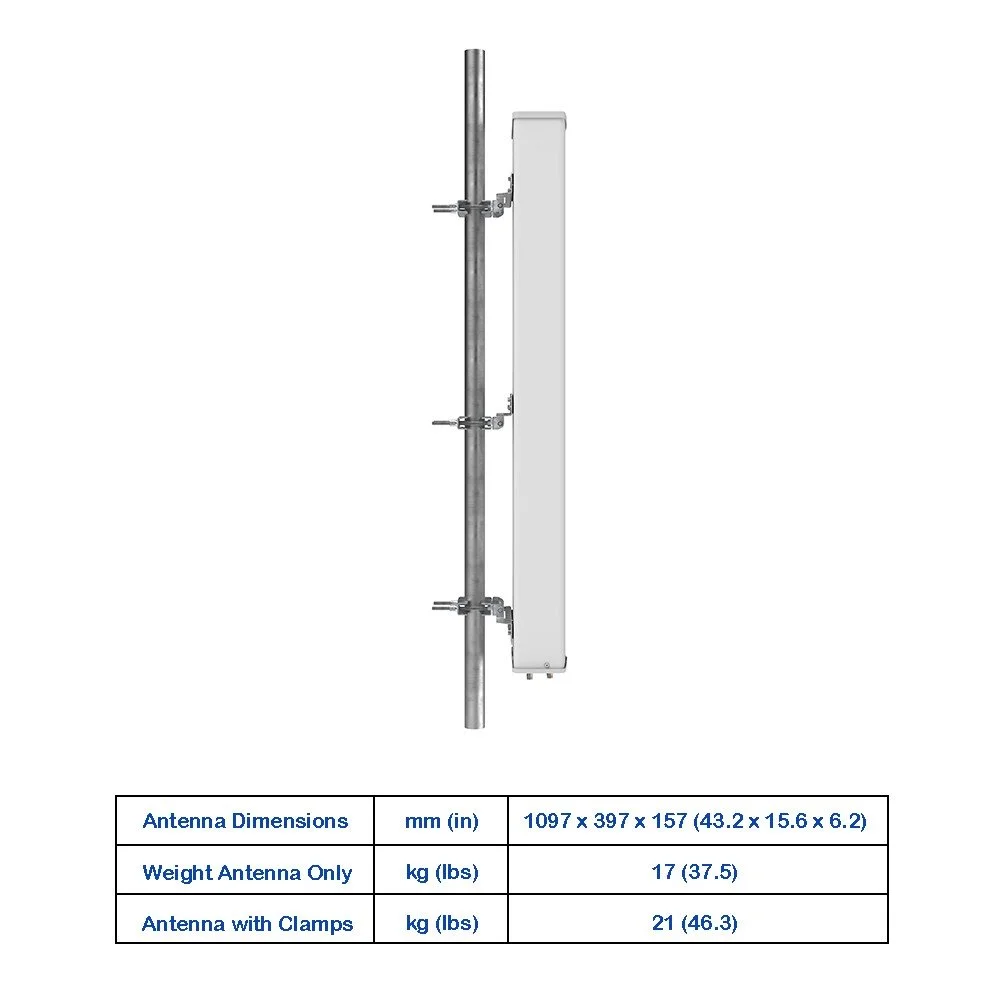

Durable radome and mounting: Weatherproof, UV-stable radome with integrated mounting hardware for quick installation on towers and walls.
Lightning and surge protection options: Built-in provisions or accessory modules available to meet site safety requirements.
RoHS compliant and manufactured to industry quality standards.
