10-Port Panel Antenna (690–3800 MHz)

Overview : A high-performance 10-port panel antenna engineered for multi-operator, multi-band macro coverage and in-building DAS deployments. Covers 690–3800 MHz continuously to support 2G/3G/4G/5G Sub-6 GHz bands with low profile, wideband operation and per-port MIMO/sectorization.

Key Features :

  • Frequency range: 690–3800 MHz (continuous)

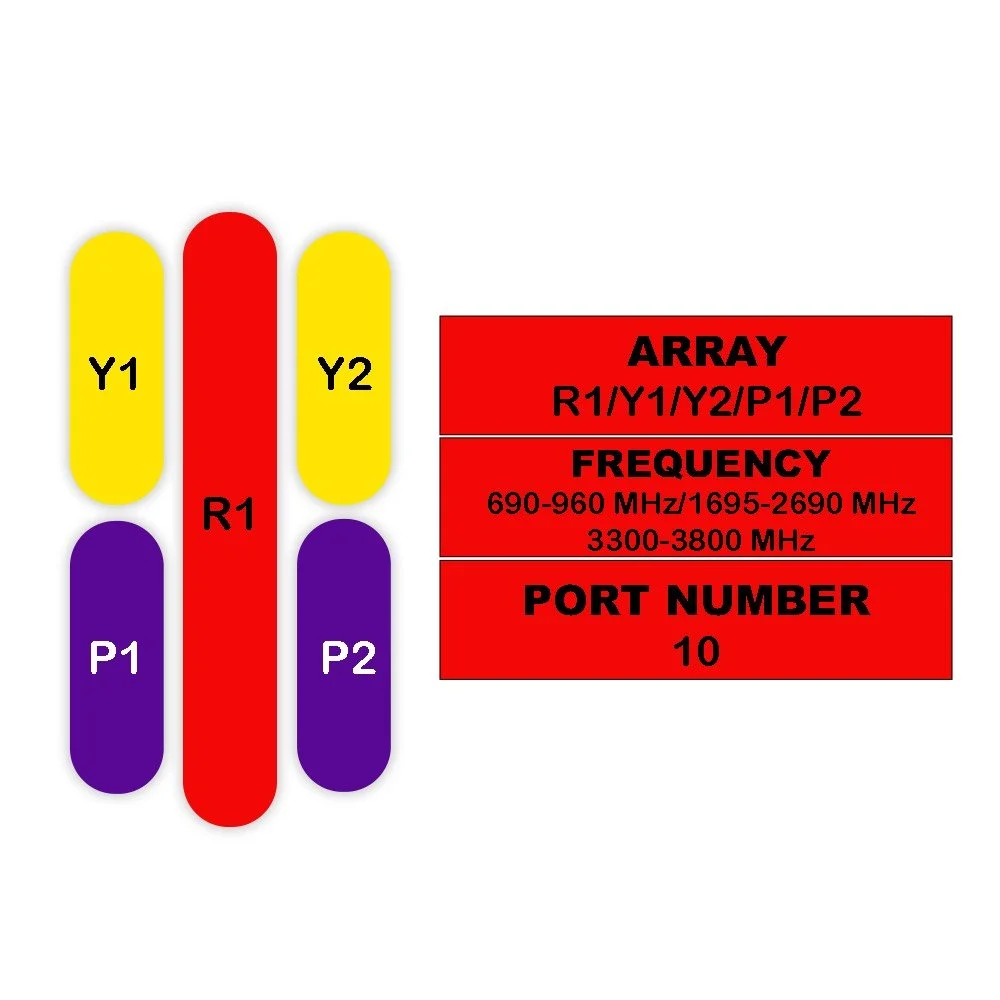

  • 10 ports: flexible mapping for multiple carriers, sectors or MIMO layers

  • Wideband design supports FDD/TDD operation and modern carrier aggregation schemes

  • High gain across bands for extended coverage and improved link budget

  • Low VSWR across frequency range for efficient power transfer

  • Port isolation optimized to minimize inter-port interference

  • Durable radome and corrosion-resistant mounting hardware for outdoor use

  • Compact, slim-line panel profile for aesthetic rooftop and façade installations

  • IP65/67-rated for harsh environments

  • Lightning protection and grounding provisions compliant with industry practice

10-Port Panel Antenna (690–3800 MHz)

Overview : A high-performance 10-port panel antenna engineered for multi-operator, multi-band macro coverage and in-building DAS deployments. Covers 690–3800 MHz continuously to support 2G/3G/4G/5G Sub-6 GHz bands with low profile, wideband operation and per-port MIMO/sectorization.

Key Features :

  • Frequency range: 690–3800 MHz (continuous)

  • 10 ports: flexible mapping for multiple carriers, sectors or MIMO layers

  • Wideband design supports FDD/TDD operation and modern carrier aggregation schemes

  • High gain across bands for extended coverage and improved link budget

  • Low VSWR across frequency range for efficient power transfer

  • Port isolation optimized to minimize inter-port interference

  • Durable radome and corrosion-resistant mounting hardware for outdoor use

  • Compact, slim-line panel profile for aesthetic rooftop and façade installations

  • IP65/67-rated for harsh environments

  • Lightning protection and grounding provisions compliant with industry practice

Electrical Specifications Table
Electrical Specifications
Parameter Unit 690-806 790-894 880-960 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690 3300-3590 3600-3800
Polarization — ±45°
Gain (Mid Tilt) dBi 1515.515.815.515.816.116.416.417.417.6
Gain (All Tilts) dBi 14.8 ±0.615.3 ±0.615.6 ±0.615.3 ±0.615.6 ±0.515.9 ±0.516.2 ±0.616.2 ±0.617.2 ±0.717.4 ±0.7
Horizontal Beamwidth deg 69 ±4.567 ±4.165 ±4.568 ±6.566 ±6.164 ±6.162 ±5.162 ±5.964 ±6.560 ±6.5
Vertical Beamwidth deg 11.6 ±1.110.4 ±0.99.3 ±0.89.5 ±0.68.8 ±0.68.2 ±0.67.2 ±0.56.5 ±0.45.5 ±0.95.0 ±0.8
Electrical Downtilt deg 2–12
Tilt Accuracy deg <1<1<1<1<1<1<1<1<1<1
Front-to-Back Ratio ±30° dB ≥23≥24≥25>25>25>25>26>26>25>25
Cross Polar Discrimination dB ≥8≥7≥6>7>8>8>6>4>5>5
Isolation (Cross-Polar) dB >28 >26 >28
Impedance Ohm 50
VSWR — <1.5
Return Loss dB >14
PIM3 (2×43 dBm) dBc <-150
Lightning Protection — DC Ground
Max Input Power (50°C) W 250 200 150
Mechanical Specifications Table
Mechanical Specifications
Parameter Sub-Category Unit Value

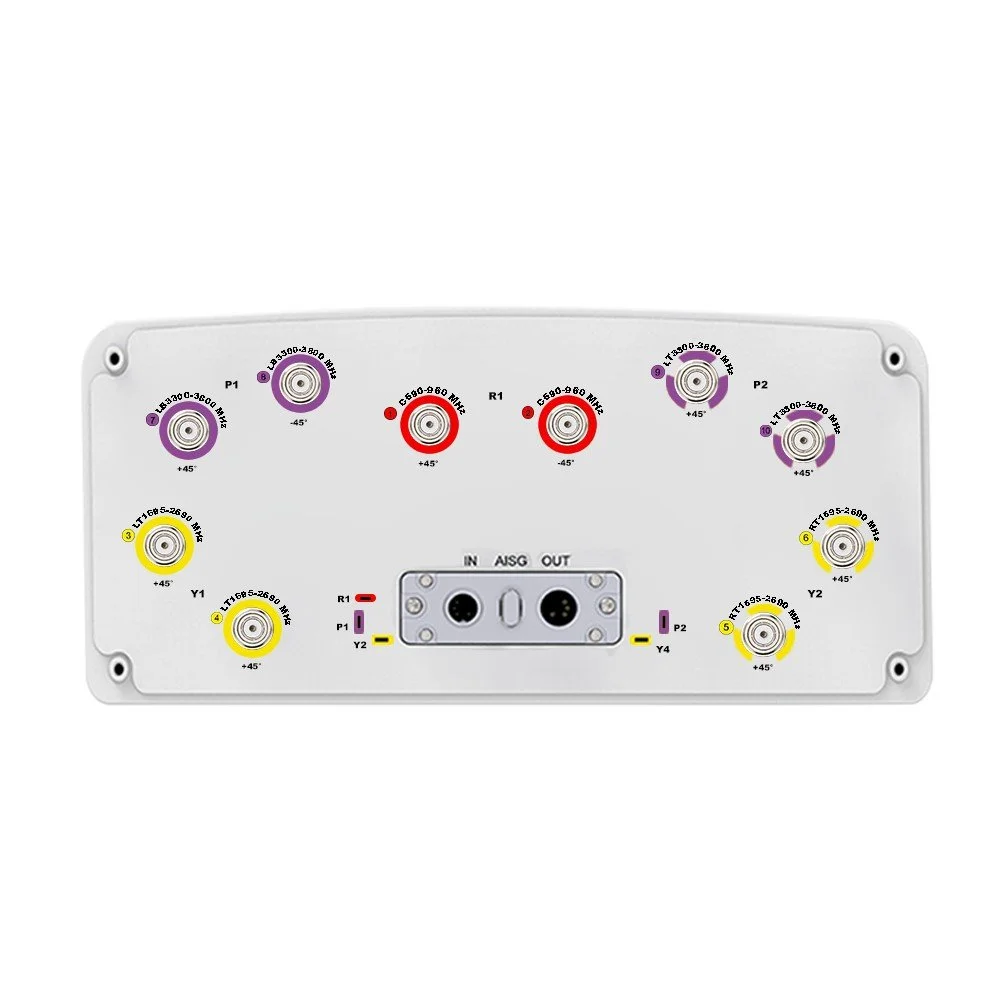

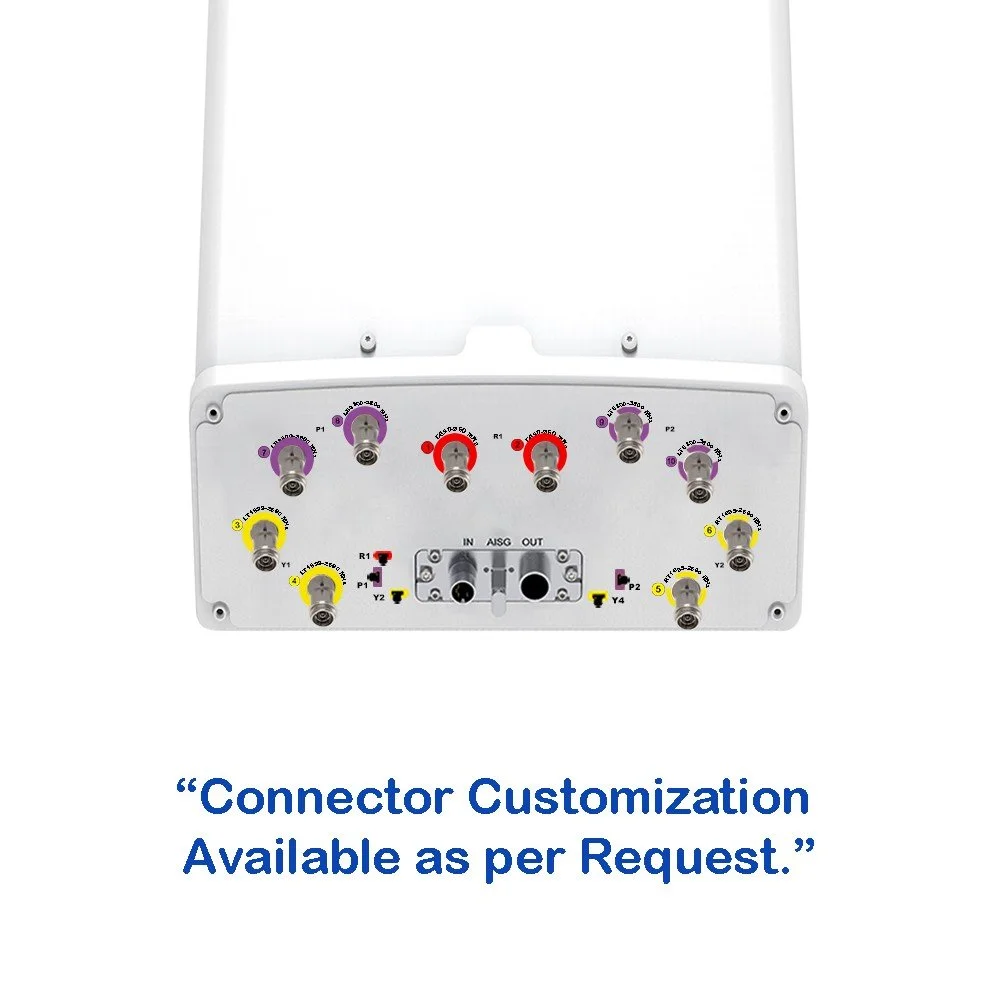

Connector Type — — (10x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

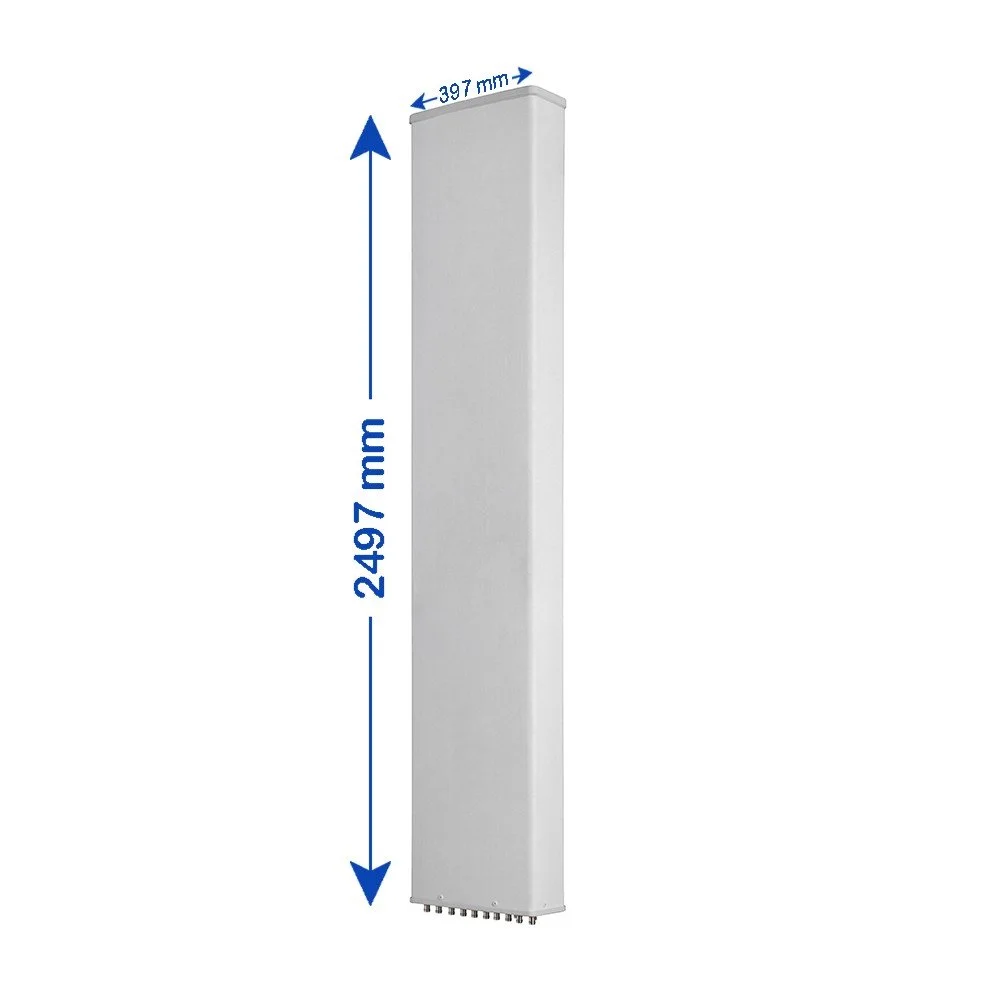

Antenna Dimensions (H × W × D) — mm (in) 1997 × 397 × 157 (78.6 × 15.6 × 6.2)
Antenna Weight Antenna Only kg (lbs) 27.5 (60.6)
With Clamps kg (lbs) 33 (72.8)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load @ 150 km/h Frontal N (lbf) 735 (165.2)
Rear N (lbf) 820 (184.3)
Lateral N (lbf) 360 (80.9)
Operating Temperature — °C (°F) -40 to +60 (-40 to 140)
