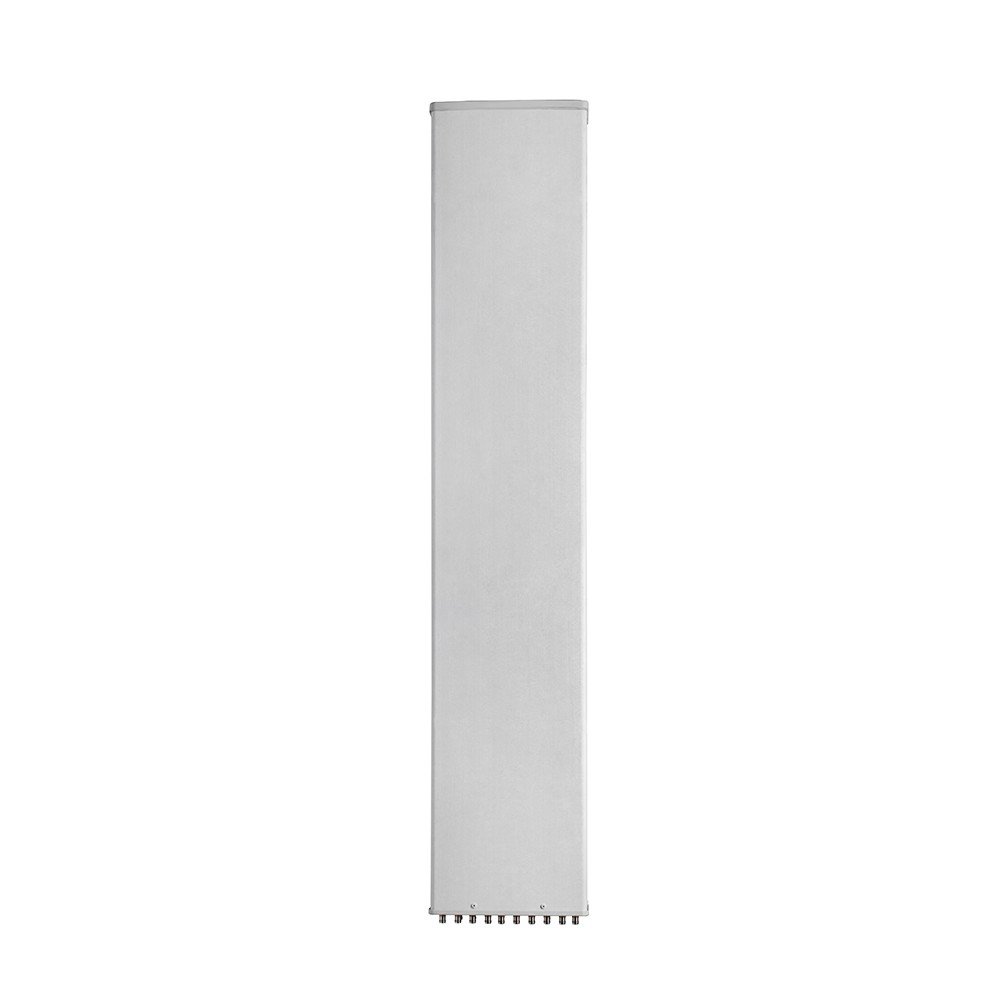

10-Port, Panel Antenna ( 690 - 3800 MHz )

₹0.00

10‑Port Panel Antenna (690–3800 MHz)

Overview : A high-performance, multi-port panel antenna engineered for modern multi-operator and multi-band wireless deployments. Covers 690–3800 MHz to support 4G/5G NR, LTE, and legacy cellular bands across sub‑6 GHz. Ten independent ports provide flexible MIMO, carrier aggregation, and multi-operator configurations from a single compact radome.

Key Features :

  • Wideband coverage: 690–3800 MHz continuous frequency range for FDD/TDD 4G and 5G bands.

  • Ten RF ports: Configurable for multiple MIMO chains, sector splitting, or simultaneous connection to several baseband/remote radio units.

  • High isolation: Designed port-to-port isolation to minimize inter-path interference and preserve MIMO performance.

  • Compact panel form factor: Slim, low‑profile enclosure for ease of rooftop or tower installation and minimal wind load.

  • Low VSWR & high efficiency: Optimized matching across the full band to deliver low return loss and consistent radiation efficiency.

  • Durable construction: UV-stable radome and corrosion-resistant mounting hardware rated for harsh outdoor environments.

  • Multi-band filtering options: Integrated or add-on filter modules available to suppress out-of-band signals and improve coexistence.

  • Tilt and azimuth adjustable mount: Fine mechanical aiming to optimize coverage and sector overlap.

  • Lightning and grounding: Built-in grounding provisions and surge protection options for robust site protection.

10‑Port Panel Antenna (690–3800 MHz)

Overview : A high-performance, multi-port panel antenna engineered for modern multi-operator and multi-band wireless deployments. Covers 690–3800 MHz to support 4G/5G NR, LTE, and legacy cellular bands across sub‑6 GHz. Ten independent ports provide flexible MIMO, carrier aggregation, and multi-operator configurations from a single compact radome.

Key Features :

  • Wideband coverage: 690–3800 MHz continuous frequency range for FDD/TDD 4G and 5G bands.

  • Ten RF ports: Configurable for multiple MIMO chains, sector splitting, or simultaneous connection to several baseband/remote radio units.

  • High isolation: Designed port-to-port isolation to minimize inter-path interference and preserve MIMO performance.

  • Compact panel form factor: Slim, low‑profile enclosure for ease of rooftop or tower installation and minimal wind load.

  • Low VSWR & high efficiency: Optimized matching across the full band to deliver low return loss and consistent radiation efficiency.

  • Durable construction: UV-stable radome and corrosion-resistant mounting hardware rated for harsh outdoor environments.

  • Multi-band filtering options: Integrated or add-on filter modules available to suppress out-of-band signals and improve coexistence.

  • Tilt and azimuth adjustable mount: Fine mechanical aiming to optimize coverage and sector overlap.

  • Lightning and grounding: Built-in grounding provisions and surge protection options for robust site protection.

Electrical Specifications

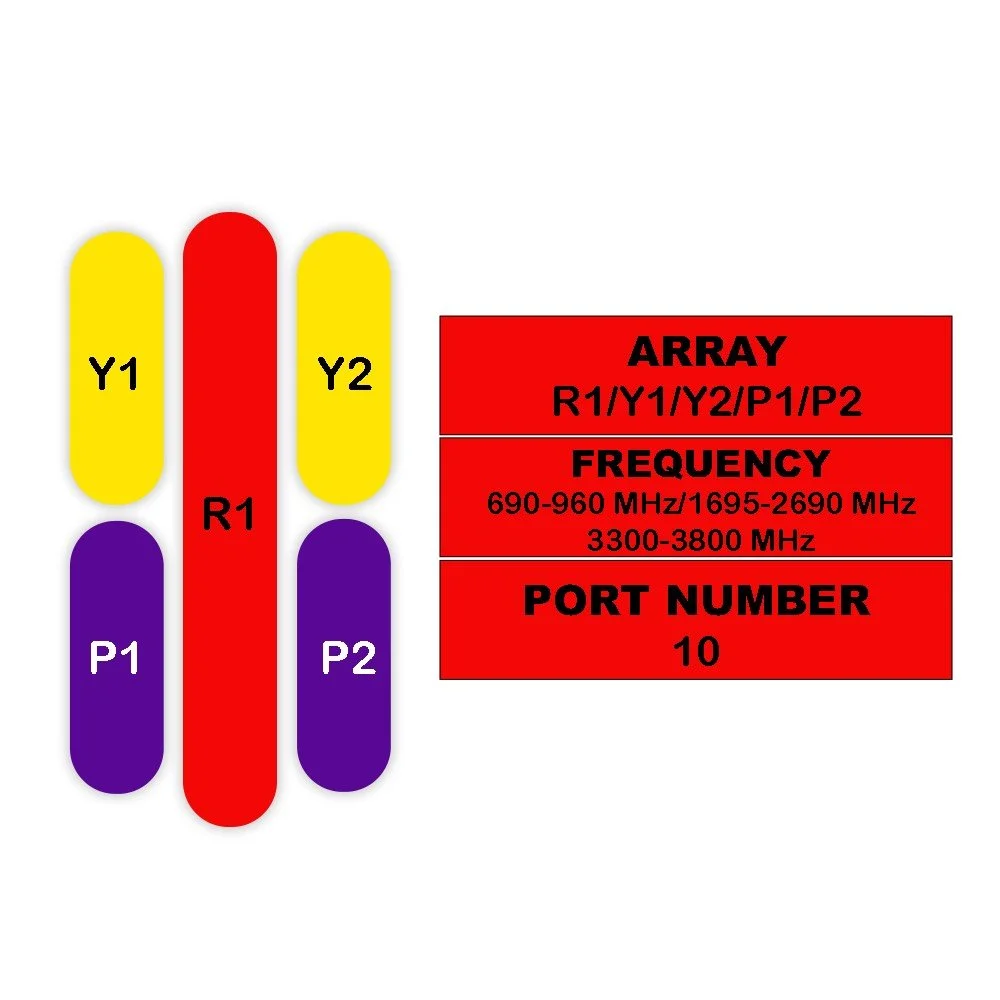

Parameter Sub Unit R1 Y1 / Y2 P1 / P2
690-806 790-894 880-960 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690 3300-3590 3600-3800
Frequency Range — MHz 690–960 1695–2690 3300–3800
Polarization — — ±45° ±45° ±45°
Gain At Mid Tilt dBi 1515.515.8 15.515.816.116.416.4 17.417.6
Over All Tilts dBi 14.8 ± 0.615.3 ± 0.615.6 ± 0.6 15.3 ± 0.615.6 ± 0.515.9 ± 0.5 16.2 ± 0.616.2 ± 0.6 17.2 ± 0.717.4 ± 0.7
Horizontal Beamwidth — degree 69 ± 4.567 ± 4.165 ± 4.5 68 ± 6.566 ± 6.164 ± 6.1 62 ± 5.162 ± 5.9 64 ± 6.560 ± 6.5
Vertical Beamwidth — degree 11.6 ± 1.110.4 ± 0.99.3 ± 0.8 9.5 ± 0.68.8 ± 0.68.2 ± 0.6 7.2 ± 0.56.5 ± 0.4 5.5 ± 0.95.0 ± 0.8
Electrical Downtilt Adjustable degree 2–12 2–12 2–12
Tilt Accuracy — degree < 1
Upper Side Lobe Suppression First Upper Lobe dB ≥16≥16≥16 >15>15>15>15>15 >15>15
20° Sector Above Main Beam dB >15>15>15 >14>14>14>14>14 ——
Front-to-Back Ratio ±30° — dB ≥23≥24≥25 >25>25>25 >26>26 >25>25
Cross Polar Discrimination At Boresight dB ≥17≥18≥17 >16>16>16 >17>17 >15>15
Isolation Cross-Polar dB >28 >26 >28
Isolation Port-to-Port dB >28 >28 >28
Impedance — Ohm 50
VSWR — — < 1.5
Return Loss — dB > 14
PIM3 (2×43 dBm Carrier) — dBc < -150
Lightning Protection — — DC Ground
Max Input Power per Port (50°C) — Watts 250 200 150
Mechanical Specifications

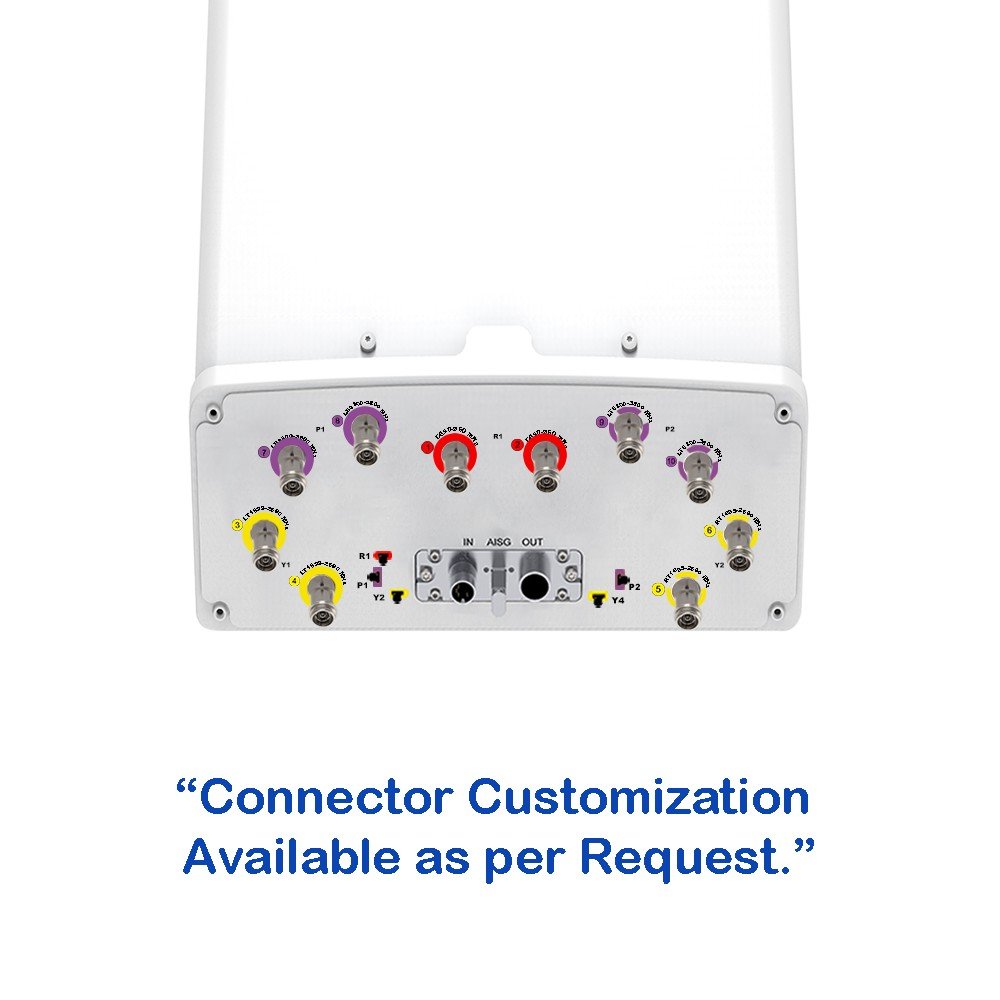

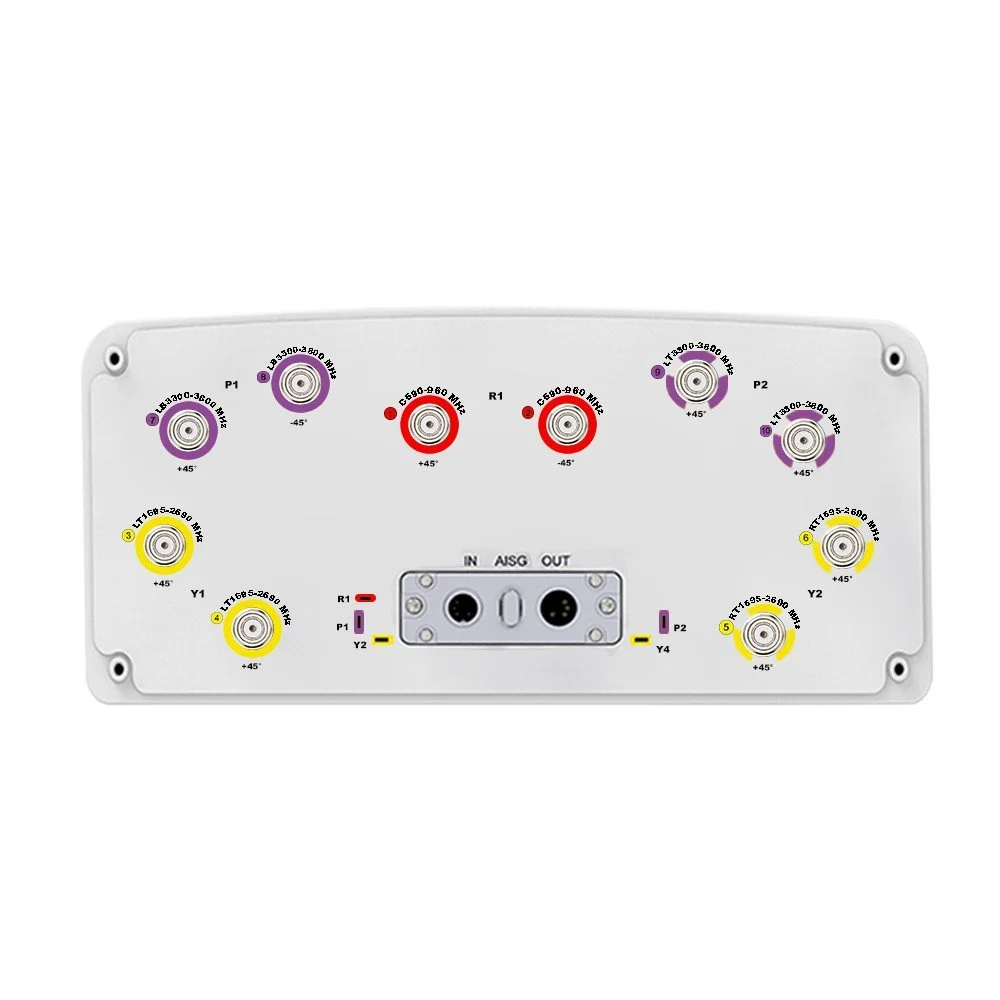

Connector Type --- (10x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- Fiberglass

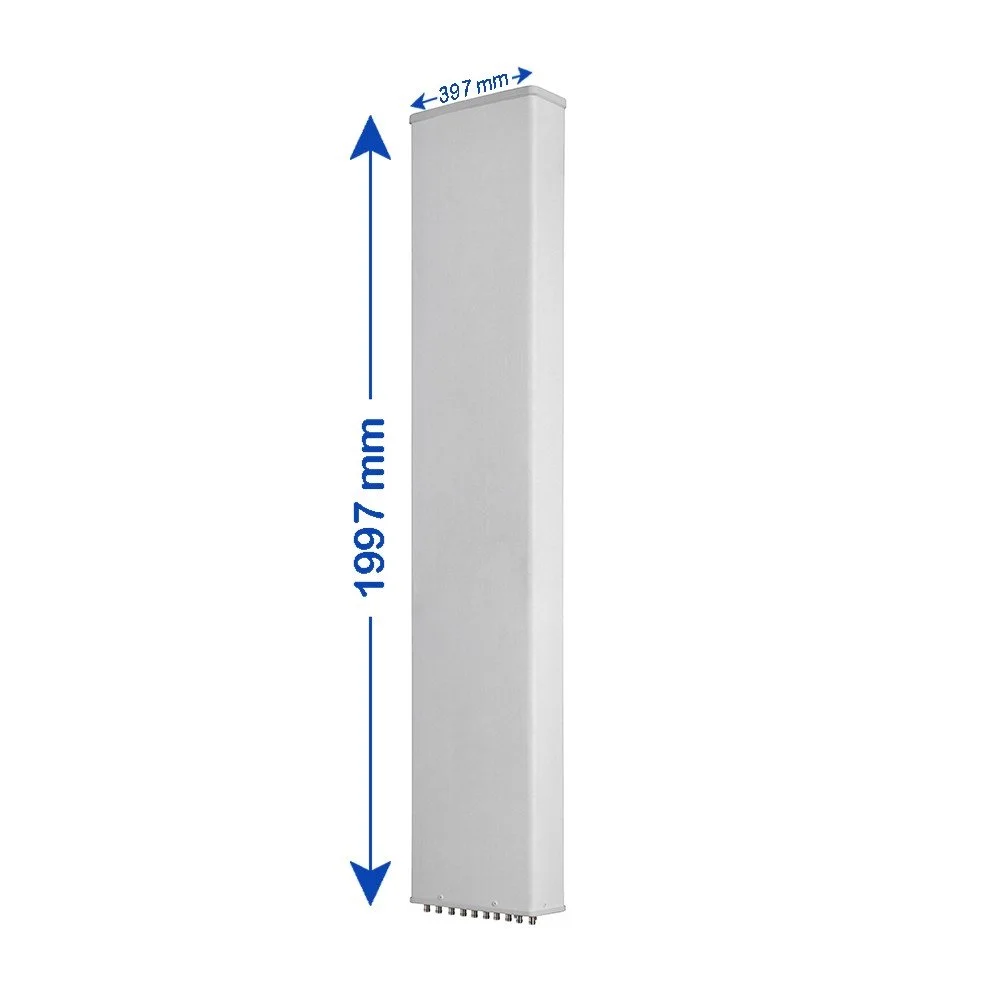

Antenna Dimensions (H × W × D) mm (in) 1997 × 397 × 157 (78.6 × 15.6 × 6.2)
Antenna Weight Antenna Only
kg (lbs)		 27.5 (60.6)
With Clamps
kg (lbs)		 33 (72.8)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal
N (lbf)		 735 (165.2)
Rear
N (lbf)		 820 (184.3)
Lateral
N (lbf)		 360 (80.9)
Operating Temperature °C (°F) -40 to +60 (-40 to 140)
