10-Port, Panel Antenna ( 690 - 2690 MHz )

₹0.00

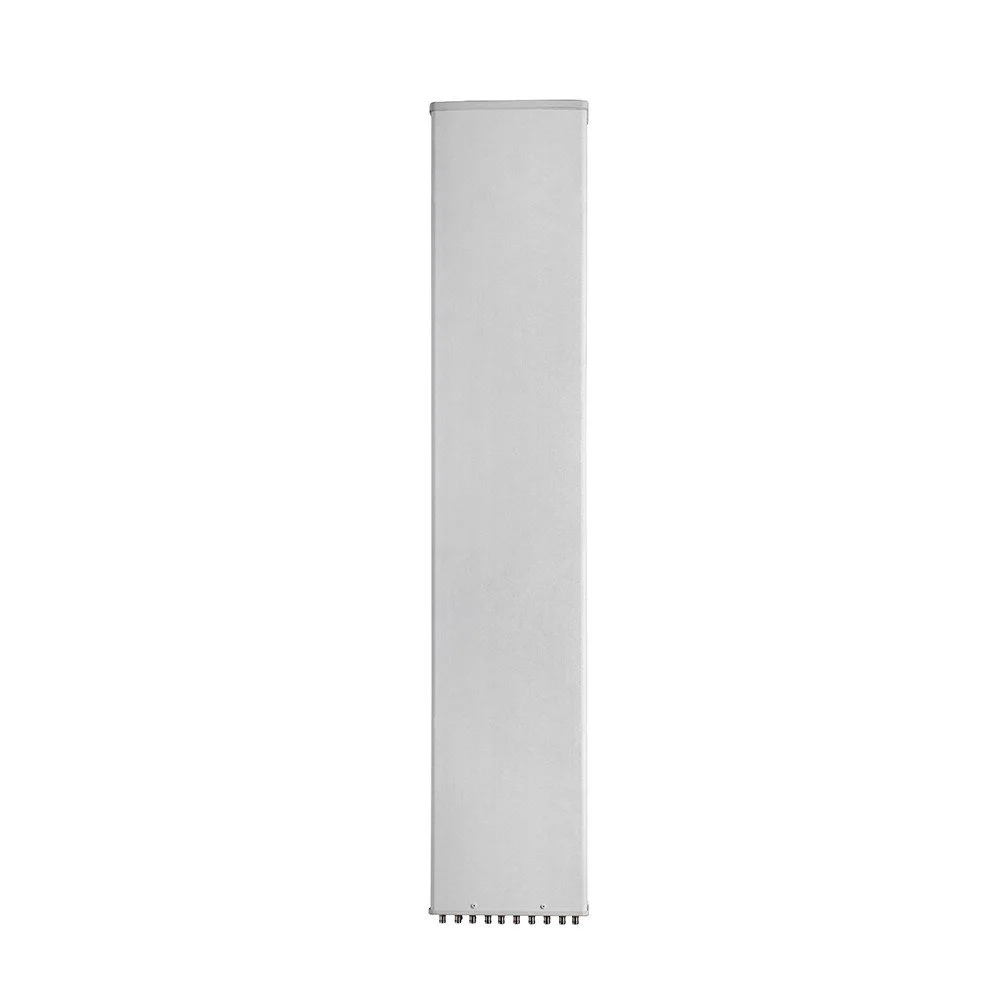

10-Port Panel Antenna (690–2690 MHz)

Overview :

A compact, high-performance 10-port panel antenna designed for multi-band cellular applications spanning 690–2690 MHz. Engineered for macro and small-cell deployments, in-building coverage, DAS, and neutral host systems, this antenna supports multiple MIMO and carrier aggregation configurations across low and mid cellular bands.

Key Features :

  • Wide frequency coverage: 690–2690 MHz to support LTE (Band 12/13/17/5/4/2/25/26/66 etc.), NB-IoT, LTE-M, and FDD/TDD variants.

  • Ten independent ports: Configurable for multiple MIMO layers, cross-polarized pairs, or cell-splitting architectures.

  • High isolation and low inter-port coupling to maximize MIMO performance and minimize correlation.

  • Compact, low-profile panel housing for easy wall, mast, or pole mounting.

  • Durable outdoor enclosure with IP65/IP66 rating for reliable operation in harsh environments.

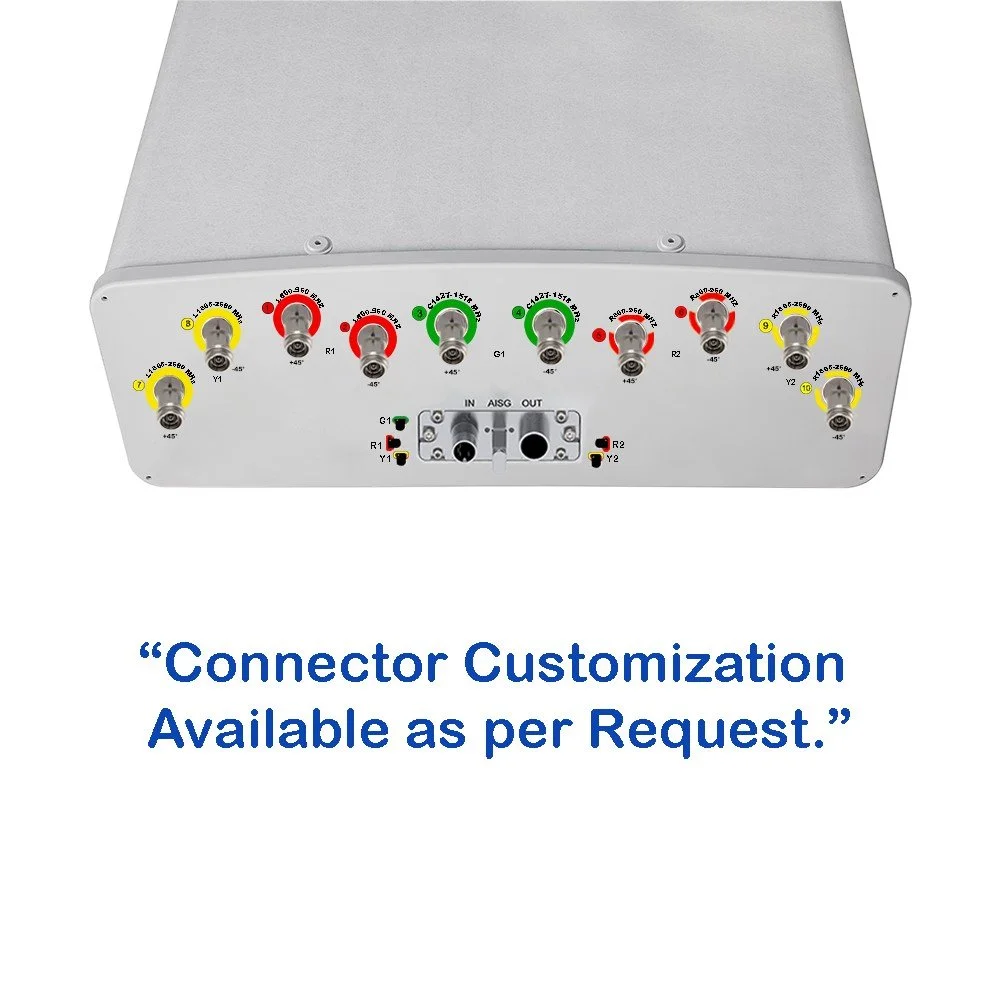

  • RoHS-compliant materials and industry-standard RF connectors (SMA/4.3-10 options available on request).

  • Lightweight design for reduced installation labor and simplified mounting.

10-Port Panel Antenna (690–2690 MHz)

Overview :

A compact, high-performance 10-port panel antenna designed for multi-band cellular applications spanning 690–2690 MHz. Engineered for macro and small-cell deployments, in-building coverage, DAS, and neutral host systems, this antenna supports multiple MIMO and carrier aggregation configurations across low and mid cellular bands.

Key Features :

  • Wide frequency coverage: 690–2690 MHz to support LTE (Band 12/13/17/5/4/2/25/26/66 etc.), NB-IoT, LTE-M, and FDD/TDD variants.

  • Ten independent ports: Configurable for multiple MIMO layers, cross-polarized pairs, or cell-splitting architectures.

  • High isolation and low inter-port coupling to maximize MIMO performance and minimize correlation.

  • Compact, low-profile panel housing for easy wall, mast, or pole mounting.

  • Durable outdoor enclosure with IP65/IP66 rating for reliable operation in harsh environments.

  • RoHS-compliant materials and industry-standard RF connectors (SMA/4.3-10 options available on request).

  • Lightweight design for reduced installation labor and simplified mounting.

Antenna Electrical Specifications Table

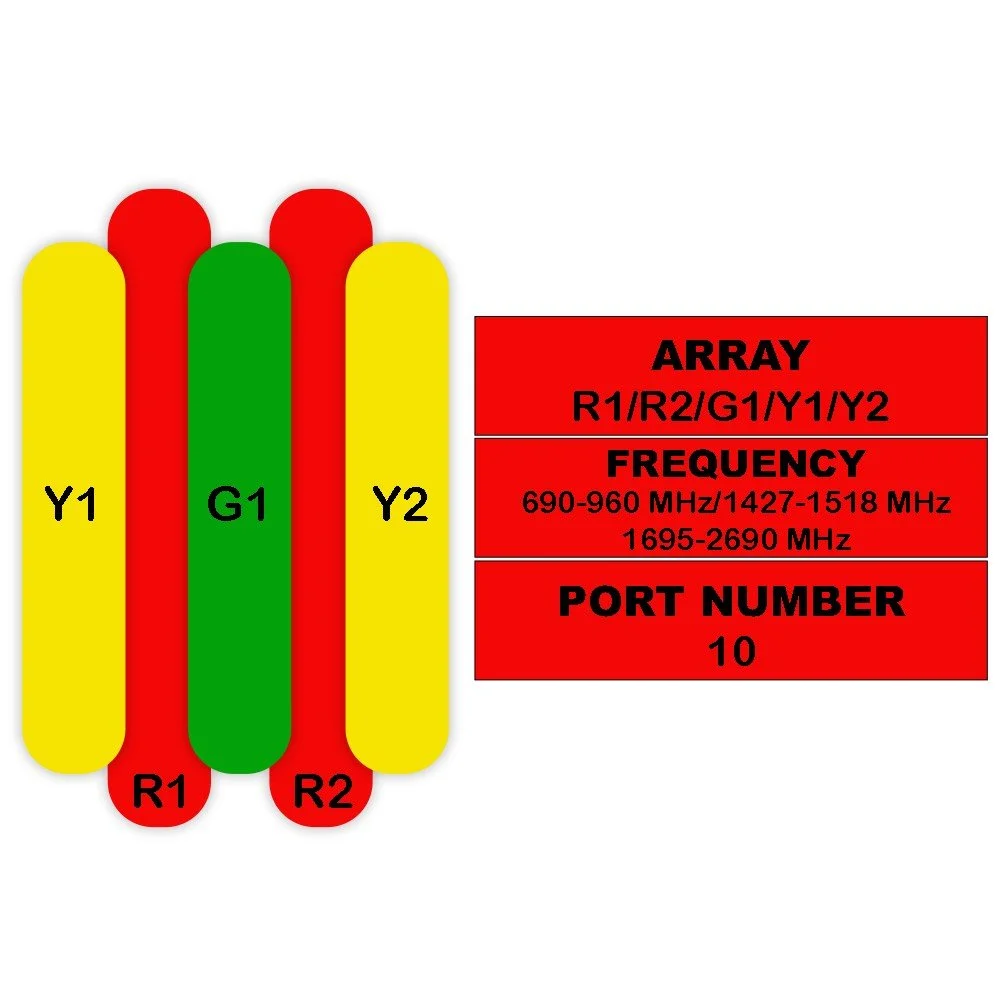

R1 / R2 (690–960 MHz) G1 (1427–1518 MHz) Y1 / Y2 (1695–2690 MHz)
Parameter Sub Unit 690–806 790–894 880–960 1427–1518 1695–1880 1850–1990 1920–2170 2300–2400 2490–2690
Polarization — ±45° ±45° ±45°
Gain at Mid Tilt dBi 14.815.115.5 16 16.616.917.217.417.4
Over All Tilts dBi 14.6 ±0.614.9 ±0.615.3 ±0.6 15.8 ±0.6 16.4 ±0.616.7 ±0.517.0 ±0.517.2 ±0.517.2 ±0.5
Horizontal Beamwidth degree 68 ±5.466 ±5.663 ±4.6 71 ±6.5 70 ±6.568 ±6.166 ±6.164 ±5.564 ±6.5
Vertical Beamwidth degree 11.6 ±0.99.4 ±0.610.3 ±0.7 7.8 ±0.6 6.8 ±0.66.4 ±0.56.0 ±0.55.2 ±0.44.8 ±0.6
Electrical Downtilt degree 2–12 2–12 2–12
Tilt Accuracy degree <1<1<1 <1 <1<1<1<1<1
Upper Side Lobe First Upper Lobe dB >16>16>16 >15 >15>15>15>15>15
Suppression Peak to 20° dB >15>15>15 >14 >14>14>14>14>14
Front-To-Back Ratio ±30° dB >22>23>24 >25 >23>23>24>25>25
Cross Polar at Boresight dB >18>18>18 >17 >16>16>16>17>17
Discrimination Over Sector dB >9.0>7.0>6.0 >6.0 >7.0>8.0>8.0>6.0>4.0
Isolation Cross-Polar dB >26 >26 >26
Port-to-Port dB >26 (R1//R2), >28 (R1//Y1,G1,Y2) >28 >28
Impedance Ohm 50 50 50
VSWR — <1.5 <1.5 <1.5
Return Loss dB >14 >14 >14
PIM3 (2x43 dBm) dBc <-150 <-150 <-150
Lightning Protection — DC Ground DC Ground DC Ground
Max Input Power (50°C) Watts 250 200 200
Mechanical Specifications Table
Mechanical Specifications Sub Unit Value

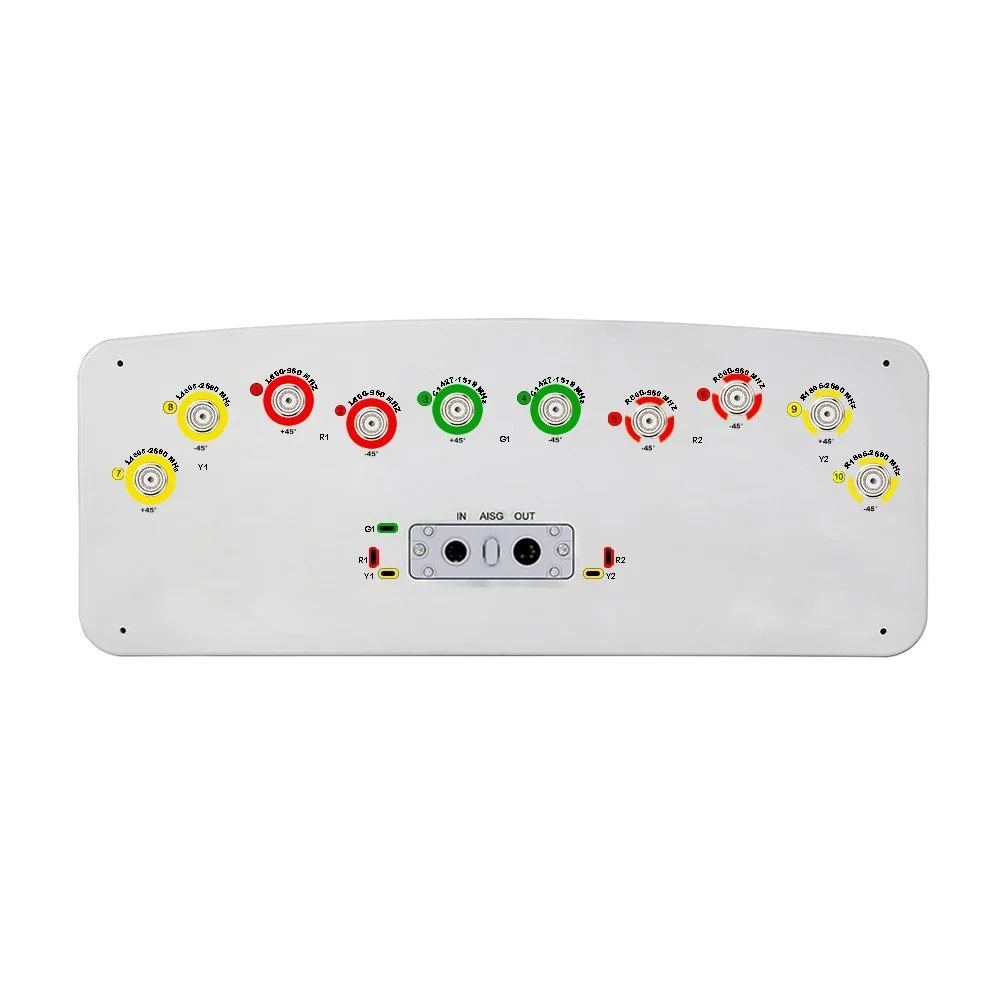

Connector Type — (10x) 4.3/10 Female
Connector Position — Bottom
Electrical Tilt Control — Integrated RET
Radome Material — Fiberglass

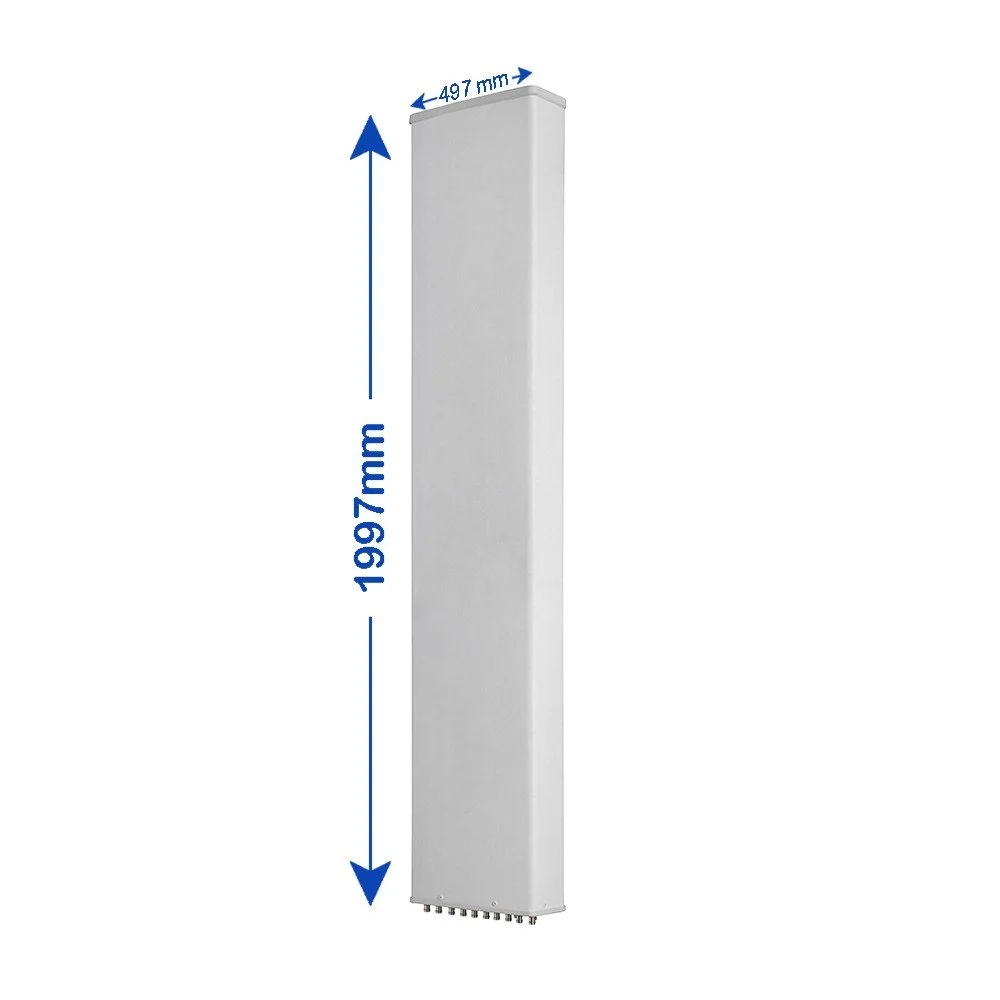

Antenna Dimensions (H × W × D) mm (in) 1997 × 497 × 197 (78.6 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 35 (77.2)
with Clamps kg (lbs) 40.5 (89.3)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 920 (206.8)
Rear N (lbf) 1025 (230.4)
Lateral N (lbf) 450 (101.2)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
