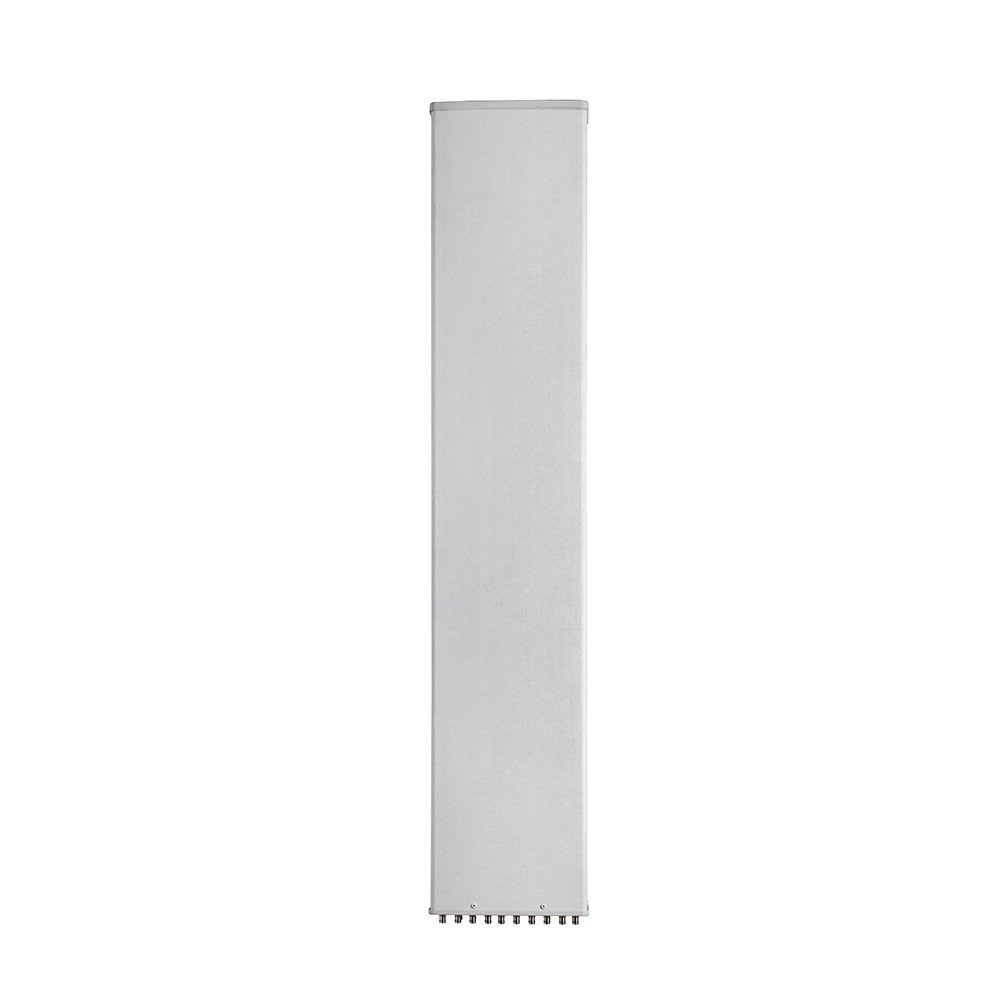

10-Port Hybrid Panel Split-Beam Sector Antenna (698–2690 MHz)
Overview :
This hybrid panel split-beam sector antenna delivers wideband coverage across 698–2690 MHz with 10 antenna ports for flexible multi-operator or multi-band deployments. Engineered for high throughput, interference suppression, and simplified site integration, the antenna combines split-beam pattern control with precise port isolation to optimize spectral reuse and capacity in dense macro and small cell environments.
Key Features :
Frequency range: 698–2690 MHz (full coverage for low-band through mid-band LTE and 3G)

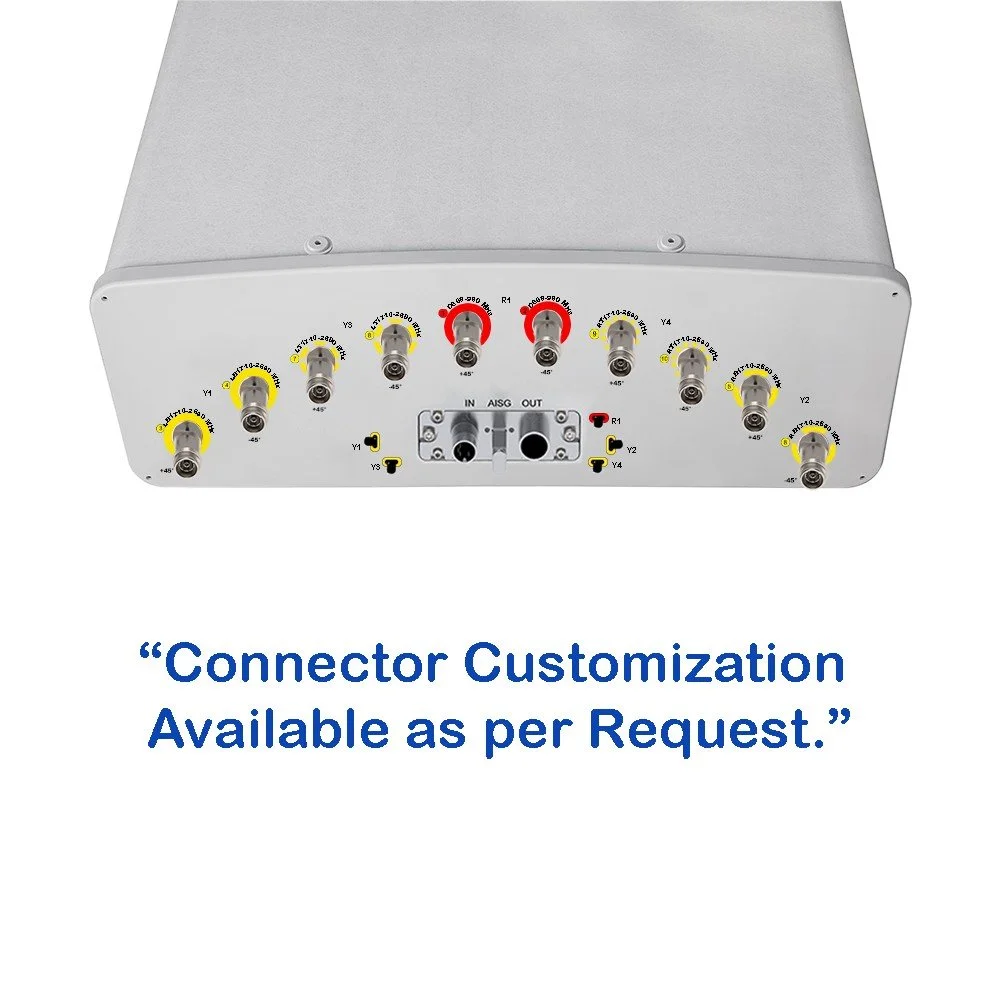

10 RF ports: multiple MIMO and multi-carrier configurations supported
Hybrid split-beam design: provides adjustable electrical tilt and sector shaping for improved coverage uniformity and reduced inter-sector interference
High isolation between ports: minimizes cross-coupling for co-located carriers and operators
Gain: optimized across bands for balanced performance (typical per-band gains tuned to operator needs)
Wide vertical beamwidth control: enables flexible downtilt and near/far field adjustments
Low VSWR: ensures efficient power transfer and reduced return losses across the band
Passive DC grounding and surge protection provisions: simplified grounding and lightning resilience
Ruggedized radome and mounting hardware: IP65/66-class environmental protection for coastal and harsh environments

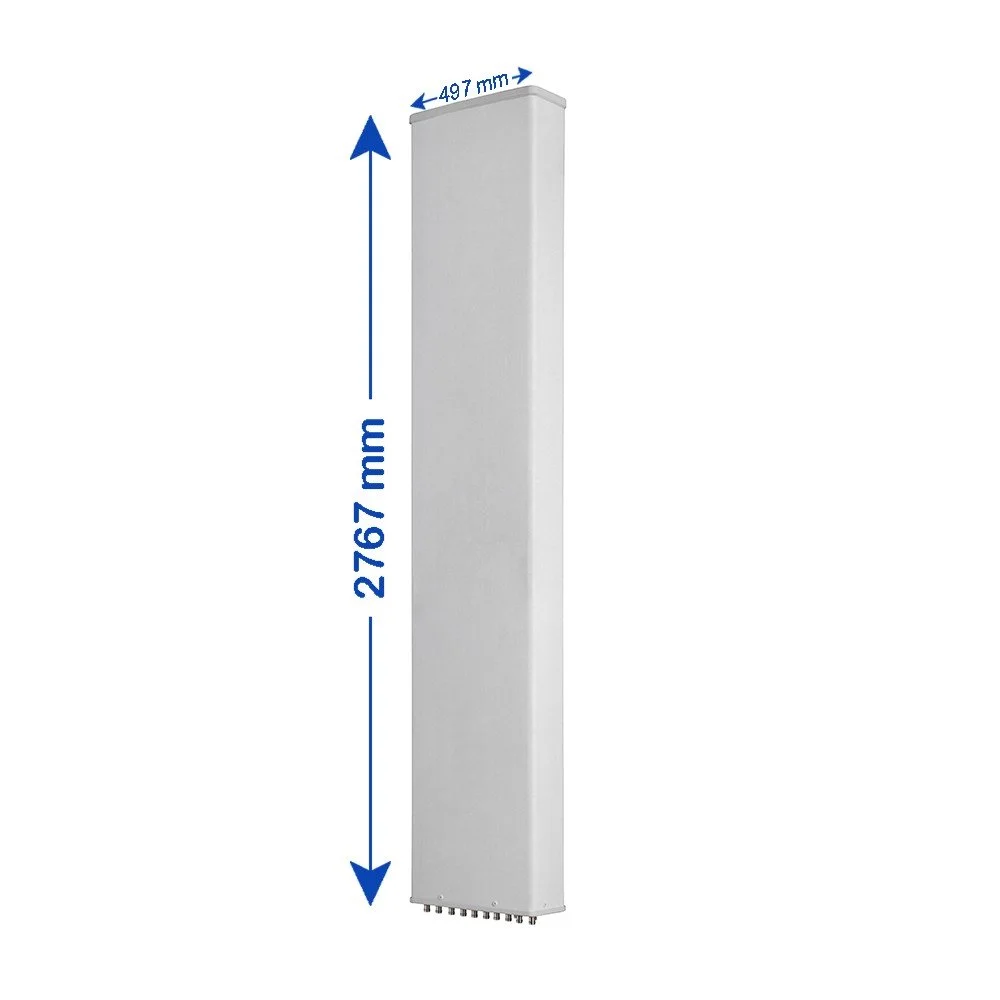

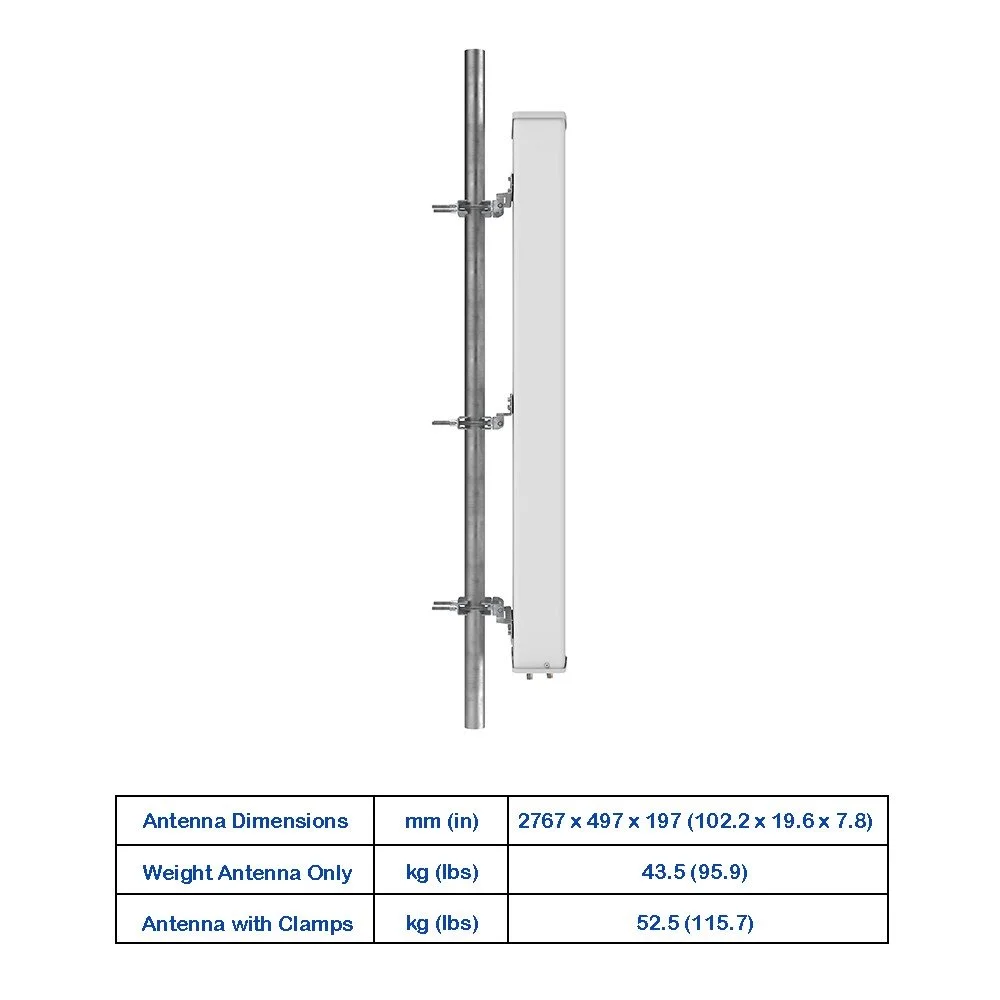

Compact form factor: reduces wind load and facilitates rooftop and tower installations
