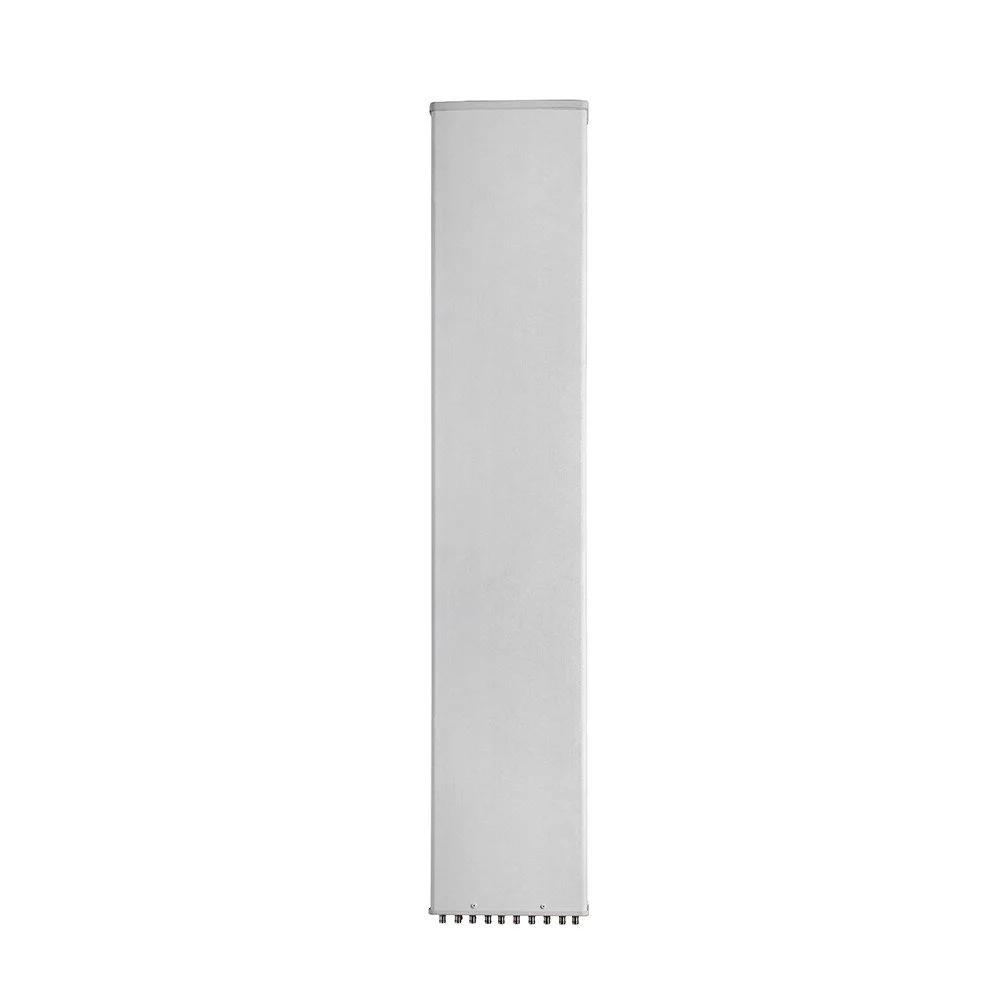

10-Port Hybrid Panel Split‑Beam Sector Antenna (698–2690 MHz)

Overview :

This 10‑port hybrid panel split‑beam sector antenna delivers high‑performance coverage across 698–2690 MHz in a compact, field‑friendly form factor. Engineered for modern multi‑operator and multi‑band deployments, the antenna combines sectorized beam control with integrated split‑beam technology to maximize capacity, spectral efficiency, and interference mitigation in dense urban and suburban sites.

Key features :

  • Frequency range: 698–2690 MHz covering low and mid bands for LTE, NR, and legacy services.

  • 10 antenna ports: supports multi‑operator or multi‑RRU configurations (e.g., 2×2 and 4×4 MIMO mixes).

  • Hybrid panel + split‑beam design: paired sector panel with electronically or RF‑split beams to shape coverage and suppress co‑channel interference.

  • Sectorization options: configurable for 60°, 65°, 70° and other common sector widths via mechanical or RF tiling.

  • High isolation between ports: minimizes inter‑port coupling for simultaneous multi‑operator operation.

  • Low profile, ruggedized enclosure: weatherproof, UV‑stable radome designed for harsh outdoor conditions.

  • Wide mechanical tilt range: adjustable electrical and mechanical downtilt for optimized coverage patterns.

  • Mounting: compatible with common tower and pole brackets; flexible azimuth and elevation adjustments.

  • Lightweight, corrosion‑resistant materials: reduces wind loading and ease of installation.

  • Integrated surge protection: optional in‑line surge devices per port to protect active equipment.

10-Port Hybrid Panel Split‑Beam Sector Antenna (698–2690 MHz)

Overview :

This 10‑port hybrid panel split‑beam sector antenna delivers high‑performance coverage across 698–2690 MHz in a compact, field‑friendly form factor. Engineered for modern multi‑operator and multi‑band deployments, the antenna combines sectorized beam control with integrated split‑beam technology to maximize capacity, spectral efficiency, and interference mitigation in dense urban and suburban sites.

Key features :

  • Frequency range: 698–2690 MHz covering low and mid bands for LTE, NR, and legacy services.

  • 10 antenna ports: supports multi‑operator or multi‑RRU configurations (e.g., 2×2 and 4×4 MIMO mixes).

  • Hybrid panel + split‑beam design: paired sector panel with electronically or RF‑split beams to shape coverage and suppress co‑channel interference.

  • Sectorization options: configurable for 60°, 65°, 70° and other common sector widths via mechanical or RF tiling.

  • High isolation between ports: minimizes inter‑port coupling for simultaneous multi‑operator operation.

  • Low profile, ruggedized enclosure: weatherproof, UV‑stable radome designed for harsh outdoor conditions.

  • Wide mechanical tilt range: adjustable electrical and mechanical downtilt for optimized coverage patterns.

  • Mounting: compatible with common tower and pole brackets; flexible azimuth and elevation adjustments.

  • Lightweight, corrosion‑resistant materials: reduces wind loading and ease of installation.

  • Integrated surge protection: optional in‑line surge devices per port to protect active equipment.

Electrical Specifications
Electrical Specifications
Parameter Unit 698–803 824–880 880–960 1710–1880 1920–2170 2500–2690
Model — R1 Y1 / Y2 / Y3 / Y4
Frequency Range MHz 698–960 1710–2690
Polarization — ±45° ±45°
Gain (Mid Tilt) dBi 15.8 16.3 16.6 18.6 19.0 19.6
Gain (All Tilts) dBi 15.7 ± 0.6 16.2 ± 0.6 16.5 ± 0.6 18.5 ± 0.5 18.9 ± 0.5 19.5 ± 0.5
Horizontal Beamwidth degree 69 ± 6 66 ± 6 63 ± 6 40 ± 3 36 ± 3 30 ± 3

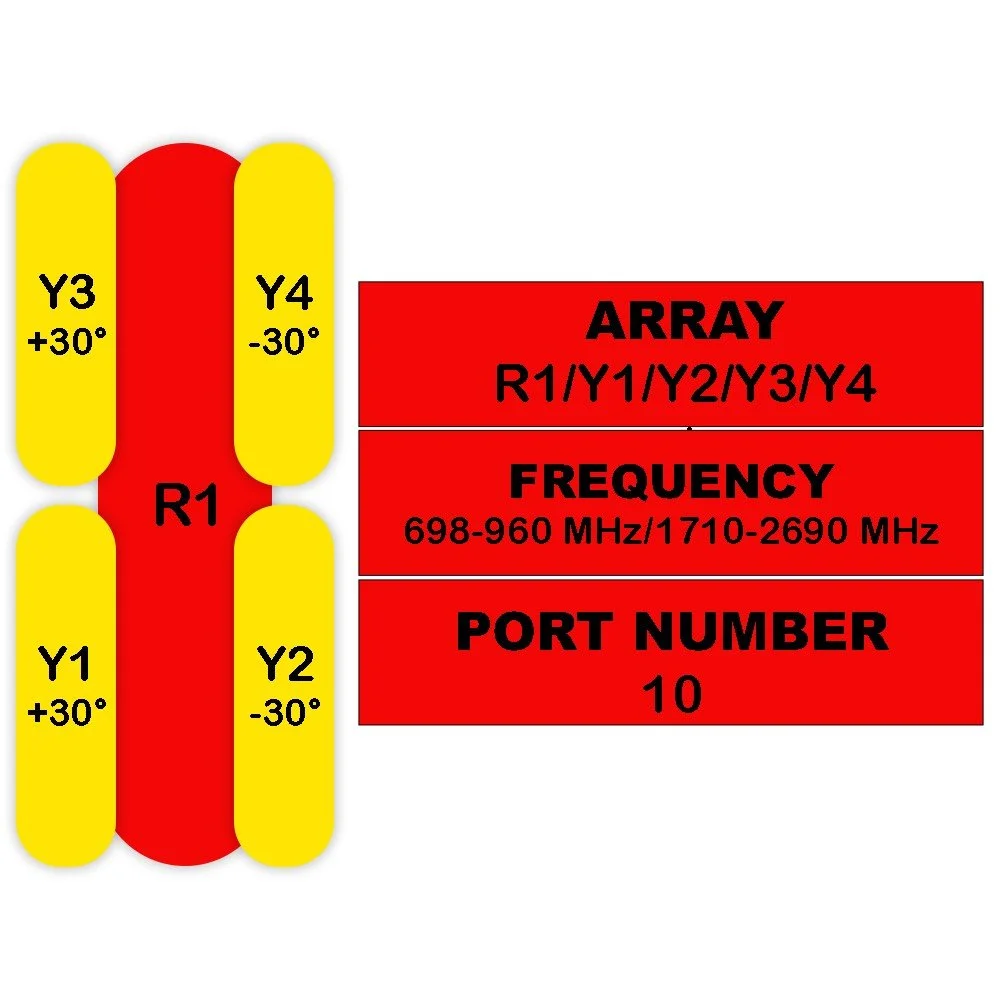

Azimuth Beam Centers degree 0 0 0 ±30 ±3 ±30 ±3 ±30 ±3
Vertical Beamwidth degree 8.5 ± 0.9 7.4 ± 0.7 6.8 ± 0.7 8.5 ± 0.9 7.2 ± 0.7 5.6 ± 0.6
Electrical Downtilt degree 2–10 2–10
Upper Side Lobe Suppression dB ≥15≥15≥15 ≥15≥15≥15
Front-to-Back Ratio dB ≥22≥23≥24 ≥25≥25≥25
Cross Polar (Boresight) dB ≥15≥15≥15 ≥15≥15≥15
Discrimination (Sector) dB ≥8≥8≥8 ≥8≥8≥8
Squint dB ≤3≤3≤3 ≤3≤3≤3
Isolation (Intraband) dB ≥25 ≥25
Isolation (Beam-to-Beam) dB — ≥28
Isolation (Interband) dB ≥28 ≥28
Impedance Ohm 50 50
VSWR — <1.5 <1.5
Return Loss dB >14 >14
PIM3 dBc <-150 <-150
Lightning Protection — DC Ground DC Ground
Max Input Power Watts 250 200
Mechanical Specifications
Mechanical Specifications
Parameter Sub Unit Value

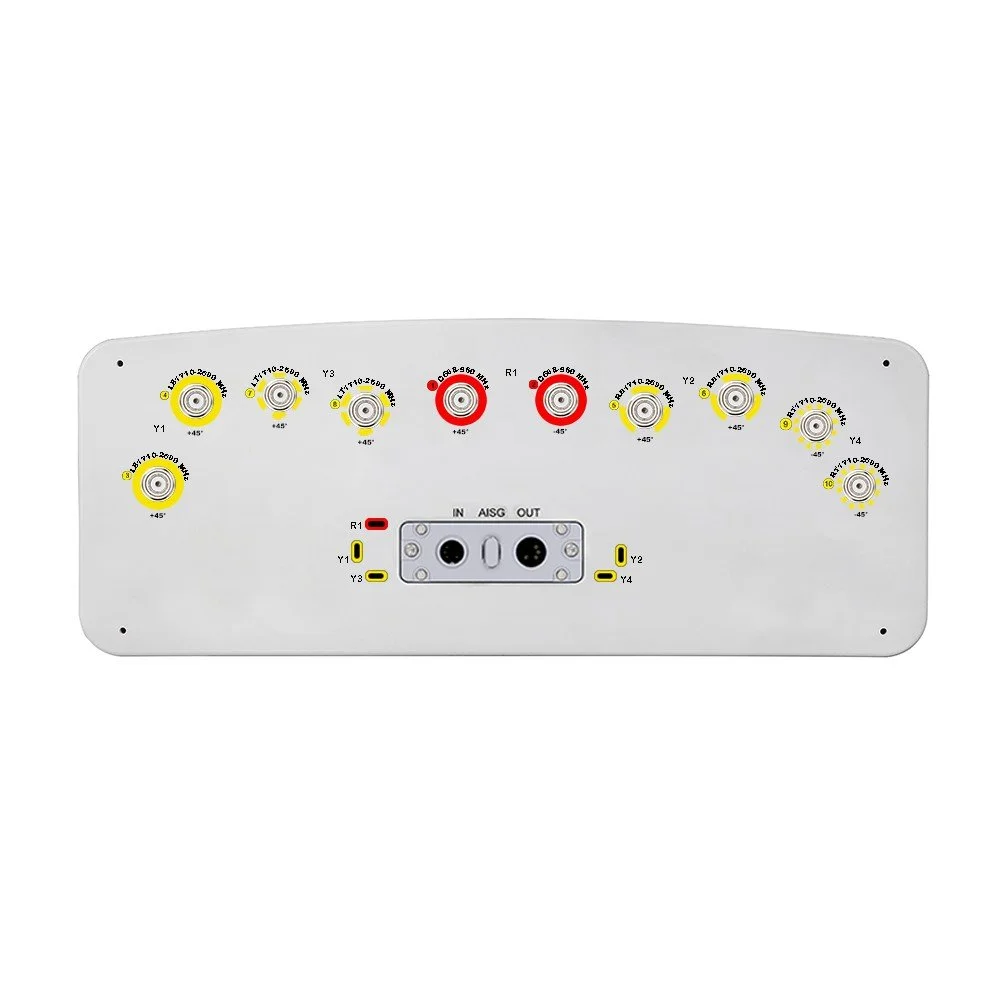

Connector Type——(10x) 4.3/10 Female
Connector Position——Bottom
Electrical Tilt Control——Integrated RET
Radome Material——Fiberglass

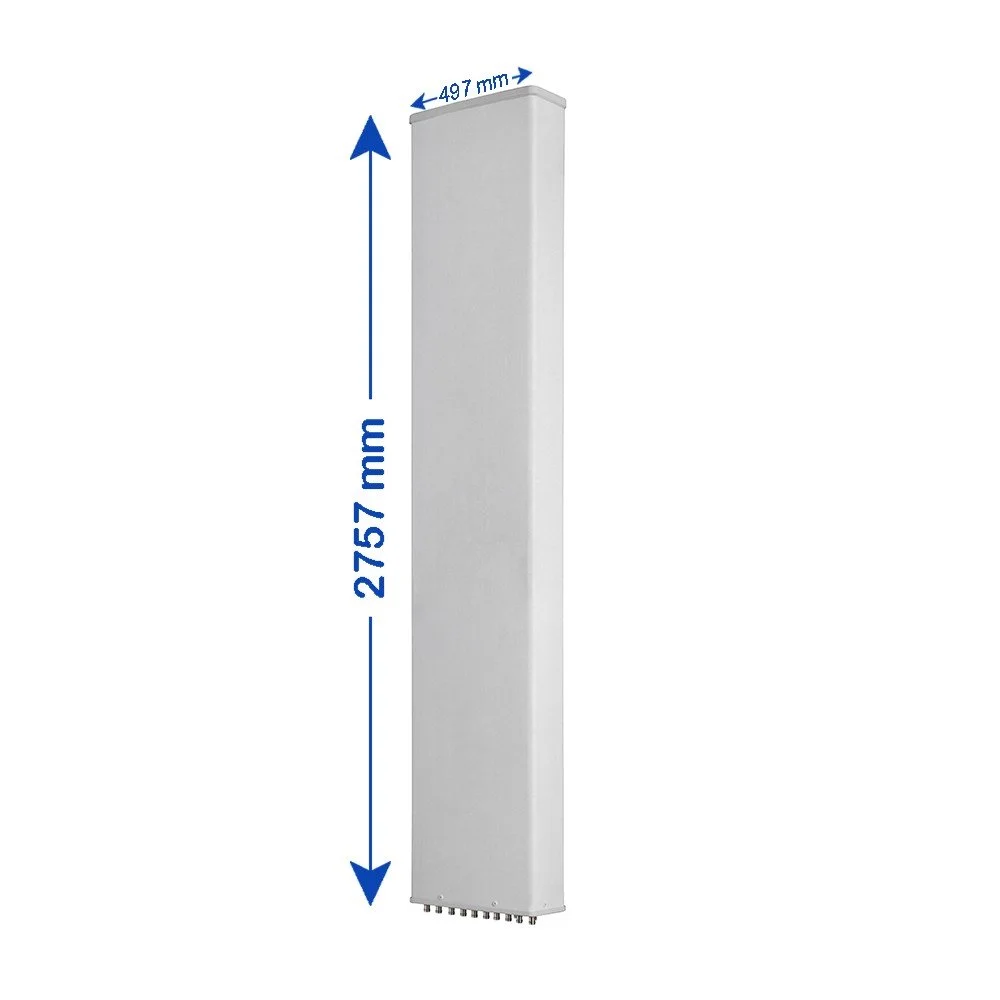

Dimensions (H×W×D)—mm (in)2757 × 497 × 197 (108.5 × 19.6 × 7.8)
WeightAntenna Onlykg (lbs)44 (97.0)
WeightWith Clampskg (lbs)51.5 (113.5)
Max Wind Speed—km/h (mph)200 (124.3)
Wind Load @150 km/hFrontalN (lbf)1265 (284.4)
Wind Load @150 km/hRearN (lbf)1415 (318.1)
Wind Load @150 km/hLateralN (lbf)620 (139.4)
Operating Temperature—°C (°F)-40 to +60 (-40 to +140)
