10-Port, Hybrid Panel Split-Beam Sector Antenna ( 698 - 2690 MHz )

₹0.00

10-Port Hybrid Panel Split‑Beam Sector Antenna (698–2690 MHz)

Overview : A next‑generation solution for high‑capacity, multi‑operator macro sites, the 10‑Port Hybrid Panel Split‑Beam Sector Antenna delivers broadband coverage across 698–2690 MHz with precision beam control and exceptional isolation. Designed for dense urban and suburban deployments, this antenna supports multiple input configurations and enables efficient spectrum reuse with reduced co‑site interference.

Key Features :

  • Frequency range: 698–2690 MHz (covering low‑band, mid‑band and extended PCS)

  • 10 independent RF ports for multi‑operator or multi‑sector sharing

  • Split‑beam technology: dual main beams per sector for improved azimuthal control

  • Hybrid panel design: combines broadband radiating elements with narrowbeam sections for optimized pattern shaping

  • High port isolation: minimizes inter‑port coupling for cleaner RF performance in shared installations

  • Low VSWR across the band: ensures efficient power transfer and consistent performance

  • Rugged outdoor enclosure: IP65/66 rated for reliable operation in harsh environments

  • Lightweight, low windload mechanical design for simple mounting and reduced structural cost

  • Wide electrical downtilt and mechanical tilt options for precise coverage shaping

  • Robust connector sealing and lightning protection features

10-Port Hybrid Panel Split‑Beam Sector Antenna (698–2690 MHz)

Overview : A next‑generation solution for high‑capacity, multi‑operator macro sites, the 10‑Port Hybrid Panel Split‑Beam Sector Antenna delivers broadband coverage across 698–2690 MHz with precision beam control and exceptional isolation. Designed for dense urban and suburban deployments, this antenna supports multiple input configurations and enables efficient spectrum reuse with reduced co‑site interference.

Key Features :

  • Frequency range: 698–2690 MHz (covering low‑band, mid‑band and extended PCS)

  • 10 independent RF ports for multi‑operator or multi‑sector sharing

  • Split‑beam technology: dual main beams per sector for improved azimuthal control

  • Hybrid panel design: combines broadband radiating elements with narrowbeam sections for optimized pattern shaping

  • High port isolation: minimizes inter‑port coupling for cleaner RF performance in shared installations

  • Low VSWR across the band: ensures efficient power transfer and consistent performance

  • Rugged outdoor enclosure: IP65/66 rated for reliable operation in harsh environments

  • Lightweight, low windload mechanical design for simple mounting and reduced structural cost

  • Wide electrical downtilt and mechanical tilt options for precise coverage shaping

  • Robust connector sealing and lightning protection features

Electrical Specifications for Multi-Band Antenna
Parameter Unit 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2500 2500–2690

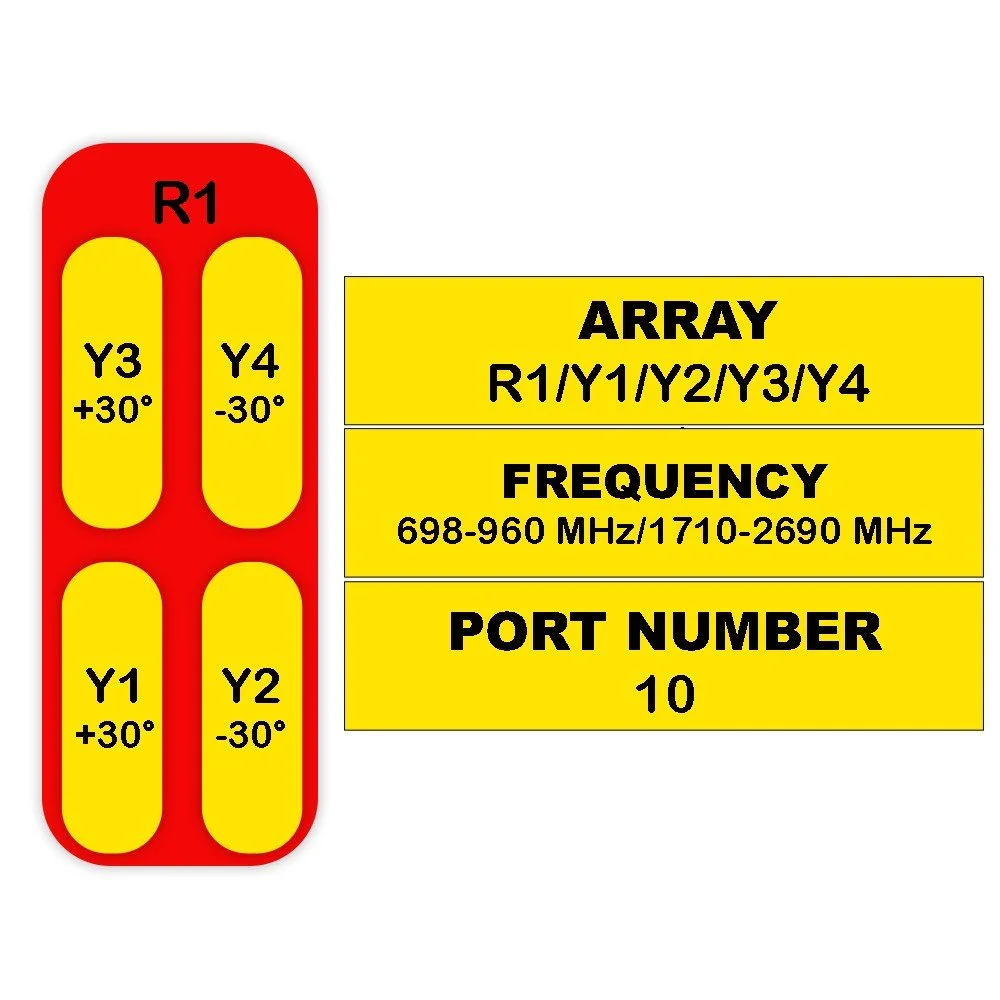

Model — R1 Y1 / Y2 / Y3 / Y4
Frequency Range MHz 698–960 1710–2690
Polarization — ±45° ±45°
Gain (Mid Tilt) dBi 15.7 16.4 16.7 18.9 19.6 20.1 20.5 20.3
Gain (All Tilts) dBi 15.7 ± 0.6 16.3 ± 0.6 16.6 ± 0.6 18.8 ± 0.6 19.5 ± 0.6 20.0 ± 0.6 20.4 ± 0.6 20.2 ± 0.7
Horizontal Beamwidth degree 70 ± 5 67 ± 5 65 ± 5 35 ± 3 33 ± 3 31 ± 3 27 ± 3 25 ± 3
Vertical Beamwidth degree 8.7 ± 0.8 7.5 ± 0.8 7.0 ± 0.7 7.7 ± 0.7 7.1 ± 0.7 6.7 ± 0.7 6.0 ± 0.6 5.5 ± 0.6
Electrical Downtilt degree 2–12 2–12
Upper Side Lobe Suppression dB >15>15>15 >15>15>15 >15>15
Front-to-Back Ratio (±30°) dB >23>24>24 >23>24>24 >25>25
Cross Polar Discrimination dB >15>15>15 >15>15>15 >15>15
Isolation (Intraband) dB >25 ≥25
Isolation (Beam-to-Beam) dB — ≥15
Isolation (Interband) dB >25 ≥25
Impedance Ohm 50 50
VSWR — <1.5 <1.5
Return Loss dB >14 >14
PIM3 (2×43 dBm) dBc <-150 <-150
Lightning Protection — DC Ground DC Ground
Max Input Power (50°C) Watts 250 200
Mechanical Specifications
Mechanical Specifications for Antenna
Parameter Sub-Category Unit Value

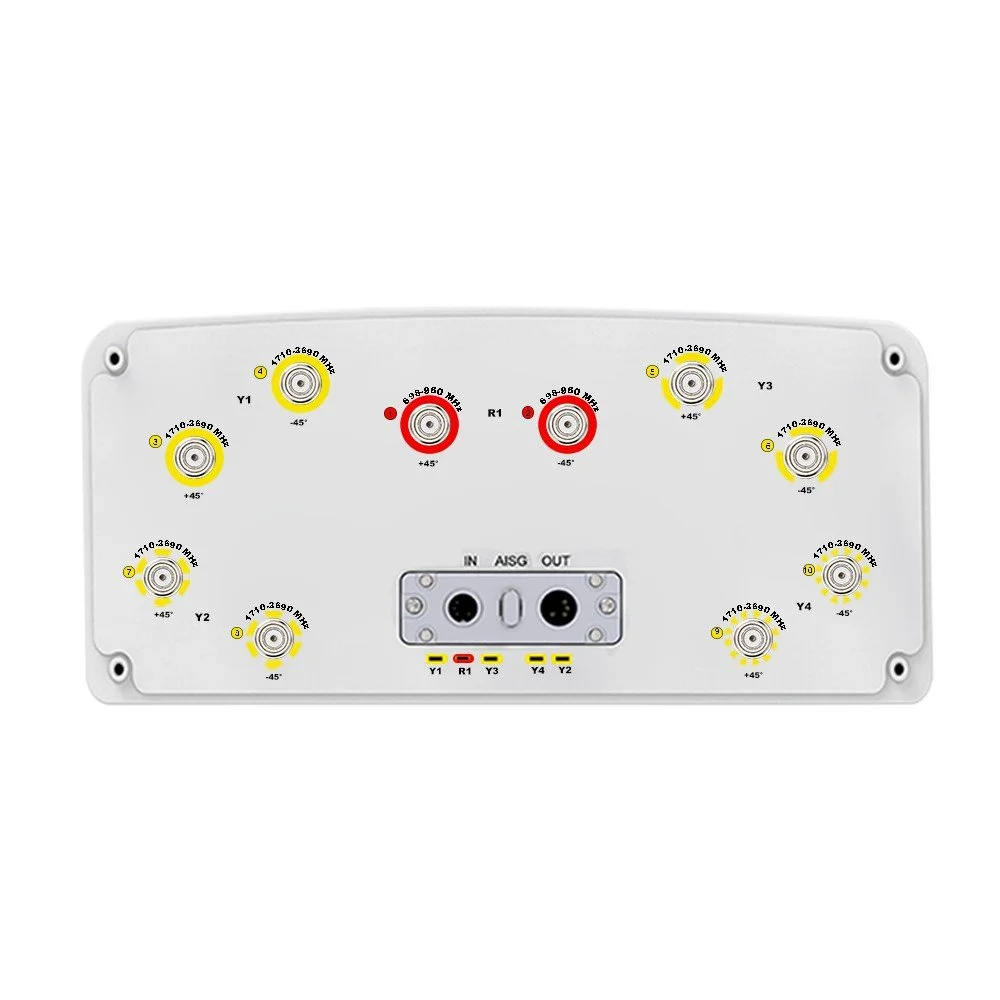

Connector Type — — (10x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — UPVC

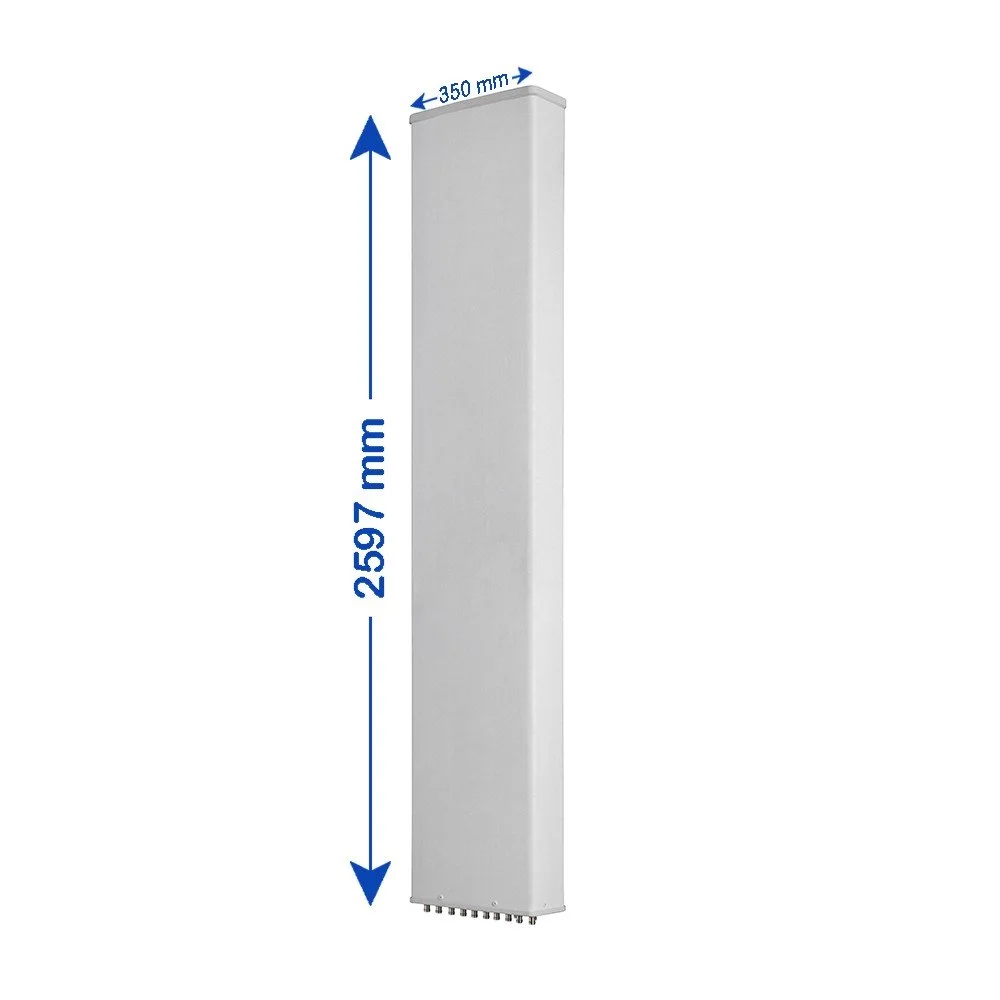

Antenna Dimensions (H × W × D) — mm (in) 2597 × 350 × 178 (102.2 × 13.8 × 7.0)
Antenna Weight Antenna Only kg (lbs) 30 (66.1)
Antenna Weight With Clamps kg (lbs) 34 (75.0)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load @150 km/h Frontal N (lbf) 840 (188.8)
Wind Load @150 km/h Rear N (lbf) 940 (211.3)
Wind Load @150 km/h Lateral N (lbf) 580 (130.4)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
