Product: 10‑Port Hybrid Panel Split‑Beam Sector Antenna Frequency Range: 698–2690 MHz
Overview :
A compact, high‑performance 10‑port hybrid panel sector antenna engineered for multi‑technology, multi‑operator cellular sites. Designed to support LTE, 3G/2G and legacy bands across 698–2690 MHz with optimized sectorization using split‑beam radiating arrays. Ideal for dense urban and suburban deployments requiring high capacity, flexible antenna mapping, and reduced site count.
Key Features :
Frequency: 698–2690 MHz (full coverage across low and mid cellular bands)

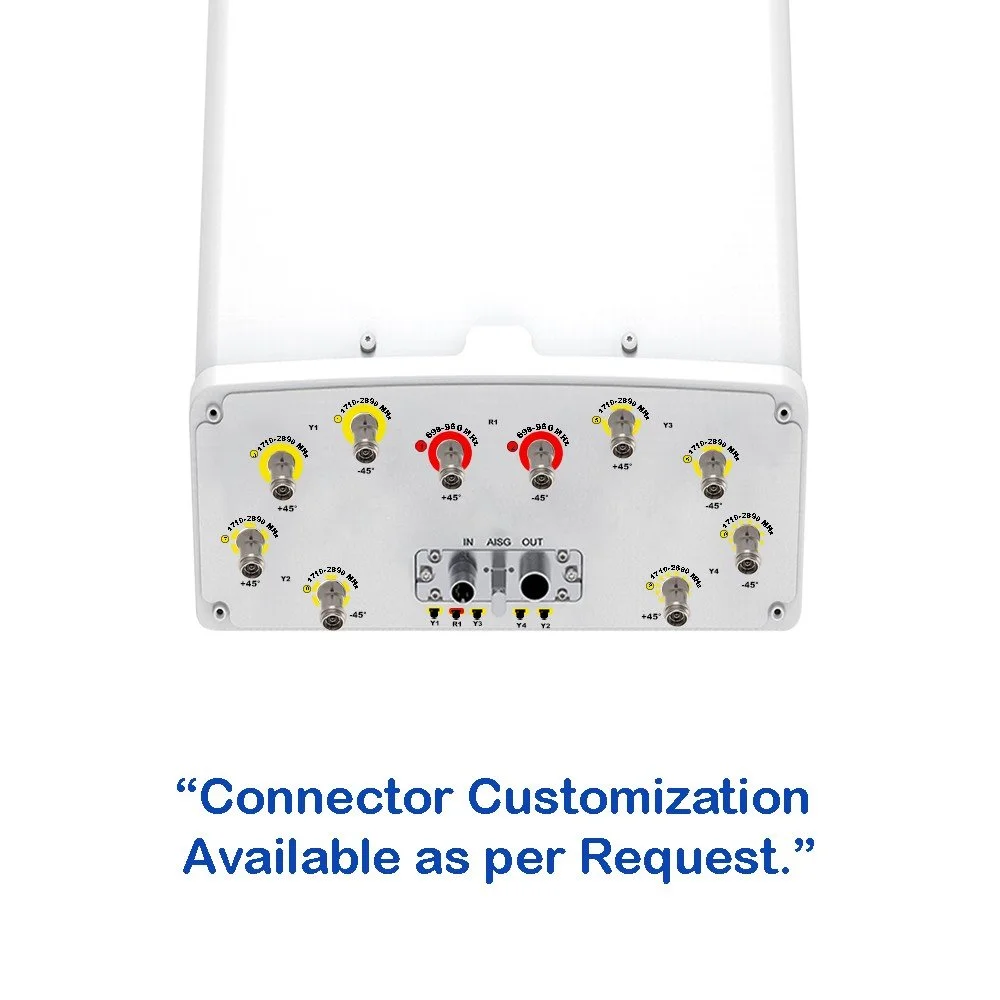

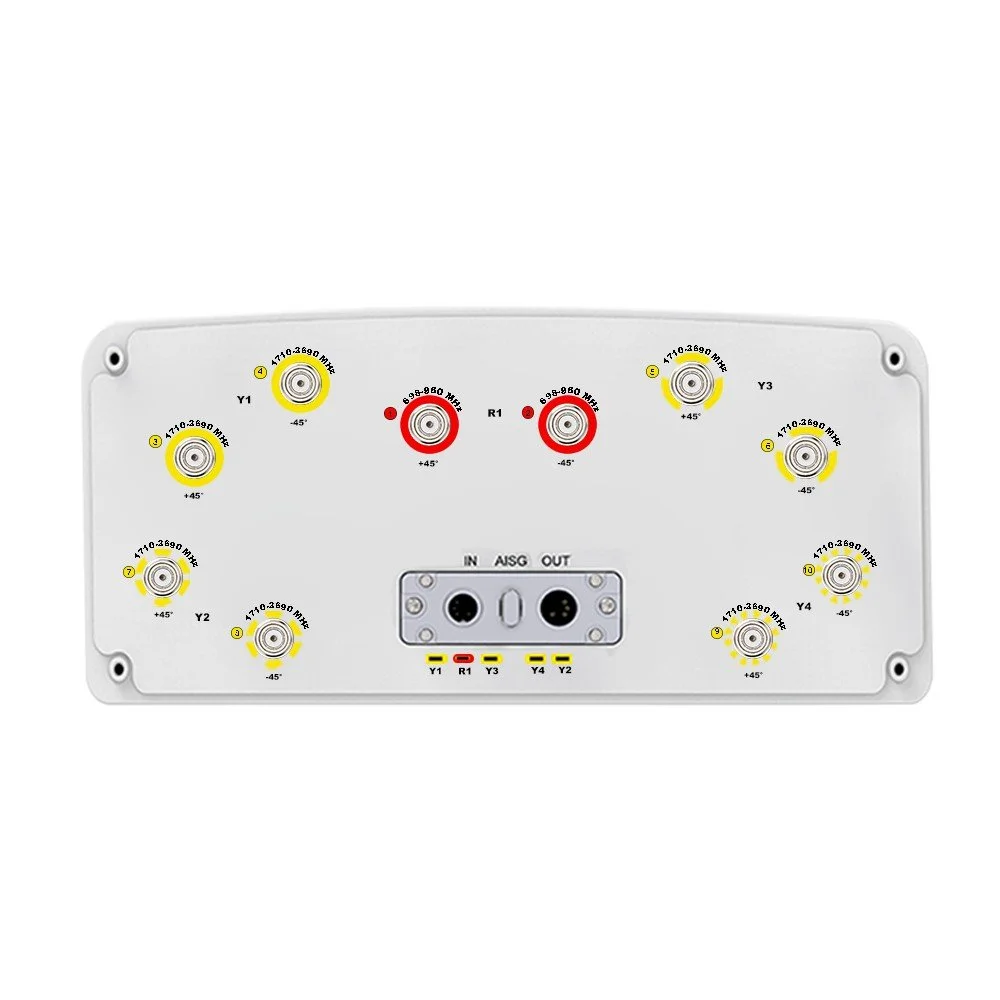

Ports: 10 independent RF ports for maximum flexibility (support for multiple MIMO and multi‑operator configurations)

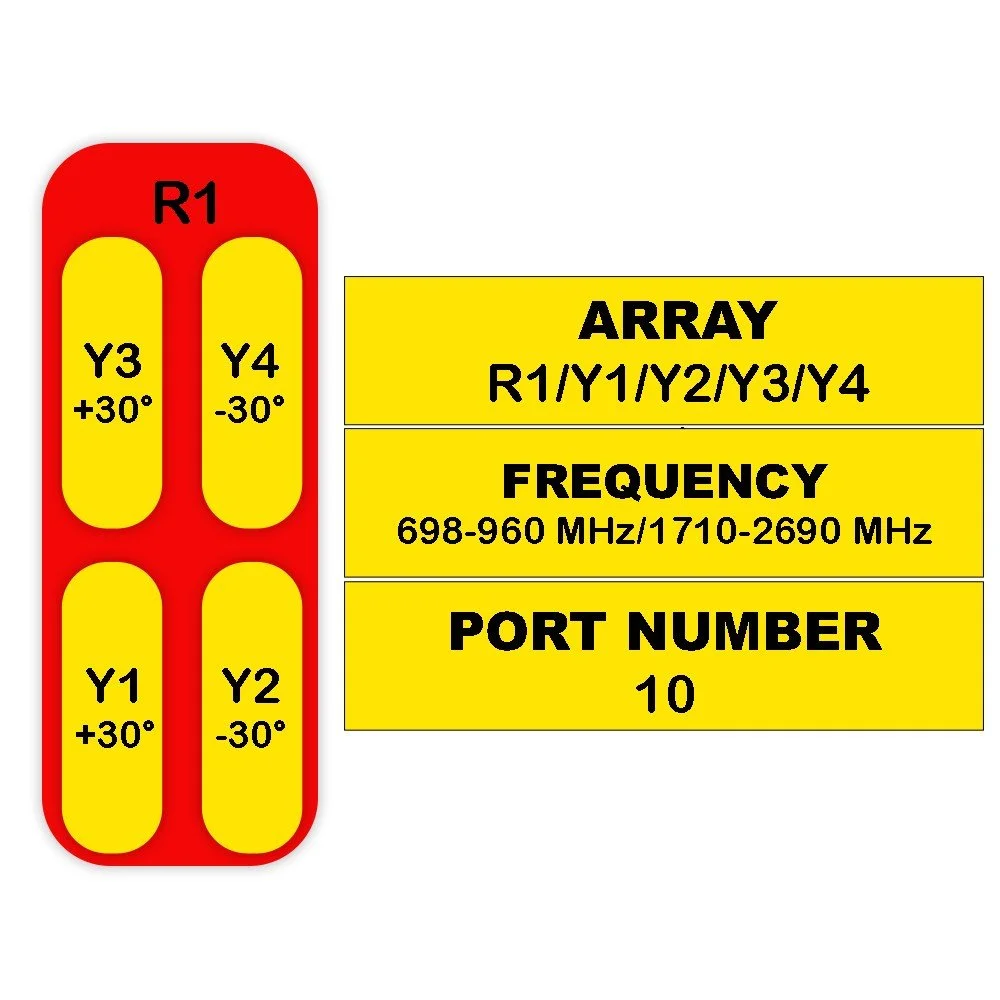

Hybrid split‑beam design: Combines sector main beam with secondary sub‑beams to enhance coverage shaping and interference control
Dual polarization options across ports for MIMO support
High gain and stable radiation patterns across bands to maximize signal strength and capacity
Integrated tilt: mechanical and optional electrical tilt support for optimized vertical coverage
Low inter‑port isolation loss and passive intermodulation (PIM) optimized components for reliable multi‑operator use

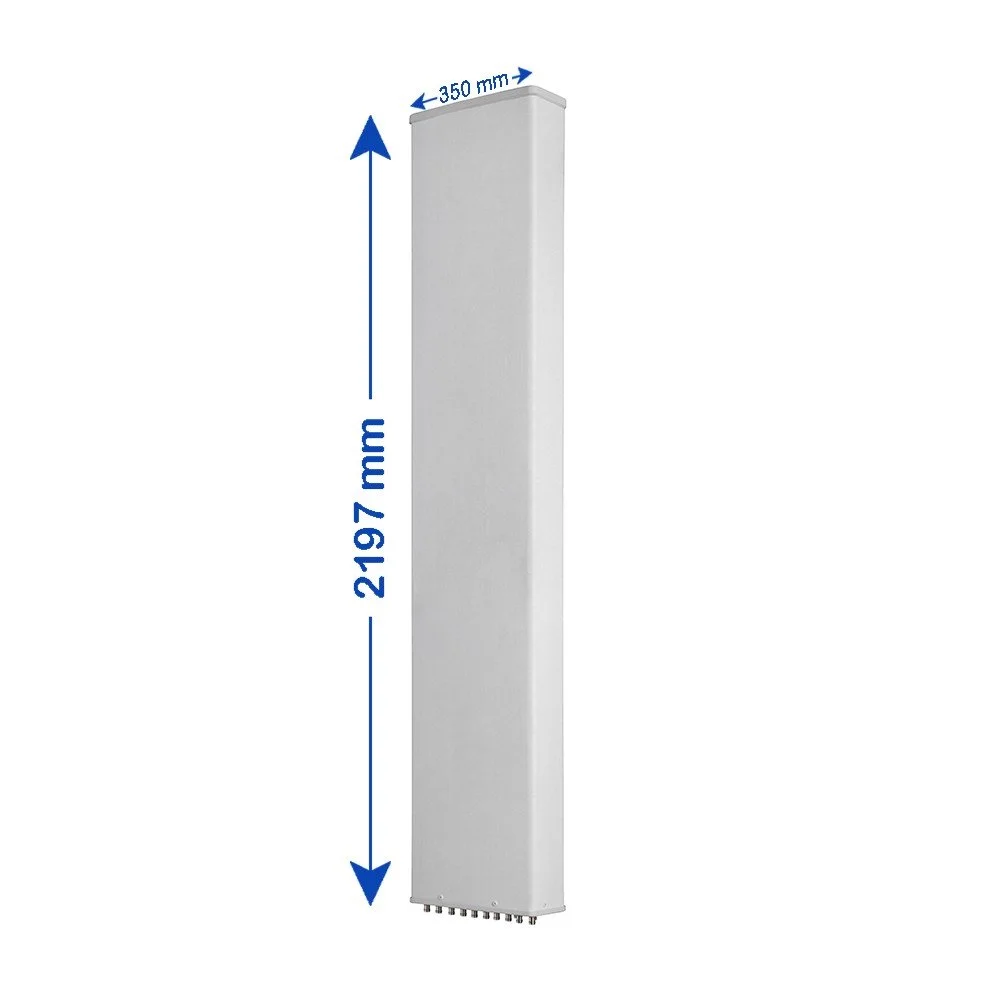

Compact form factor and lightweight radome for easier installation and reduced wind load
Ruggedized construction: corrosion‑resistant materials, UV stabilized radome, and high‑grade weatherproof seals
Wide operational temperature range and IP65/IP66 environmental rating

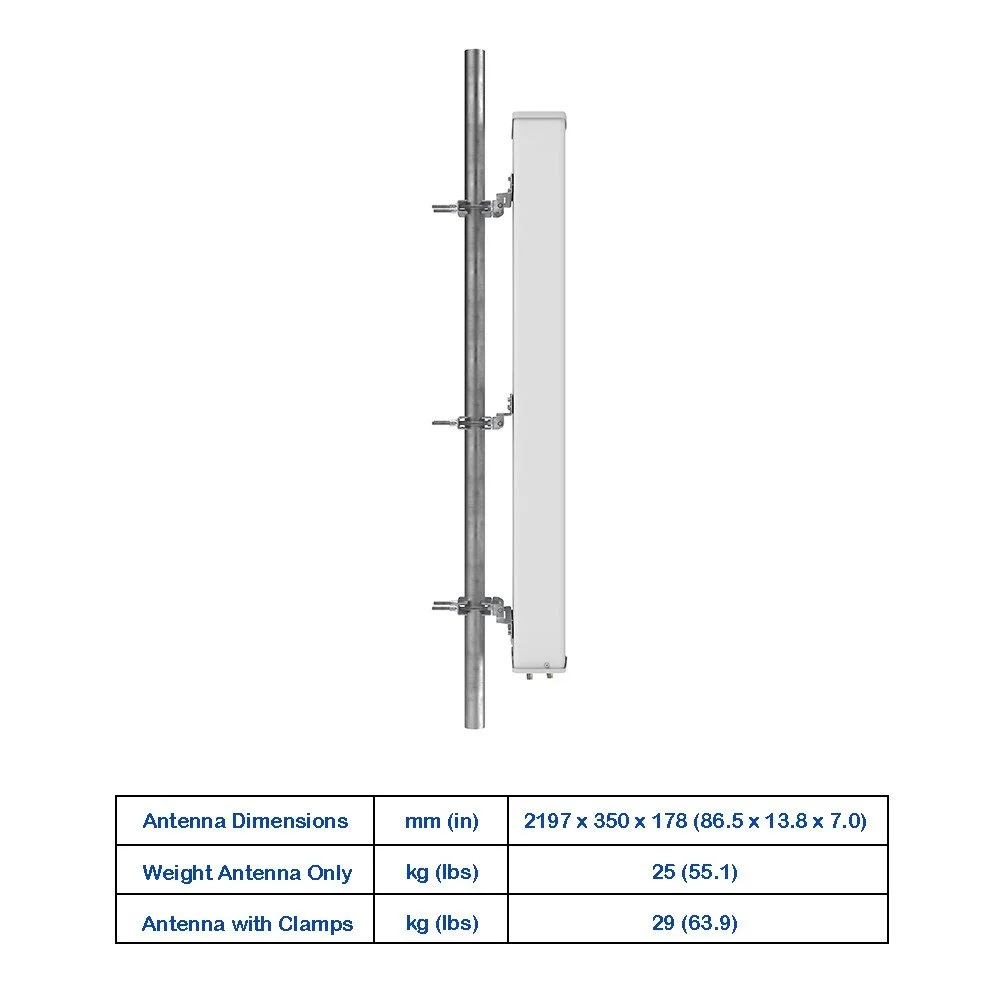

Mounting hardware included: pole and tower clamps with adjustable azimuth and elevation
