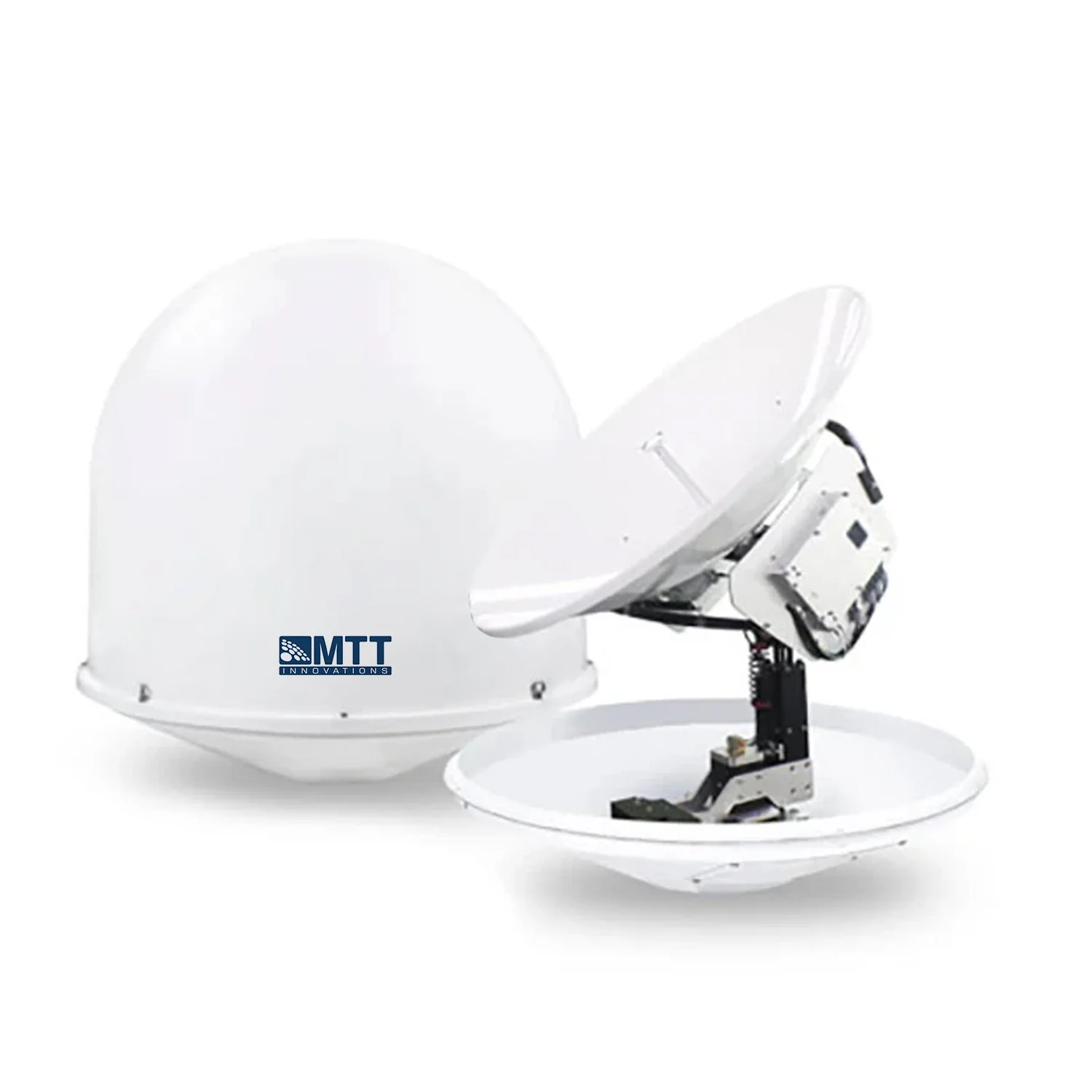

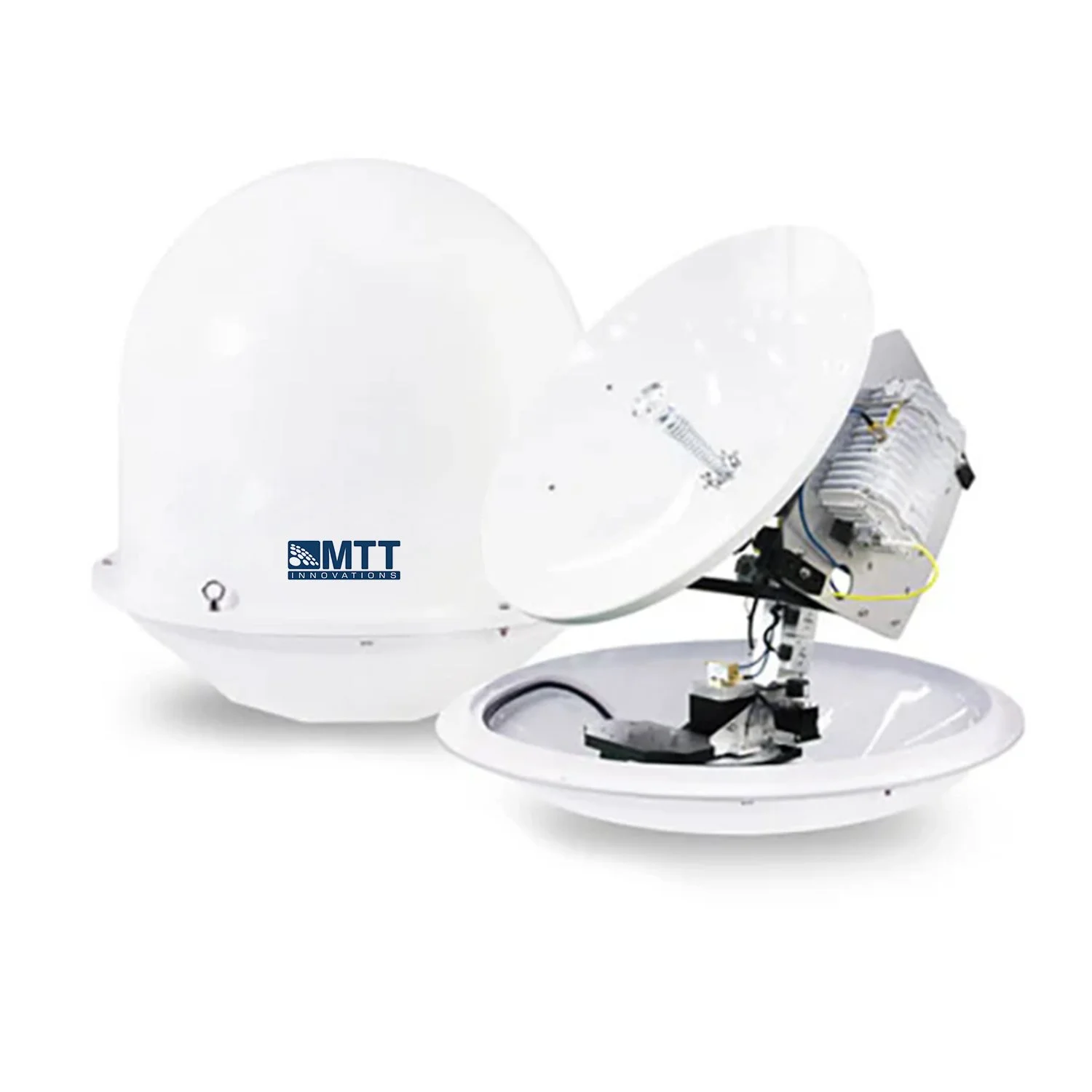

0.8 Meter Ku-Band Maritime Antenna

₹0.00

0.8 Meter Ku-Band Maritime Antenna

Introducing the cutting-edge 0.8 Meter Ku-Band Maritime Antenna, engineered to deliver superior satellite communication capabilities for vessels at sea. Designed with precision and built to endure harsh maritime environments, this antenna combines compactness with powerful performance.

  • High-Performance Ku-Band Reception: Optimized for Ku-Band satellite frequencies, ensuring strong, reliable signals for internet, voice, and data applications.

  • Compact 0.8 Meter Diameter: Small footprint ideal for a variety of vessel sizes, from small fishing boats to mid-sized commercial ships.

  • Robust Marine-Grade Construction: Corrosion-resistant materials and rugged design guarantee durability in challenging ocean conditions.

  • Advanced Tracking Technology: Integrated automatic tracking system maintains continuous satellite lock, even in rough seas, for uninterrupted connectivity.

  • Easy Installation and Integration: Designed for

0.8 Meter Ku-Band Maritime Antenna

Introducing the cutting-edge 0.8 Meter Ku-Band Maritime Antenna, engineered to deliver superior satellite communication capabilities for vessels at sea. Designed with precision and built to endure harsh maritime environments, this antenna combines compactness with powerful performance.

  • High-Performance Ku-Band Reception: Optimized for Ku-Band satellite frequencies, ensuring strong, reliable signals for internet, voice, and data applications.

  • Compact 0.8 Meter Diameter: Small footprint ideal for a variety of vessel sizes, from small fishing boats to mid-sized commercial ships.

  • Robust Marine-Grade Construction: Corrosion-resistant materials and rugged design guarantee durability in challenging ocean conditions.

  • Advanced Tracking Technology: Integrated automatic tracking system maintains continuous satellite lock, even in rough seas, for uninterrupted connectivity.

  • Easy Installation and Integration: Designed for
Antenna Specifications
Specification Value
Key Specifications
Antenna Aperture 0.83m
Band Ku-Band
Reflector Material FRP
Product Revision B
Antenna Specifications
ACU Size 19” Rack 1U size
Antenna Dimension 113 cm (D) x 117 cm (H)
Antenna Input Power 48V DC, 4.18A
Azimuth Range Unlimited
Cross Angle ± 35°
Elevation Angle -12° to +110°
External I/O RS-232C, Mini-USB, Ethernet, Console
Gyro Interface NMEA 0183, Synchro, Step by Step
Operating Platform 3 - Axis
Ship Motion Roll: ±24.7° at 8-12 sec periods; Pitch: ±15° at 6-12 sec periods; Yaw: ±8° at 15-20 sec periods
Tracking Speed More than 90°/sec
Vibration Damper Wire Rope Isolator, Shock Absorber and Rubber Damper include
RF Specifications
G/T 16.89 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, clear sky
Input Power 100 ~ 120V AC / 200 ~ 240V AC 50/60Hz, 8A/4A
Output VSWR 2.0 : 1 max.
Rx Frequency 10.75 - 12.75 GHz
Rx Gain 37.5 dBi @ 11.75 GHz
Tx Frequency 13.75 - 14.50 GHz
Tx Gain 39.1 dBi @ 14.25 GHz
Environmental Specifications
Humidity Up to 100% @ 40°C
Temperature Operational -20°C to +55°C
Physical Specifications
Antenna Weight 103 kg
Packed By Wooden Crate
Product Height Case 1 158 cm
Product Length Case 1 128 cm
Product Weight 189 kg
Product Width Case 1 128 cm
